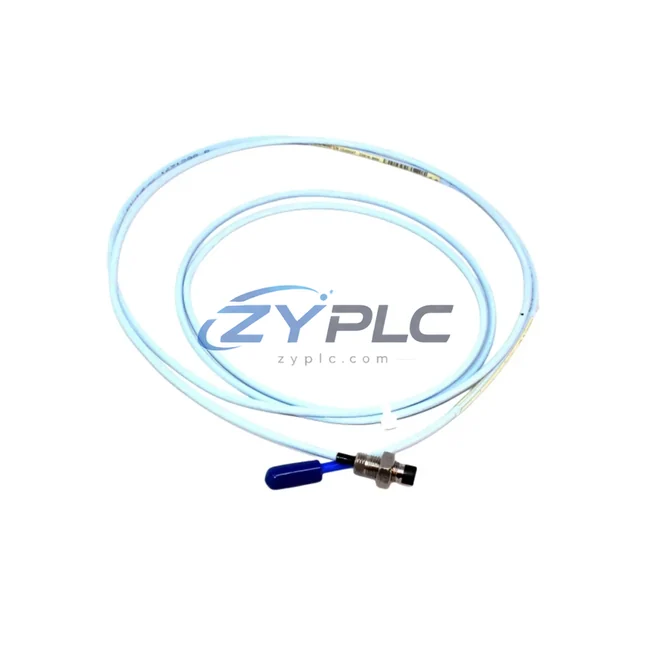

The Bently Nevada 330103-06-25-10-02-00 is an 8mm eddy-current proximity probe engineered as a core sensing element within the Bently Nevada 3300 XL continuous vibration monitoring system. Rather than functioning as a standalone transducer, this probe is designed to operate as an integral node within a layered industrial control architecture — delivering real-time shaft displacement, radial vibration, and axial position data to the supervisory control and data acquisition (SCADA) layer, distributed control system (DCS), or safety instrumented system (SIS) above it. Its role in the signal chain begins at the machine level and extends upward through the I/O layer, communication network, and ultimately to the human-machine interface (HMI) and historian platforms that govern plant-wide asset health decisions.

In modern rotating machinery protection systems, the integrity of the sensing layer directly determines the reliability of every upstream decision. The 330103-06-25-10-02-00 probe, when paired with the Bently Nevada 330130 extension cable and the 330180 proximitor/oscillator, forms a complete eddy-current measurement chain that feeds conditioned 4–20 mA or voltage signals into the 3300 XL monitor rack. This rack-based architecture — populated with modules such as the 3300/16 dual-channel monitor, 3300/20 relay module, and 3300/46 power supply — provides the signal processing, alarm management, and relay output functions required for turbine, compressor, pump, and motor protection in critical process environments.

Product Specification Table

System Compatibility Notes

The 330103-06-25-10-02-00 probe does not operate in isolation. Its value is realized only when it is correctly integrated into the full Bently Nevada 3300 XL system architecture. A complete measurement chain begins with the probe itself, continues through the Bently Nevada 330130-080-00-00 extension cable, and terminates at the Bently Nevada 330180-X1-05 proximitor/oscillator, which conditions the raw eddy-current signal into a calibrated DC voltage output. This conditioned signal is then routed into the 3300 XL monitor rack, where dual-channel monitor cards such as the 3300/16-02-01-01-00-00 process the vibration data, apply alarm setpoints, and generate relay outputs through the 3300/20 relay output module.

Power to the entire rack is supplied by the 3300/46 power supply module, which accepts 85–264 VAC input and delivers regulated -24 VDC to all installed monitor cards and proximitors. For applications requiring redundant power, dual power supply configurations are supported within the same rack chassis. The rack backplane provides the communication bus between all installed modules, ensuring synchronized data acquisition across all measurement channels.

At the network layer, the 3300 XL system communicates with the plant DCS or SCADA platform via the Bently Nevada 3500/92 communication gateway (where 3300 XL and 3500 systems coexist), supporting Modbus RTU, Modbus TCP/IP, and FOUNDATION Fieldbus protocols. This enables the vibration and position data captured by the 330103-06-25-10-02-00 probe to be displayed on operator HMI stations, logged in the plant historian, and acted upon by the safety instrumented system (SIS) if alarm thresholds are exceeded.

For plants operating mixed fleets of rotating machinery, the 330103-06-25-10-02-00 is frequently deployed alongside Bently Nevada 330104 series probes (14 mm format for larger shaft diameters) and 330905 series probes (for high-temperature applications), ensuring consistent measurement methodology across all critical assets. Terminal blocks, junction boxes, and field wiring are standardized to the 3300 XL system’s connector format, simplifying multi-machine installations and reducing commissioning time.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine protection systems, the 330103-06-25-10-02-00 is installed at the compressor inlet bearing, turbine journal bearing, and thrust bearing positions. Radial vibration and axial position data are continuously monitored by the 3300 XL rack, with relay outputs wired to the turbine control system’s emergency shutdown (ESD) logic. Any exceedance of vibration alarm setpoints triggers an automatic rundown sequence, protecting the turbine from catastrophic bearing failure.

Petrochemical and Refinery Applications: Centrifugal compressors in ethylene, ammonia, and LNG plants rely on continuous shaft monitoring to maintain API 670 compliance. The 330103-06-25-10-02-00 probe, installed per API 670 radial vibration measurement requirements, provides the real-time data necessary for the plant’s machinery management system to trend shaft centerline position, detect rotor instability, and schedule predictive maintenance outages before unplanned shutdowns occur.

Water and Wastewater Treatment: Large vertical turbine pumps and horizontal split-case pumps in water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing wear. The 3300 XL system’s compact rack format allows installation in motor control centers (MCCs) and local control panels, with 4–20 mA outputs integrated directly into the plant’s SCADA system for remote monitoring.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration environments. The 330103-06-25-10-02-00’s robust construction and wide operating temperature range make it suitable for installation in these demanding conditions, providing the continuous shaft displacement data required to protect high-value rotating assets and minimize unplanned downtime.

Metallurgy and Steel Production: Rolling mill drives, continuous caster pinch rolls, and blast furnace blower trains require reliable vibration monitoring to maintain production quality and equipment availability. Integration of the 3300 XL system into the plant’s Level 2 automation network enables centralized condition monitoring across multiple production lines from a single engineering workstation.

Product Compatibility FAQ

Q1: Is the 330103-06-25-10-02-00 compatible with both the 3300 XL and 3500 series monitor racks?
The 330103-06-25-10-02-00 probe and its associated 330180 proximitor are designed for the Bently Nevada 3300 XL system architecture. While the eddy-current measurement principle is shared with the 3500 series, the 3500 system uses its own dedicated probe and proximitor models (such as the 330730 and 330780 series). Cross-system use requires verification of signal conditioning compatibility. For mixed-fleet installations, consult the system architecture documentation to confirm correct probe-proximitor-monitor combinations before installation.

Q2: What are the commissioning and calibration requirements for this probe in a new installation?
Commissioning the 330103-06-25-10-02-00 requires gap setting to the manufacturer’s recommended linear range midpoint (typically 1.0–1.27 mm / 40–50 mil gap), verification of proximitor output voltage at the set gap, and confirmation of system sensitivity (7.87 V/mm nominal). The 3300 XL monitor card must be configured with the correct transducer type, full-scale range, and alarm setpoints per the machinery OEM’s vibration limits. All calibration records should be documented in the plant’s maintenance management system (CMMS) for future reference and API 670 compliance audits.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
All 330103-06-25-10-02-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Each unit is tested prior to shipment to verify electrical continuity, insulation resistance, and sensitivity within specification. This warranty supports long-term maintenance planning by providing a defined replacement horizon, reducing the risk of unplanned probe failures during the warranty period. For plants operating under predictive maintenance programs, ZYPLC also offers system integration support — assisting engineering teams in mapping probe data outputs to existing DCS historian tags, alarm management systems, and condition monitoring platforms.
