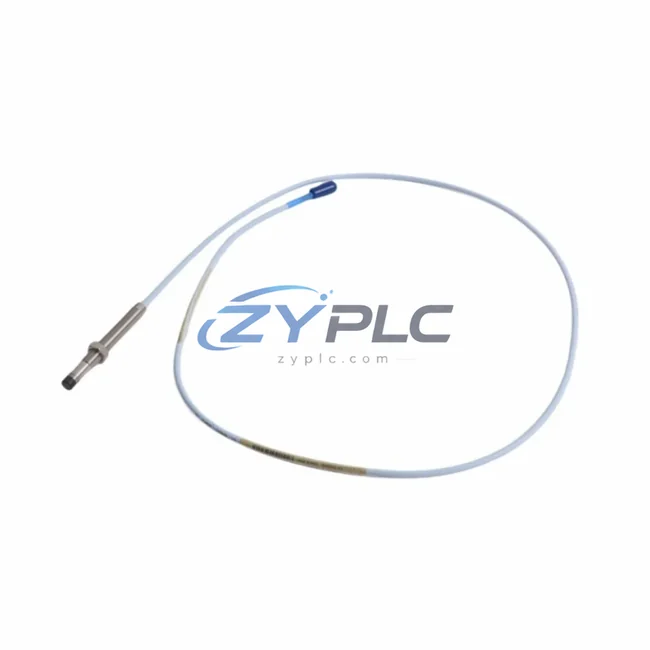

Bently Nevada 330103-10-12-05-11-05 Proximity Transducer for 3300 XL

Bently Nevada 330103-10-12-05-11-05 Proximity Transducer for 3300 XL

In modern industrial automation, the integrity of a vibration monitoring system depends not on any single component, but on the seamless coordination of every layer within the control architecture. The Bently Nevada 330103-10-12-05-11-05 proximity transducer is engineered as a system-compatible element within the 3300 XL Series platform — a platform trusted across rotating machinery protection systems in power generation, petrochemical processing, oil and gas compression, and heavy industrial manufacturing. This transducer does not operate in isolation; it functions as the primary sensing node in a layered architecture that spans from the machine shaft to the control room display, delivering continuous, high-fidelity displacement and vibration data that drives real-time protection decisions.

The 330103-10-12-05-11-05 is a 25 mm proximity transducer designed for eddy-current non-contact measurement of radial shaft vibration, axial position, and differential expansion. Its integration into the 3300 XL system architecture ensures signal compatibility with the full range of 3300 XL series monitors, extension cables, and signal conditioning modules, enabling engineers to build complete, validated measurement chains without cross-platform compatibility concerns. When deployed alongside the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, the 330103-10-12-05-11-05 forms a calibrated transducer system that meets API 670 requirements for machinery protection.

Product Specification Table

System Compatibility Notes

The 330103-10-12-05-11-05 achieves its full value when integrated within a coordinated 3300 XL system architecture. At the sensing layer, this transducer pairs directly with the Bently Nevada 3300 XL Proximitor Sensor (330180-X1-05), which conditions the raw eddy-current signal into a calibrated analog voltage suitable for monitor input. The extension cable — typically the Bently Nevada 330130-045-00-00 — bridges the transducer to the Proximitor, maintaining signal integrity across the distance from the machine casing to the junction box or marshalling panel.

At the monitor layer, the conditioned signal feeds into the Bently Nevada 3300/16 Dual Voting Logic Monitor or the 3300/25 Keyphasor Module, depending on the measurement function. For radial vibration protection on critical rotating equipment, the monitor processes the displacement signal against configurable alert and danger setpoints, triggering relay outputs to the machine protection relay panel or directly to the DCS safety layer. In redundant architectures, dual-channel monitor cards such as the 3300/20 Radial Vibration Monitor provide 1oo2 or 2oo2 voting logic, ensuring that no single sensor failure causes a spurious trip or, conversely, allows a genuine fault to go undetected.

At the communication and integration layer, the 3300 XL system connects to plant-level SCADA or DCS platforms — including systems built on Rockwell Automation ControlLogix or Emerson DeltaV — via Modbus RTU, Modbus TCP/IP, or the System 1 software platform. The Bently Nevada System 1 Evolution software aggregates vibration, position, and process data from multiple 3300 XL racks, enabling fleet-wide condition monitoring and predictive maintenance scheduling from a centralized engineering workstation.

At the power layer, the 3300 XL rack is supplied by a dedicated 3300/05 Power Supply Module, which provides regulated 24 VDC to all monitor cards and Proximitor sensors within the rack. Redundant power supply configurations — using dual 3300/05 modules with automatic switchover — eliminate power-related single points of failure in critical machinery protection applications. The backplane of the 3300 XL rack distributes both power and communication signals to all installed modules, ensuring that the addition or replacement of any module, including the transducer system anchored by the 330103-10-12-05-11-05, does not interrupt the operation of adjacent channels.

Industrial Application Notes

The Bently Nevada 330103-10-12-05-11-05 proximity transducer is deployed across a wide range of industrial sectors where rotating machinery protection is critical to operational continuity and personnel safety.

In power generation, this transducer monitors radial shaft vibration on steam turbines, gas turbines, and generator rotors. Continuous displacement measurement enables early detection of rotor imbalance, bearing wear, and misalignment — conditions that, if undetected, can lead to catastrophic machinery failure and extended unplanned outages. The 3300 XL system’s fast response time and high-frequency bandwidth ensure that transient vibration events are captured and acted upon before damage propagates.

In petrochemical and refinery applications, the 330103-10-12-05-11-05 is installed on centrifugal compressors, process pumps, and agitators operating in hazardous area classifications. The transducer’s non-contact measurement principle eliminates mechanical wear at the sensing point, making it suitable for continuous operation in high-temperature, high-pressure process environments where maintenance access is restricted.

In oil and gas compression, reciprocating and centrifugal compressor trains rely on the 3300 XL architecture to monitor shaft position and vibration across multiple bearing planes simultaneously. The system’s multi-channel rack architecture allows a single 3300 XL enclosure to monitor an entire compressor train — from the driver through the gearbox to the compressor stages — using a consistent measurement platform and a unified engineering interface.

In water treatment and municipal infrastructure, large pump stations and blower systems benefit from the 330103-10-12-05-11-05’s ability to detect early-stage bearing degradation, enabling condition-based maintenance scheduling that reduces unplanned downtime and extends equipment service life. The warranty terms confirmed during quotation provided with every unit ensures that infrastructure operators can plan maintenance budgets with confidence, knowing that warranty coverage extends through the initial commissioning and operational validation period.

Product Compatibility FAQ

Q1: Is the 330103-10-12-05-11-05 compatible with existing 3300 XL monitor cards and Proximitor sensors already installed in my rack?
Yes. The 330103-10-12-05-11-05 is a standard 3300 XL series 25 mm proximity transducer and is fully compatible with all 3300 XL Proximitor sensors and monitor cards. The transducer, extension cable, and Proximitor form a calibrated system; when replacing a transducer in an existing installation, ensure that the replacement transducer, extension cable, and Proximitor are all from the same 3300 XL calibrated system set to maintain scale factor accuracy. No firmware changes or monitor reconfiguration are required when replacing a like-for-like transducer within the same system.

Q2: Can this transducer be integrated into a redundant machinery protection architecture, and what configuration is recommended for critical rotating equipment?
Yes. For critical rotating equipment such as steam turbines and centrifugal compressors, a dual-transducer, dual-channel monitor configuration is recommended. Two 330103-10-12-05-11-05 transducers are installed at 90° to each other (X and Y planes) at each bearing location, each connected to a separate monitor channel. The 3300 XL monitor cards support 1oo2 voting logic, ensuring that a single transducer failure does not cause a spurious trip while still providing full protection against genuine vibration faults. This configuration aligns with API 670 requirements for critical machinery protection systems.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for 3300 XL system components?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. ZYPLC maintains dedicated inventory of 3300 XL series components — including proximity transducers, extension cables, Proximitor sensors, and monitor cards — to support both immediate replacement needs and long-term spare parts programs. For customers managing aging 3300 XL installations, ZYPLC provides system integration support, helping engineers identify compatible replacement components and validate system configurations before shipment. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for system-level procurement support.
