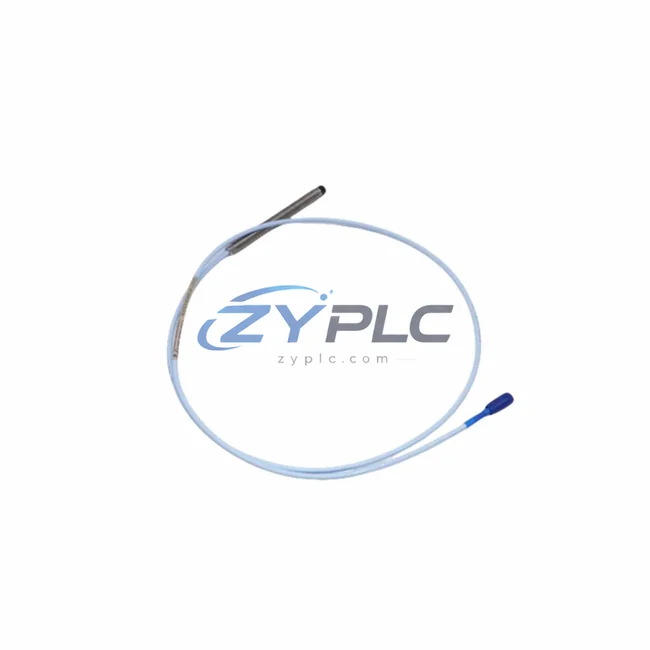

Bently Nevada 330103-10-15-10-02-05 Probe for 3300

Bently Nevada 330103-10-15-10-02-05 Proximity Probe for 3300 Series

The Bently Nevada 330103-10-15-10-02-05 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 Series machinery monitoring architecture. Designed for continuous radial vibration and position measurement, this probe serves as a critical sensing element in layered condition monitoring systems deployed across power generation, petrochemical processing, water treatment, and heavy manufacturing environments. Its role within the broader control and protection hierarchy ensures that rotating equipment health data flows reliably from the field sensing layer through signal conditioning, system monitoring, and ultimately to distributed control or safety instrumented systems.

Product Specification Table

System Compatibility Notes

Within a complete Bently Nevada machinery protection architecture, the 330103-10-15-10-02-05 proximity probe operates as the primary field sensing device that feeds critical displacement data into the signal conditioning layer. The probe connects directly to the 330180-X1-05 Proximitor module, which converts the raw eddy-current signal into a calibrated voltage output proportional to the gap between the probe tip and the rotating target surface. This conditioned signal is then routed to the 3300/20 Dual Vibration Monitor for threshold comparison, alarm generation, and machine trip logic execution.

In a typical turbine-generator monitoring configuration, multiple 330103-series probes are deployed in X-Y pairs at each bearing location, working in concert with the 330105-02-12-05-02-05 and 330106-05-30-05-02-05 probes to provide comprehensive shaft orbit and centerline position data. The 3300/25 Keyphasor Module provides phase reference signals that synchronize vibration vectors across all measurement points, enabling advanced diagnostics such as balance calculations, alignment verification, and modal analysis within the same rack infrastructure.

The architectural strength of this configuration lies in its layered redundancy. At the sensing layer, dual probes per measurement plane ensure that a single probe failure does not compromise machine protection. At the monitoring layer, the 3300/65 Temperature Monitor and 3300/16 Dual Thrust Position Monitor complement vibration data with thermal and axial displacement information, creating a multi-parameter protection envelope. The 3300/55 Speed Monitor provides overspeed protection that integrates with the same backplane infrastructure, ensuring consistent power distribution and communication timing across all monitoring channels.

Signal integrity from the 330103-10-15-10-02-05 probe through the entire monitoring chain depends on proper cable routing, shield grounding, and extension cable selection. The 330130-080-01-05 standard extension cable maintains impedance matching between the probe and proximitor, preserving measurement accuracy across the full linear range. For installations requiring longer cable runs, the system architecture accommodates junction boxes and intermediate termination panels without degrading signal quality, provided total cable length remains within the proximitor calibration envelope.

At the system integration layer, data from the 3300 monitors communicates upstream via Modbus RTU or TCP/IP to the plant distributed control system, historian databases, and Bently Nevada System 1 condition monitoring software. This system integration enables predictive maintenance workflows where vibration trend data, combined with process parameters from the DCS, supports root cause analysis and maintenance scheduling decisions that extend mean time between failures across the entire rotating equipment fleet.

Industrial Application Notes

In power generation facilities, the 330103-10-15-10-02-05 probe monitors steam turbine and gas turbine bearing housings where shaft displacement directly correlates with bearing wear, rotor imbalance, and alignment degradation. The probe’s operating temperature range supports installation on high-temperature casings adjacent to bearing pedestals, while the armored cable construction resists mechanical damage in congested turbine deck environments.

Petrochemical and refinery applications deploy this probe on centrifugal compressors, pumps, and expander-generators where API 670 mandates continuous radial vibration monitoring with machine protection capability. The 3300 system architecture satisfies API requirements for dual-channel redundancy, voted trip logic, and independent alarm and danger setpoints that protect critical process equipment from catastrophic failure.

In mining and mineral processing, large SAG mills, ball mills, and crusher drives benefit from proximity probe monitoring that detects bearing deterioration before catastrophic failure occurs. The robust construction of the 330103-series probes withstands the high vibration, dust, and moisture conditions typical of mineral processing environments while maintaining measurement stability over extended service intervals.

Water treatment and municipal infrastructure applications utilize these probes on blower systems, large pump stations, and aeration equipment where continuous operation is essential for regulatory compliance. The system architecture supports remote monitoring via networked communication, enabling centralized condition monitoring of geographically distributed assets from a single operations center.

Across all applications, the 330103-10-15-10-02-05 probe delivers consistent measurement performance that supports both machine protection and predictive maintenance strategies. Its compatibility with the broader 3300 and 3500 monitoring platforms ensures that initial installations can scale from basic vibration monitoring to comprehensive machinery health management as operational requirements evolve.

Product Compatibility FAQ

Q1: What signal conditioning module is required for the 330103-10-15-10-02-05 probe in a 3300 system rack?

The probe requires a 330180-X1-05 Proximitor sensor for signal conditioning. The proximitor converts the eddy-current signal to a voltage output compatible with 3300/20 or 3300/25 monitor inputs. Ensure the proximitor calibration matches the probe serial number for optimal linearity across the measurement range. All components are covered by our warranty terms confirmed during quotation.

Q2: Can this probe be integrated into an existing 3500 monitoring system alongside 3300 series monitors?

Yes. The 330103-10-15-10-02-05 probe is electrically compatible with both 3300 and 3500 series proximitors. In hybrid architectures, the probe signal can be routed to either platform depending on available rack space and communication requirements. The 3500/22M Transient Data Interface and 3500/42M Proximitor Monitor accept the same probe configurations, enabling phased migration from 3300 to 3500 architecture without replacing field sensing devices.

Q3: What maintenance and inspection intervals are recommended for long-term reliability in continuous service?

Recommended inspection intervals include annual gap verification using a certified target fixture, cable continuity checks every six months, and visual inspection of the probe tip for contamination or mechanical damage during scheduled outages. The probe carries a warranty terms confirmed during quotation from ZYPLC covering manufacturing defects and premature degradation under normal operating conditions. Replacement probes and extension cables are maintained RFQ Available for rapid deployment during planned maintenance windows.
