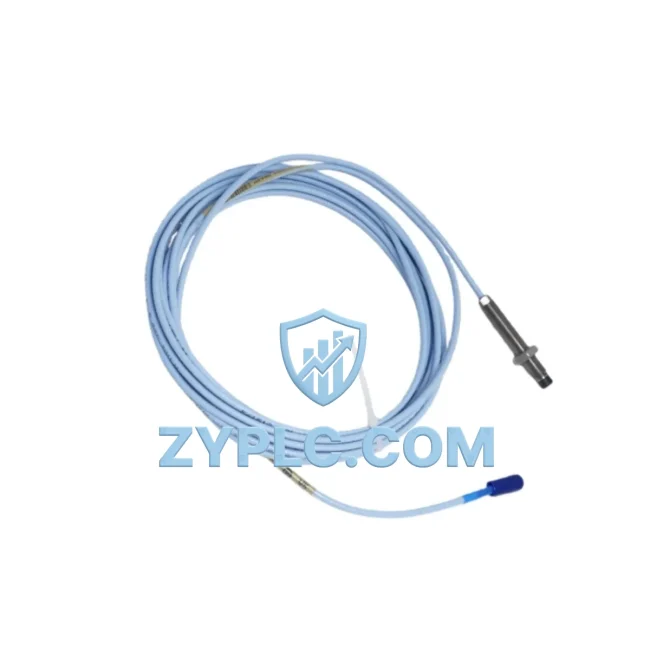

Bently Nevada 330103-10-18-50-01-00 Proximity Probe 3300

Bently Nevada 330103-10-18-50-01-00 Energy-Saving Proximity Probe for Optimized 3300 Series Automation

The Bently Nevada 330103-10-18-50-01-00 is a high-precision eddy-current proximity probe engineered for the 3300 Series continuous machinery monitoring system. Designed for turbomachinery, compressors, pumps, and rotating equipment in energy-intensive industrial environments, this probe delivers real-time shaft vibration and position data that directly supports energy-efficient machine operation, predictive maintenance scheduling, and optimized production line throughput. By continuously feeding accurate displacement signals into the control loop, the 330103-10-18-50-01-00 enables plant operators to eliminate unnecessary energy consumption caused by mechanical imbalance, misalignment, and bearing degradation before these conditions escalate into costly failures.

In modern industrial automation architectures, energy waste is rarely caused by a single component failure — it accumulates silently through inefficient motor loading, undetected rotor imbalance, and reactive maintenance cycles. The 330103-10-18-50-01-00 addresses this at the source by providing the continuous, high-resolution position feedback that allows the 3300 Series monitoring system to detect sub-millimeter shaft excursions, correlate them with process variables, and trigger corrective actions before energy losses compound. When integrated with a Bently Nevada 3500 Series rack or a 3300 XL 8mm proximity transducer system, the probe forms the sensing backbone of a complete condition-based energy management strategy.

Facilities running variable-speed drives such as the Rockwell PowerFlex 755 or Siemens SINAMICS G120 benefit significantly from pairing these drives with accurate proximity feedback. Without reliable shaft position data, VFDs cannot be tuned to their optimal operating points, resulting in excess motor current draw and elevated energy consumption across the production line. The 330103-10-18-50-01-00 closes this feedback gap, enabling drive systems to maintain target operating speeds with minimal energy overhead.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 330103-10-18-50-01-00 proximity probe is rarely deployed in isolation. Its true energy optimization value emerges when it operates as part of a layered industrial automation architecture. In a typical turbomachinery protection and efficiency system, the probe connects to a Bently Nevada 3300 XL proximitor/driver, which conditions the raw eddy-current signal into a calibrated voltage output readable by the 3500 Series monitoring rack. The 3500 rack then processes vibration, position, and speed data in real time, feeding alarm and trip signals to the plant DCS or safety PLC — commonly a Rockwell Automation ControlLogix L7x or a Siemens S7-400H redundant controller.

On the drive side, the shaft position data from the 330103-10-18-50-01-00 informs the operating setpoints of variable frequency drives. When a compressor shaft begins to exhibit elevated vibration amplitudes — a leading indicator of aerodynamic instability or bearing wear — the VFD can be commanded to reduce speed, lowering motor current and preventing the energy spike that accompanies a surge event. This closed-loop interaction between proximity sensing and drive control is one of the most effective energy conservation strategies available in rotating equipment management.

For power quality monitoring, the probe system integrates with energy metering modules such as the Schneider Electric PowerLogic ION7650 or the ABB M2M energy analyzer, allowing plant engineers to correlate mechanical condition data with real-time power consumption trends. When vibration levels rise, power draw typically follows — and the 330103-10-18-50-01-00 provides the early warning that allows corrective action before energy costs escalate.

On the I/O and communications layer, the 3500 Series rack outputs data via Modbus TCP, PROFIBUS DP, or OPC-UA, enabling seamless integration with SCADA platforms and MES systems. This connectivity allows the proximity probe data to feed into plant-wide energy dashboards, where it contributes to KPIs such as Overall Equipment Effectiveness (OEE), specific energy consumption per production unit, and mean time between failures (MTBF). HMI terminals running on platforms such as the Siemens SIMATIC TP1500 or Rockwell PanelView Plus 7 can display real-time vibration trends alongside energy consumption data, giving operators a unified view of machine health and energy performance.

In multi-machine installations, the 330103-10-18-50-01-00 is often deployed alongside the Bently Nevada 330180 series extension cables and 330130 series proximitor drivers to form a complete transducer chain. Each element of this chain is engineered to maintain signal integrity across long cable runs in electrically noisy industrial environments, ensuring that the energy optimization decisions made at the control level are based on accurate, uncontaminated sensor data.

Power Optimization in Real Production Lines

In a gas compression facility operating multiple centrifugal compressor trains, undetected rotor imbalance is one of the largest sources of avoidable energy waste. A compressor running with even a modest imbalance condition draws significantly more current than a balanced machine at the same throughput — and the excess energy is dissipated as heat and vibration rather than useful work. The 330103-10-18-50-01-00, installed at the compressor’s radial bearing locations, continuously monitors shaft centerline position and vibration amplitude. When the system detects a developing imbalance condition, operators can schedule a corrective balance run during the next planned maintenance window rather than waiting for an unplanned trip — which typically results in emergency energy consumption spikes, extended restart sequences, and production losses that dwarf the cost of the probe itself.

In power generation applications, steam turbine operators use proximity probe data from the 330103-10-18-50-01-00 to optimize rotor clearances during startup and shutdown sequences. Tight clearance control during these transient phases reduces the risk of rub events, which are both mechanically damaging and energetically wasteful. By maintaining optimal clearances throughout the operating envelope, the turbine can be brought to full load more quickly and with less fuel consumption per megawatt-hour generated.

For production line rhythm optimization, the probe’s high-frequency response — flat to 10,000 Hz — allows it to capture not only low-speed imbalance but also high-frequency structural resonances that can cause intermittent quality defects in precision manufacturing. When a machine tool spindle or a high-speed packaging line drive begins to exhibit resonance-driven vibration, product reject rates increase and line speed must be reduced — both of which represent energy inefficiency. The 330103-10-18-50-01-00 identifies these conditions early, allowing maintenance teams to address root causes before they impact production throughput or energy efficiency metrics.

Predictive maintenance programs built around the 330103-10-18-50-01-00 consistently demonstrate reductions in maintenance labor costs, spare parts consumption, and unplanned downtime. Each avoided emergency shutdown represents not only a direct cost saving but also an energy saving — restart sequences for large rotating machines are energy-intensive, and minimizing their frequency directly reduces the facility’s total energy consumption per unit of output. All units supplied by ZYPLC are tested prior to shipment and covered by a 12-month warranty, ensuring that the probe performs to specification from day one of installation.

Energy Optimization FAQ

Q1: How does the 330103-10-18-50-01-00 contribute to measurable energy savings in rotating equipment applications?
By providing continuous, high-resolution shaft position and vibration data, the 330103-10-18-50-01-00 enables condition-based maintenance strategies that eliminate the energy waste associated with mechanical faults such as imbalance, misalignment, and bearing degradation. Facilities that transition from time-based to condition-based maintenance using proximity probe data typically report reductions in unplanned downtime of 20–40%, with corresponding improvements in energy efficiency per unit of production output.

Q2: Is the 330103-10-18-50-01-00 compatible with existing 3300 Series and 3500 Series monitoring infrastructure?
Yes. The 330103-10-18-50-01-00 is fully compatible with the Bently Nevada 3300 Series proximitor/driver ecosystem and integrates directly with the 3500 Series monitoring rack. It is also compatible with legacy 3300 XL systems and can be used with Bently Nevada System 1 software for advanced data analysis and energy performance trending. No hardware modifications are required for drop-in replacement of equivalent 3300 Series probes.

Q3: What is the recommended replacement and testing procedure for this proximity probe?
Replacement should be performed during a planned maintenance window with the machine at rest. The probe gap should be set to the manufacturer’s specified air gap using a calibrated gap meter, and the output voltage should be verified against the proximitor’s calibration curve before returning the machine to service. All 330103-10-18-50-01-00 units supplied by ZYPLC are pre-tested and verified prior to shipment, reducing commissioning time and ensuring immediate operational readiness.

Q4: What warranty and supply assurance does ZYPLC provide for the 330103-10-18-50-01-00?
ZYPLC provides a 12-month warranty on all 330103-10-18-50-01-00 units, covering manufacturing defects and performance deviations from specification. Units are held in stock and subject to outgoing quality inspection and functional testing before dispatch. For high-volume or project-based requirements, ZYPLC can provide supply scheduling and inventory reservation to support planned maintenance outages and capital project timelines.
