Bently Nevada 330104-00-02-10-02-00 Proximity Probe for 3300 XL Systems

Bently Nevada 330104-00-02-10-02-00: Industrial Data Link for 3300 XL Machine Protection Systems

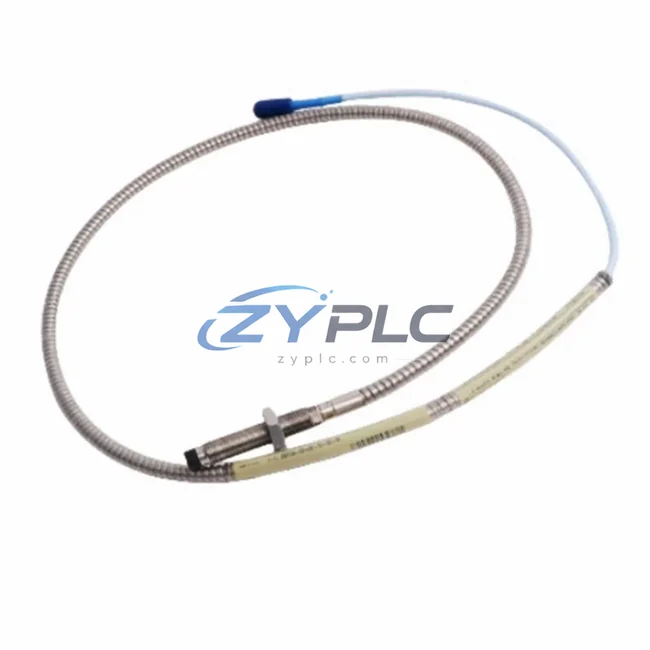

The Bently Nevada 330104-00-02-10-02-00 is a precision eddy-current proximity probe engineered for the 3300 XL Series machine protection platform. As the critical first node in the industrial data chain, this probe delivers continuous, real-time shaft vibration and position data from rotating field devices — turbines, compressors, pumps, and motors — through to SCADA dashboards and plant-wide asset management systems. In smart factory environments where unplanned downtime carries enormous operational cost, the 330104-00-02-10-02-00 provides the reliable, low-latency signal acquisition that underpins every layer of the monitoring and communication architecture.

Operating on the proven non-contact eddy-current sensing principle, this proximity probe detects shaft displacement without physical contact, eliminating mechanical wear and ensuring measurement integrity across decades of continuous operation. Its DC voltage output — proportional to the gap between probe tip and target shaft — feeds directly into the 3300 XL Proximitor® sensor, which conditions and transmits the signal upstream through the industrial network to the supervisory layer.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the 330104-00-02-10-02-00 proximity probe sits at the edge of the data acquisition layer, mounted directly on rotating machinery where shaft dynamics must be continuously tracked. The probe pairs with the Bently Nevada 3300 XL Proximitor® Sensor — such as the 330180-X1-05 or the 330130-040-00-00 extension cable assembly — to form a complete eddy-current measurement chain. The conditioned analog output is then routed into a Bently Nevada 3500 Series Monitoring Rack, a modular rack-based system that accepts inputs from multiple probe channels simultaneously and applies configurable alarm thresholds for radial vibration, axial position, and differential expansion.

Within the 3500 rack, the 3500/42M Proximitor®/Seismic Monitor module processes the 330104-00-02-10-02-00 signal alongside data from seismic velocity sensors and accelerometers, enabling multi-parameter machine health assessment from a single rack. The rack communicates upstream via Ethernet or serial interfaces to the Bently Nevada System 1 software platform, which aggregates condition data from all monitored assets across the plant. System 1 functions as the condition monitoring SCADA layer, providing trend analysis, alarm management, and predictive maintenance workflows accessible from any HMI workstation on the plant network.

For facilities running a broader DCS or SCADA platform — such as GE iFIX, Honeywell Experion, or Emerson DeltaV — the 3500 rack’s gateway outputs can be mapped via Modbus TCP or OPC-UA to the supervisory layer, ensuring that vibration data from the 330104-00-02-10-02-00 appears alongside process variables like temperature, pressure, and flow in a unified operator view. Remote I/O modules and industrial edge gateways can further extend this data to cloud-based asset performance management (APM) platforms, enabling remote diagnostics and anomaly detection without requiring on-site personnel. Variable frequency drives (VFDs) controlling the monitored machines can also feed speed reference signals back into the 3500 rack, allowing the system to correlate vibration signatures with operating speed — a critical capability for identifying resonance, imbalance, and bearing defects across the full speed range. Industrial power supplies supporting the 3300 XL Proximitor® sensor ensure stable 24 VDC excitation, maintaining signal integrity even in electrically noisy plant environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy vibration monitoring equipment often operates in isolation, with alarm outputs wired directly to control room panels but no digital data path to the plant SCADA or historian. The Bently Nevada 330104-00-02-10-02-00, deployed within the 3300 XL and 3500 Series ecosystem, directly addresses this data isolation problem by providing a fully digital, network-integrated monitoring path from the field sensor to the enterprise level.

Protocol incompatibility is eliminated through the 3500 rack’s multi-protocol communication options, which support Modbus RTU, Modbus TCP, and OPC-UA — the lingua franca of modern industrial networks. This means that even in brownfield installations where the DCS speaks a different protocol than the condition monitoring system, the 330104-00-02-10-02-00 data chain can be bridged without custom engineering. Production line transparency is achieved through System 1’s real-time dashboards, which display shaft vibration trends, alarm states, and historical waveforms for every monitored machine, giving maintenance engineers the visibility they need to move from reactive to predictive maintenance strategies.

System expansion is equally straightforward: additional 330104-00-02-10-02-00 probes and companion sensors can be added to the 3500 rack as new machines are brought into the monitoring program, with no disruption to existing channels. Remote diagnostics are supported through the System 1 network interface, allowing engineers to review alarm histories, waveform snapshots, and trend data from any networked workstation or remote access terminal — eliminating the need for physical presence at the machine during routine condition assessments.

Each unit supplied by ZYPLC undergoes pre-shipment functional testing to verify signal output accuracy, cable insulation resistance, and connector mechanical integrity. Availability confirmed by RFQ inventory ensures short lead times for both planned installations and emergency replacements, minimizing the window of unmonitored operation. Every 330104-00-02-10-02-00 is backed by a warranty terms confirmed during quotation covering manufacturing defects, premature signal degradation, and connector failures under normal operating conditions.

Industrial Connectivity FAQ

Q1: What is the communication path from the 330104-00-02-10-02-00 probe to a SCADA system?
The probe generates an analog DC voltage signal proportional to shaft gap, which is conditioned by the 3300 XL Proximitor® sensor and fed into the Bently Nevada 3500 Series monitoring rack. The rack communicates to SCADA via Modbus TCP, Modbus RTU, or OPC-UA, depending on the communication module installed. This path delivers real-time vibration data to any compatible SCADA or DCS platform with typical scan cycle latencies well under 100 ms.

Q2: Is the 330104-00-02-10-02-00 compatible with non-Bently Nevada monitoring systems and third-party protocol gateways?
Yes. The probe’s analog DC voltage output is a standard signal readable by any monitoring system with a compatible analog input card, provided the input range and sensitivity match the 3300 XL Proximitor® output specification. For full protocol integration with third-party SCADA or DCS platforms, the 3500 rack’s Modbus RTU/TCP or OPC-UA gateway capability provides the necessary communication bridge without custom engineering.

Q3: How does the system maintain network stability and data continuity during communication interruptions?
The 3500 Series rack operates as a standalone machine protection system independent of network connectivity. Hardwired alarm relay outputs ensure that trip and alert actions are executed even if the SCADA communication link is interrupted. Data buffering within the rack preserves recent trend data during network outages, which is synchronized to System 1 upon reconnection, maintaining full data continuity for the historian and trend analysis functions.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330104-00-02-10-02-00 unit supplied by ZYPLC is tested prior to shipment for signal output accuracy, cable insulation resistance, and connector mechanical integrity. The warranty terms confirmed during quotation covers manufacturing defects, premature signal degradation, and connector failures under normal operating conditions. Warranty claims are supported with full documentation, and replacement units are dispatched from RFQ-confirmed sourcing to minimize downtime at the customer site.
