Bently Nevada 330104-00-05-50-11-00 3300 Proximity Probe

Bently Nevada 330104-00-05-50-11-00 3300 Proximity Probe: Industrial Data Link for Machine Condition Monitoring

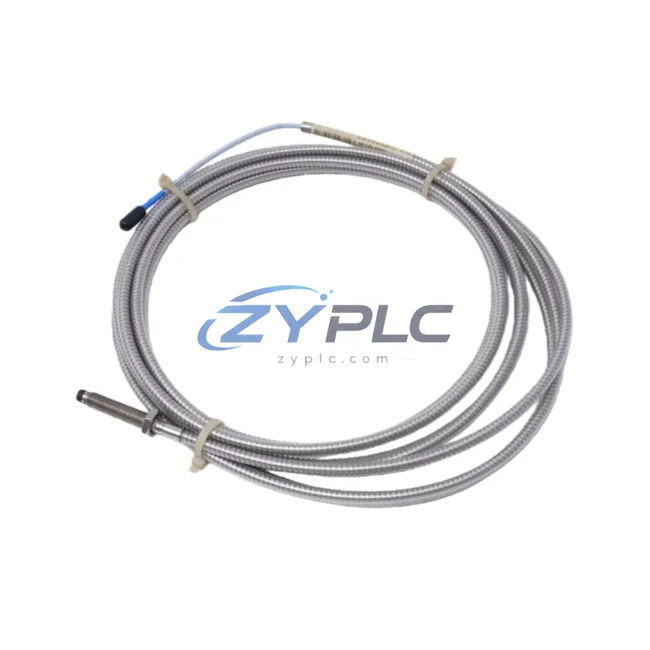

In modern smart factories and rotating machinery plants, real-time vibration and displacement data is the foundation of predictive maintenance and production line stability. The Bently Nevada 330104-00-05-50-11-00 is a metric proximity probe from the renowned 3300 Series, engineered to deliver continuous, high-accuracy shaft displacement and vibration signals directly into your plant’s condition monitoring and control architecture. With a 5mm probe tip, 5-metre armoured cable, and 11mm target area, this eddy-current sensor forms the critical first link in the industrial data chain — from rotating shaft to SCADA dashboard.

Unlike generic vibration sensors, the 330104-00-05-50-11-00 is designed to integrate seamlessly with the Bently Nevada 3300 Series signal conditioning system, including the 3300/16 proximitor sensor and 3300/55 proximitor, which convert raw eddy-current signals into standardised 4–20 mA or voltage outputs compatible with DCS, PLC, and safety instrumented systems. This makes the probe a native data source for plant-wide connectivity — not an isolated sensor island.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330104-00-05-50-11-00 proximity probe sits at the very beginning of the machine health data pipeline. Mounted radially or axially on a rotating shaft, it continuously measures the gap between the probe tip and the target surface, generating a voltage signal proportional to displacement. This raw signal is fed into a Bently Nevada 3300/16 Proximitor Sensor, which conditions and amplifies it into a clean analogue output ready for transmission across the plant network.

From the proximitor, the conditioned signal enters the Bently Nevada 3500 Series rack-based monitoring system — specifically modules such as the 3500/42M Proximitor/Seismic Monitor — where it is processed against configurable alarm thresholds for radial vibration, axial position, and eccentricity. The 3500 rack communicates alarm and process data upstream via Modbus TCP/IP or OPC DA/UA to plant SCADA platforms, enabling operators to view real-time shaft behaviour on HMI screens such as the GE iFIX SCADA or Wonderware InTouch without any manual data transcription.

For plants running distributed control systems, the analogue output from the proximitor can be wired directly into an Emerson DeltaV AI Module or a Yokogawa CENTUM VP AAI141 Analog Input Module, integrating vibration data into the same DCS loop that manages process variables like temperature, pressure, and flow. This unified data environment allows control engineers to correlate mechanical health with process conditions — for example, detecting bearing wear during high-load compressor cycles before it causes unplanned downtime.

In facilities using Allen-Bradley PLCs, the signal chain typically routes through a Rockwell Automation 1756-IF16 ControlLogix Analogue Input Module, which digitises the proximitor output and makes it available to the Studio 5000 logic engine. From there, the data can be published to a Kepware KEPServerEX OPC server, bridging the gap between the field device layer and enterprise MES or ERP systems. Remote I/O extensions using Allen-Bradley 1734 POINT I/O modules further extend the network reach to distributed machinery across large plant floors.

For edge analytics and IIoT connectivity, the vibration data stream from the 330104-00-05-50-11-00 can be aggregated by an industrial edge gateway — such as the Moxa MGate MB3170 Modbus Gateway — which converts serial Modbus RTU signals to Modbus TCP/IP or MQTT for cloud historian upload. This enables Bently Nevada System 1 Evolution software to perform trend analysis, FFT spectrum review, and predictive maintenance scheduling from a centralised server, dramatically reducing the time between fault detection and maintenance dispatch.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery plants is the fragmentation of machine health data. Vibration sensors are often installed as standalone instruments with local displays, their readings never reaching the SCADA or DCS layer where process engineers make decisions. The result is a data silo: maintenance teams carry handheld analysers to manually check each machine, while control room operators remain blind to developing mechanical faults until a trip or catastrophic failure occurs.

The Bently Nevada 330104-00-05-50-11-00 proximity probe, when deployed as part of a complete 3300/3500 Series monitoring chain, directly solves this isolation problem. By generating a continuous, standardised analogue signal that any DCS, PLC, or safety system can consume, it transforms a previously isolated mechanical measurement into a live process variable — visible, alarmable, and historisable across the entire plant network.

Protocol unification is achieved through the 3500 rack’s built-in communication options: Modbus RTU/TCP, OPC DA, and direct analogue wiring all allow the vibration data to reach whatever control platform the plant operates. For older facilities with legacy serial networks, a Modbus RTU-to-TCP gateway bridges the gap without requiring a full system upgrade. For greenfield smart factory projects, OPC UA connectivity ensures the probe data is immediately available to MES, digital twin platforms, and cloud-based predictive maintenance services.

Production line transparency improves significantly when shaft displacement and vibration trends are visible in real time. Operators can set early-warning alarm thresholds — for example, triggering a maintenance work order when vibration amplitude exceeds 75% of the danger setpoint — rather than waiting for the machine protection system to initiate an emergency shutdown. This shift from reactive to predictive maintenance reduces unplanned downtime, extends equipment service life, and lowers the total cost of ownership for critical rotating assets.

Every unit of the 330104-00-05-50-11-00 supplied by ZYPLC undergoes pre-shipment functional testing to verify probe sensitivity, cable continuity, and connector integrity. Stock is maintained for prompt dispatch, and Warranty terms are confirmed during quotation.

Industrial Connectivity FAQ

Q1: What is the signal output of the 330104-00-05-50-11-00, and how does it connect to a PLC or DCS?
The probe itself generates a raw eddy-current voltage signal, which must be conditioned by a compatible Bently Nevada Proximitor (such as the 3300/16 or 3300/55). The Proximitor outputs a standardised DC voltage (typically –24 VDC scale) or, via a signal converter, a 4–20 mA analogue signal. This output wires directly into any standard analogue input module on a DCS (e.g. Emerson DeltaV, Yokogawa CENTUM VP) or PLC (e.g. Rockwell ControlLogix, Siemens S7-300), with no additional protocol conversion required.

Q2: Is the 330104-00-05-50-11-00 compatible with the Bently Nevada 3500 Series monitoring rack?
Yes. The 330104-00-05-50-11-00 is fully compatible with the 3500 Series rack system, including the 3500/42M Proximitor/Seismic Monitor module. When used with the 3500 rack, the system supports Modbus TCP/IP and OPC DA communication, enabling direct integration with SCADA, historian, and plant asset management software such as Bently Nevada System 1 Evolution.

Q3: Can this probe be used for both radial vibration and axial position measurement?
Yes. The 3300 Series proximity probe system is designed for both radial shaft vibration and axial thrust position monitoring, depending on mounting orientation and the monitor module configuration. The 330104-00-05-50-11-00’s 5mm tip and 11mm target area are suited to standard shaft diameters found in turbines, compressors, and large pumps. Always verify the gap voltage and linear range with the specific Proximitor model during commissioning.

Q4: What does the warranty and support terms confirmed before quote cover, and how is pre-shipment testing conducted?
All 330104-00-05-50-11-00 units supplied by ZYPLC are Warranty terms are confirmed during quotation. Prior to dispatch, each unit is tested for probe tip sensitivity, cable insulation resistance, and connector pin continuity. Units that do not meet Bently Nevada specification are quarantined and not shipped. For replacement or warranty claims, contact plc.sales@zyplc.com with your order reference.
