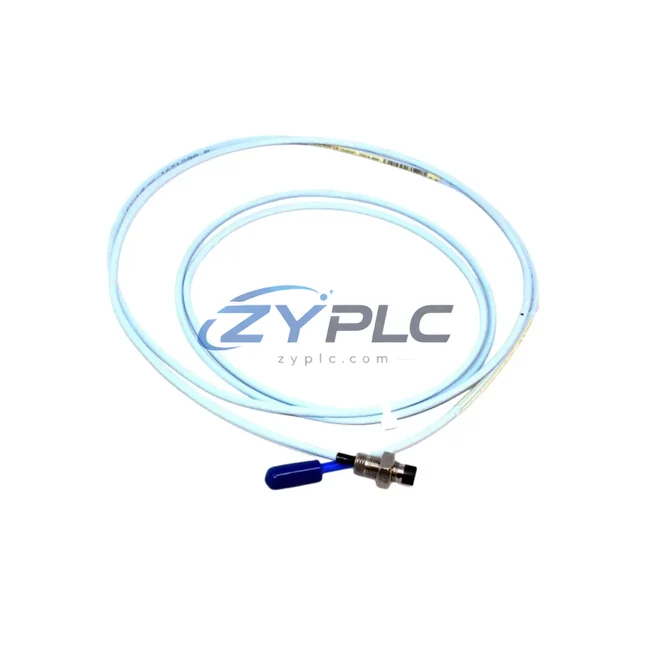

Bently Nevada 330104-00-06-05-02-CN Proximity Probe for 3300 XL

Bently Nevada 330104-00-06-05-02-CN: Proximity Probe for 3300 XL

In modern industrial automation and machinery protection systems, every component must be evaluated not in isolation, but as an integral node within a layered control architecture. The Bently Nevada 330104-00-06-05-02-CN is an 8mm proximity probe engineered for the 3300 XL Series machinery monitoring platform — a system trusted across rotating equipment applications in power generation, petrochemical processing, oil and gas, and heavy manufacturing. This probe does not simply measure shaft displacement; it serves as the primary sensing element in a continuous, real-time vibration and position monitoring chain that spans from the machine shaft to the control room decision layer.

Understanding the role of the 330104-00-06-05-02-CN requires understanding the full signal path of the 3300 XL system. The probe generates an eddy-current-based voltage signal proportional to the gap between its tip and the rotating shaft surface. This raw signal is transmitted through a matched extension cable — typically the Bently Nevada 330130 series armored extension cable — to a compatible proximitor or signal conditioner such as the 3300 XL 8mm Proximitor Sensor (330180 series). The proximitor converts the probe’s oscillator output into a DC voltage signal that represents shaft position and dynamic vibration amplitude. This conditioned signal is then routed to the 3500 Series Rack System, where dedicated monitor modules — including the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor — perform real-time analysis, alarm threshold comparison, and relay output actuation.

Within the 3500 rack architecture, the 330104-00-06-05-02-CN integrates seamlessly with the system’s modular I/O philosophy. The 3500 rack accepts multiple monitor modules governed by a central 3500/20 Rack Interface Module, which manages communication between individual monitor cards and the plant DCS or safety system via Modbus, Profibus, or Ethernet/IP protocols. This layered communication structure ensures that vibration data captured by the 330104-00-06-05-02-CN is available not only for local alarm annunciation but also for integration into broader plant-wide condition monitoring platforms such as System 1 Evolution software. The result is a fully system integration of machine health data into the plant’s operational decision-making framework.

From a redundancy and reliability standpoint, the 330104-00-06-05-02-CN supports dual-probe configurations commonly used in API 670-compliant machinery protection systems. In these architectures, two probes are mounted 90 degrees apart on the shaft — typically labeled X and Y — to provide full orbital analysis of shaft motion. Each probe feeds an independent channel within the 3500 monitor module, enabling the system to detect not only radial vibration amplitude but also shaft centerline position shifts indicative of bearing wear, misalignment, or lubrication degradation. This redundant sensing approach ensures that no single probe failure results in a loss of machine protection coverage, a critical requirement in turbomachinery and compressor train applications.

The probe’s 8mm tip diameter and the -CN cable configuration (integral cable, non-armored) make it well-suited for installations where cable routing flexibility is required and where the probe body must fit within tight bearing housing clearances. The standard 5mm gap operating range and the -05-02 extension length designation (5-meter probe cable, 2-meter extension) provide the dimensional flexibility needed to accommodate a wide range of machine frame sizes and bearing pedestal geometries. Engineers specifying this probe for new installations or replacement applications can rely on its dimensional and electrical compatibility with the full 3300 XL probe system ecosystem, including the 330130-080-00-00 extension cable and the 330180-X1-05 proximitor.

Product Specification Table

System Compatibility Notes

The 330104-00-06-05-02-CN achieves its full protective value only when deployed within a correctly specified and coordinated system architecture. At the sensing layer, the probe pairs with the Bently Nevada 330180-X1-05 Proximitor Sensor, which provides the oscillator-driver circuit and signal conditioning necessary to convert the probe’s raw eddy-current response into a calibrated DC voltage. The proximitor mounts in a junction box or directly on the machine frame, and its output connects to the monitor rack via shielded signal cable.

At the monitor layer, the Bently Nevada 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor receives the conditioned signal and performs continuous comparison against user-configured alert and danger thresholds. These modules reside within the 3500 Series Rack, a modular 19-inch rack system that also houses the 3500/20 Rack Interface Module (RIM) for plant network communication, the 3500/15 Power Supply Module for redundant DC power distribution, and optional 3500/32 4-Channel Relay Module units for hardwired trip output to machine shutdown systems or DCS interlock circuits.

For installations requiring intrinsic safety or hazardous area compliance, the signal path may incorporate a Bently Nevada 3300 XL Zener Barrier or galvanic isolator between the proximitor and the monitor rack, ensuring that the sensing circuit remains within safe energy limits in Zone 1 or Zone 2 classified areas. In turbomachinery train applications — such as gas turbine, steam turbine, or centrifugal compressor trains — the 330104-00-06-05-02-CN is typically deployed alongside Bently Nevada 330500 series velocity transducers or 330900 series accelerometers to provide complementary vibration measurement across different frequency ranges, enabling a complete machinery health picture within a single 3500 rack system.

At the human-machine interface layer, vibration data from the 330104-00-06-05-02-CN feeds into Bently Nevada System 1 Evolution condition monitoring software, where trend analysis, spectrum plots, and orbital diagrams are generated for engineering review. This software layer bridges the gap between real-time protection and long-term predictive maintenance, allowing maintenance engineers to correlate vibration trends with process variables such as load, speed, and temperature — all within a unified system integration framework.

Industrial Application Notes

The 330104-00-06-05-02-CN finds application across a broad spectrum of process industries where rotating machinery protection is a safety and reliability imperative. In power generation facilities — including gas turbine power plants, steam turbine generators, and combined-cycle units — this probe monitors shaft radial vibration on turbine rotors and generator shafts, providing the early warning data necessary to prevent catastrophic bearing failures and unplanned outages. API 670-compliant machinery protection systems in these facilities typically specify dual-probe XY configurations on every critical machine train bearing, making the 330104-00-06-05-02-CN a standard component in turbine protection panel designs.

In petrochemical and refinery applications, the probe is deployed on centrifugal compressors, process pumps, and gearboxes within hazardous area classifications. Its compatibility with ATEX and IECEx-rated system configurations ensures that the complete 3300 XL probe system can be installed in Zone 1 and Zone 2 environments without compromising the integrity of the machinery protection architecture. Refinery operators rely on the continuous vibration data from these probes to schedule condition-based maintenance intervals, reducing both unplanned downtime and the cost of over-maintenance.

In water treatment and pumping station applications, the 330104-00-06-05-02-CN monitors large vertical turbine pumps and horizontal split-case pumps, where shaft vibration is a key indicator of impeller wear, cavitation, and bearing degradation. The probe’s long-term stability and low drift characteristics make it well-suited for continuous monitoring applications where recalibration intervals must be minimized. In mining and mineral processing facilities, the probe is applied to large ball mill drives, SAG mill pinion bearings, and crusher main shaft assemblies, where the harsh environment and high vibration amplitudes demand a robust, field-proven sensing solution.

Product Compatibility FAQ

Q1: Is the 330104-00-06-05-02-CN directly compatible with the 3500 Series rack system, and what additional components are required for a complete installation?
The 330104-00-06-05-02-CN is designed for use within the 3300 XL probe system and is not directly connected to the 3500 rack. A complete installation requires a matched 3300 XL Proximitor Sensor (such as the 330180-X1-05) and a compatible extension cable (330130 series, matched length). The proximitor output then connects to a 3500/40M or 3500/42M monitor module within the 3500 rack. All components must be ordered as a matched system to ensure calibration accuracy and system certification compliance.

Q2: Can this probe be used as a direct replacement for an existing 330104 series probe without recalibrating the 3500 monitor module?
Yes, provided the replacement probe is of the same tip diameter (8mm), the same cable configuration (-CN), and the same total system length (probe cable + extension cable) as the original installation. The 3300 XL system’s scale factor of 7.87 V/mm is consistent across all 330104 series 8mm probes, so no monitor recalibration is required for a like-for-like replacement. However, the gap voltage should be verified at commissioning to confirm correct installation gap and probe orientation before returning the machine to service.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
The warranty terms confirmed during quotation covers manufacturing defects and functional performance failures under normal operating conditions. ZYPLC supports RFQ sourcing for the 330104-00-06-05-02-CN and related 3300 XL system components to support both emergency replacement and planned maintenance programs. Our technical team can assist with system architecture review, component cross-referencing, and installation guidance. For long-term maintenance planning, we recommend maintaining a minimum of one spare probe per critical machine train bearing position. Contact our team at plc.sales@zyplc.com or +86 19859288691 for availability confirmation and lead time.
