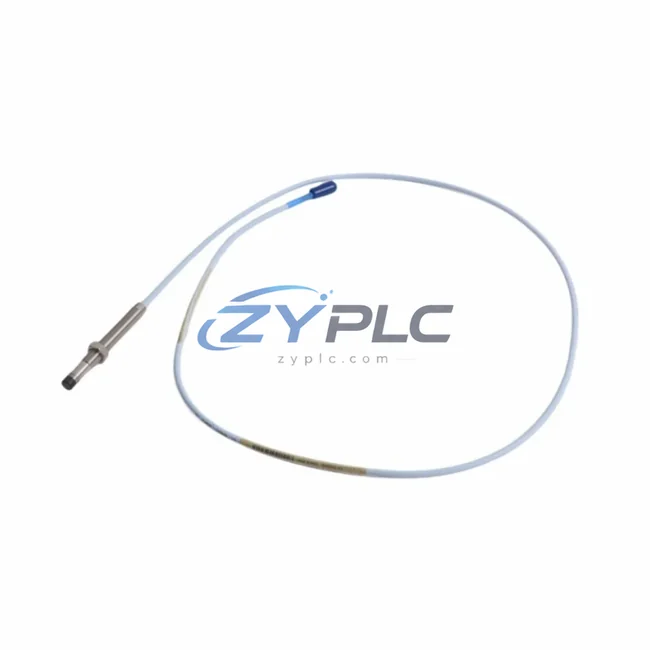

Bently Nevada 330104-00-13-05-02-05 3300 XL Proximity Transducer

Bently Nevada 330104-00-13-05-02-05 3300 XL Proximity Transducer: Precision Vibration Control for Energy-Efficient Production Lines

The Bently Nevada 330104-00-13-05-02-05 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed for turbomachinery, compressors, pumps, and rotating equipment in demanding industrial environments, this transducer delivers real-time shaft vibration and position data that directly enables maintenance-focused automation decisions. By capturing accurate displacement signals at the source, the 330104-00-13-05-02-05 allows control systems to respond dynamically to mechanical deviations before they escalate into unplanned downtime or unplanned downtime.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to detect early-stage rotor imbalance, misalignment, or bearing wear is not merely a maintenance advantage — it is a direct maintenance planning lever. When the 330104-00-13-05-02-05 feeds precise vibration data into the 3300 XL monitoring rack, the system can trigger corrective actions through connected PLCs, variable frequency drives, and servo controllers, reducing unnecessary motor load and preventing the energy penalties associated with mechanical degradation.

This transducer is fully compatible with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, forming a complete eddy-current measurement chain. The signal output integrates seamlessly with the 3500 Series Machinery Protection System for facilities requiring multi-channel vibration monitoring across large turbine trains or centrifugal compressor strings.

Product Specification Table

System Compatibility and Application

The 330104-00-13-05-02-05 does not operate in isolation — its value is realized within a layered automation architecture where vibration data flows upward through the control hierarchy to drive operational-efficiency decisions at every level.

At the field level, the transducer pairs with the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-X1-05) to condition the raw eddy-current signal into a calibrated voltage output. This signal is then routed to the Bently Nevada 3500/42M Proximitor I/O Module within the 3500 Series rack, where it is processed alongside temperature, speed, and thrust data from complementary sensors. The 3500/20 Rack Interface Module manages communication between the protection rack and the plant DCS or safety PLC, ensuring that vibration exceedances trigger automated load-shedding or speed reduction commands to connected Rockwell Automation PowerFlex 755 variable frequency drives.

On the drive side, the PowerFlex 755 VFD responds to these commands by modulating motor speed in real time, directly reducing operating load during periods of mechanical stress or reduced production demand. This closed-loop interaction between the 330104-00-13-05-02-05 proximity transducer and the VFD layer is one of the most effective mechanisms for cutting motor unplanned downtime in rotating equipment applications.

For facilities running Siemens S7-1500 PLCs or Allen-Bradley ControlLogix platforms, the 3500 Series rack communicates via Modbus TCP or EtherNet/IP, enabling the vibration data from the 330104-00-13-05-02-05 to be visualized on Wonderware or FactoryTalk View HMI screens. Operators can monitor shaft displacement trends in real time, set energy-linked alarm thresholds, and schedule predictive maintenance windows without interrupting production.

Power quality at the instrument level is maintained through Bently Nevada 3500/15 Power Supply Modules, which provide stable, isolated DC power to the Proximitor sensors and I/O modules. Stable instrument power is essential for measurement accuracy — voltage fluctuations at the sensor level introduce signal noise that can mask early-stage vibration anomalies, leading to delayed fault detection and extended periods of elevated operating load.

For multi-machine monitoring environments, the 330104-00-13-05-02-05 can be deployed alongside the Bently Nevada 3300 XL Thrust Position Transducer and the 3300 XL Velocity Transducer to build a comprehensive mechanical health dataset. When all three measurement types — radial vibration, axial thrust, and casing velocity — are available to the control system, maintenance planning algorithms can make more nuanced decisions about load distribution across parallel machine trains, reducing total facility energy draw without sacrificing throughput.

Maintenance and Replacement Notes

In a typical petrochemical or power generation facility, a single centrifugal compressor train can consume several megawatts of electrical power during continuous operation. Even a 2–3% improvement in mechanical efficiency — achieved by detecting and correcting rotor imbalance early — translates into measurable reductions in monthly energy expenditure. The 330104-00-13-05-02-05 proximity transducer is the first link in this maintenance planning chain.

When shaft vibration levels begin to rise due to bearing wear, seal degradation, or process-induced imbalance, the 330104-00-13-05-02-05 detects the displacement change within microseconds. The 3500 Series protection system processes this data and, if configured with dynamic setpoints, can instruct the plant DCS to reduce compressor throughput or shift load to a parallel unit before the vibration reaches trip levels. This proactive load management prevents the energy spike associated with emergency shutdowns and cold restarts, which typically consume 3–5× the normal operating energy during the restart sequence.

On production lines with multiple rotating assets — such as cooling water pump trains, boiler feed pumps, or process gas compressors — deploying the 330104-00-13-05-02-05 across all critical machines creates a facility-wide vibration baseline. Deviations from this baseline, tracked over time through the 3500 Series historian or a connected SCADA platform, enable maintenance teams to schedule interventions during planned low-production windows rather than reacting to failures during peak demand periods. The result is a measurable improvement in Overall Equipment Effectiveness (OEE) and a corresponding reduction in energy consumed per unit of output.

Inventory availability and rapid dispatch of the 330104-00-13-05-02-05 further support production continuity. When a transducer requires replacement — whether due to physical damage, calibration drift, or end-of-life — delays in sourcing a replacement unit force operators to either run the machine unmonitored (increasing energy and safety risk) or shut down the asset entirely (incurring restart energy penalties). Maintaining a stocked supply of the 330104-00-13-05-02-05 eliminates this vulnerability. Each unit shipped by ZYPLC undergoes functional testing prior to dispatch, and is covered by a warranty terms confirmed during quotation, ensuring that replacement units perform to specification from the moment they are installed.

Product Sourcing FAQ

Q1: How does the 330104-00-13-05-02-05 contribute to operational stability in rotating equipment applications?
By providing continuous, high-resolution shaft displacement data, the 330104-00-13-05-02-05 enables the 3300 XL and 3500 Series systems to detect mechanical inefficiencies — such as rotor imbalance or bearing wear — before they cause significant energy losses. Early detection allows control systems to adjust motor load via connected VFDs, reducing unplanned downtime risk and preventing the high energy cost of unplanned shutdowns and restarts.

Q2: Is the 330104-00-13-05-02-05 compatible with third-party PLC and DCS platforms?
Yes. The 330104-00-13-05-02-05 outputs a standard voltage signal compatible with the Bently Nevada 3300 XL Proximitor Sensor, which in turn interfaces with the 3500 Series rack. The 3500 Series supports Modbus TCP, EtherNet/IP, and 4–20 mA analog outputs, enabling integration with Siemens S7, Allen-Bradley ControlLogix, Honeywell Experion, and other major DCS/PLC platforms.

Q3: What is the recommended replacement and testing procedure for the 330104-00-13-05-02-05?
Replacement units should be bench-tested using a Bently Nevada calibration fixture or equivalent eddy-current calibration tool before installation to verify scale factor and gap voltage. ZYPLC performs pre-shipment functional testing on all 330104-00-13-05-02-05 units. After installation, a static gap check and dynamic runout verification should be performed with the machine at operating speed to confirm measurement accuracy.

Q4: What warranty coverage applies to the 330104-00-13-05-02-05?
All 330104-00-13-05-02-05 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Warranty coverage includes defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period will be replaced or repaired at no additional cost, subject to inspection confirming the failure is not due to installation error, physical damage, or operation outside specified parameters.
