Bently Nevada 330104-00-14-10-02-00 Proximity Probe for 3300 XL Systems

Bently Nevada 330104-00-14-10-02-00: Industrial Data Link for 3300 XL Vibration Monitoring Networks

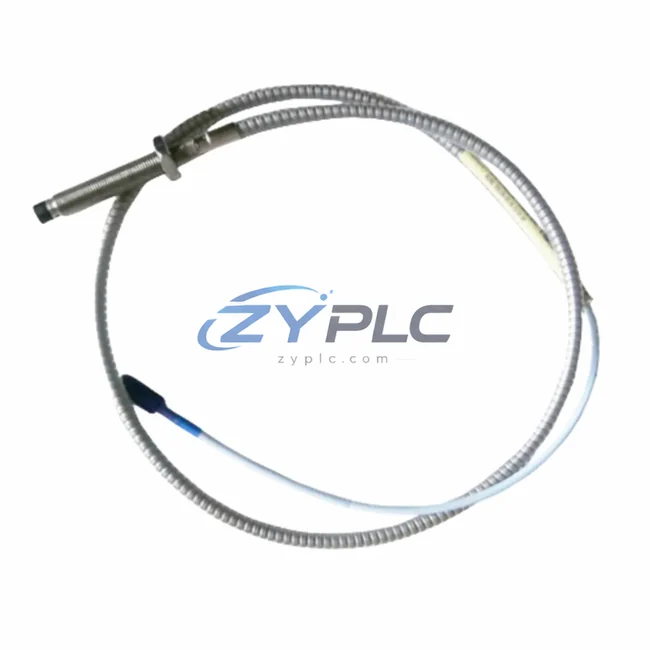

The Bently Nevada 330104-00-14-10-02-00 is a high-precision eddy-current proximity probe engineered for the 3300 XL Series condition monitoring platform. Designed to serve as the critical sensing node in rotating machinery protection networks, this probe delivers continuous, real-time shaft displacement and vibration data across the full industrial data chain — from field-level signal acquisition through protocol conversion, network transmission, SCADA integration, and remote diagnostic feedback loops. In smart factory environments where machine uptime directly impacts production throughput, the 330104-00-14-10-02-00 functions as the foundational data source that feeds every layer of the automation pyramid.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the 330104-00-14-10-02-00 proximity probe initiates the data flow at the machine level. Mounted radially or axially on rotating shafts in turbines, centrifugal compressors, or large induction motors, the probe generates a continuous analog gap voltage signal that reflects instantaneous shaft position and vibration amplitude. This raw signal travels through a matched Bently Nevada 330130-045-01-00 extension cable to a Bently Nevada 330180-X1-05 proximitor, which conditions and converts the signal into a calibrated DC voltage output.

The conditioned signal feeds directly into a Bently Nevada 3500/40M proximitor I/O module housed within the 3500 Series rack-based machinery protection system. The 3500 rack aggregates vibration, axial position, speed, and temperature data from multiple probes and transmits structured alarm and process data upstream via Modbus TCP or OPC-UA to the plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV distributed control system. At this layer, the data is time-stamped and logged for trend analysis, alarm management, and regulatory compliance reporting.

Simultaneously, the 3500 rack’s communication gateway interfaces with the plant SCADA platform — commonly Wonderware System Platform, Ignition by Inductive Automation, or Siemens WinCC — enabling operators at the control room HMI to monitor real-time vibration trends, gap voltage levels, and alarm states across all monitored machines on a single unified dashboard. When vibration thresholds are exceeded, the system triggers automated relay outputs that can command a Siemens SINAMICS G120 variable frequency drive to reduce load or initiate a controlled shutdown sequence via a Rockwell Automation ControlLogix PLC.

For facilities deploying edge computing architectures, the analog output from the 3300 XL monitor chain can be digitized by an edge gateway — such as a Moxa MGate MB3270 Modbus gateway or an HMS Anybus X-gateway — and forwarded to cloud-based asset performance management platforms for long-term predictive maintenance analytics. Remote I/O modules, such as Phoenix Contact Axioline F distributed I/O, can extend the monitoring network to remote pump stations or compressor skids without requiring dedicated cabling runs back to the central control room. This end-to-end data chain — from the 330104-00-14-10-02-00 probe tip to the cloud analytics dashboard — represents the complete industrial connectivity value of this component in a modern IIoT-enabled plant.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy rotating machinery protection systems often operate as isolated islands, generating critical vibration and position data that never reaches the plant SCADA or ERP layer. The Bently Nevada 330104-00-14-10-02-00, when deployed within the 3300 XL or 3500 Series ecosystem, directly addresses this data isolation problem by providing a standardized, high-fidelity analog signal that is natively compatible with the full range of Bently Nevada signal conditioning and communication hardware.

Protocol unification is achieved through the 3500 rack’s built-in communication modules, which translate raw probe signals into Modbus RTU, Modbus TCP, or OPC-UA — the three dominant protocols used by modern DCS and SCADA platforms. This eliminates the need for custom protocol converters or middleware, reducing integration complexity and potential points of failure. For plants operating mixed-vendor environments — combining Bently Nevada machinery protection with Allen-Bradley PLCs, Siemens S7-1500 controllers, or Schneider Electric EcoStruxure platforms — the OPC-UA interface provides a vendor-neutral data pathway that ensures full interoperability.

Production line transparency is further enhanced by the probe’s ability to deliver continuous, uninterrupted data streams rather than polled snapshots. This real-time data density enables SCADA operators to detect developing faults — such as rotor imbalance, misalignment, or bearing wear — hours or days before they escalate to unplanned shutdowns. Remote diagnostic capability is supported through the 3500 rack’s network interface, allowing condition monitoring engineers to access live vibration spectra and historical trend data from any networked workstation, reducing the need for on-site inspections and enabling predictive maintenance scheduling. System expansion is straightforward: additional 330104-00-14-10-02-00 probes and I/O modules can be added to the existing 3500 rack without disrupting the running network, supporting phased plant upgrades and capacity expansions.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330104-00-14-10-02-00 support for SCADA and DCS integration?
The 330104-00-14-10-02-00 proximity probe outputs a standard analog DC voltage signal that is processed by the 3300 XL proximitor and fed into the Bently Nevada 3500 Series monitor rack. The 3500 rack supports Modbus RTU, Modbus TCP/IP, and OPC-UA communication protocols, enabling direct integration with all major SCADA platforms (Wonderware, Ignition, WinCC) and DCS systems (DeltaV, Experion PKS) without additional protocol converters.

Q2: How does the 3300 XL proximity probe system ensure network stability and data continuity in harsh industrial environments?
The 330104-00-14-10-02-00 is designed for continuous 24/7 operation in high-temperature, high-vibration industrial environments. The eddy-current sensing principle is inherently non-contact and immune to contamination from oil, steam, or process gases, ensuring uninterrupted signal output. The coaxial cable assembly and proximitor are rated for industrial temperature ranges, and the 3500 rack provides redundant power inputs and watchdog monitoring to maintain network uptime even during partial system faults.

Q3: Can the Bently Nevada 330104-00-14-10-02-00 be integrated into an existing PLC-based control system without replacing the current SCADA infrastructure?
Yes. The 3500 Series rack’s Modbus TCP interface allows the proximity probe data to be mapped directly into the register space of any Modbus-compatible PLC — including Rockwell ControlLogix, Siemens S7-1500, and Schneider Electric M340 — without modifying the existing SCADA configuration. The probe data appears as standard analog input values within the PLC program, enabling alarm logic, interlock functions, and historian logging to be implemented using the plant’s existing automation tools.

Q4: What quality assurance and warranty coverage is provided for the 330104-00-14-10-02-00?
Every Bently Nevada 330104-00-14-10-02-00 unit supplied by ZYPLC undergoes pre-shipment functional testing, including gap voltage calibration verification and signal output validation against Bently Nevada factory specifications. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability confirmed by RFQ inventory is maintained for shipment arranged after confirmation, with global shipping available to support urgent maintenance and shutdown requirements. Technical support is available throughout the warranty period to assist with installation, commissioning, and system integration.
