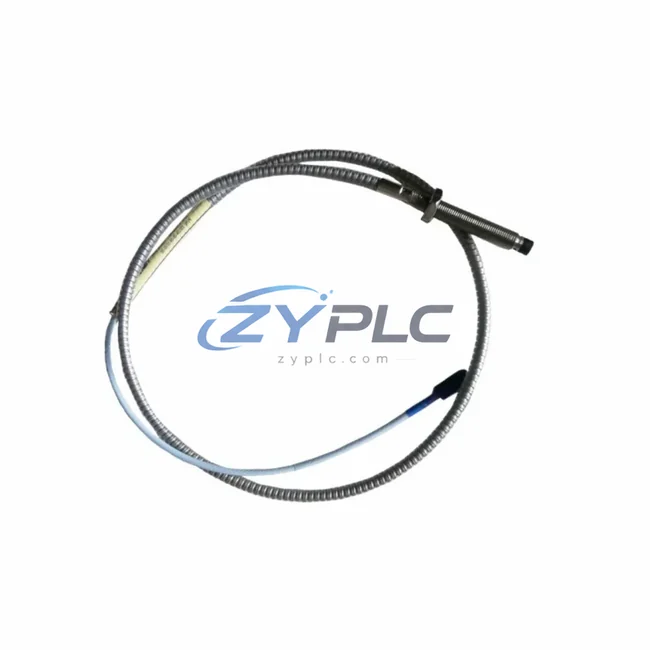

Bently Nevada 330104-00-16-05-02-00 Proximity Probe 3300

Bently Nevada 330104-00-16-05-02-00 Proximity Probe 3300: Replacement and Sourcing Information

The Bently Nevada 330104-00-16-05-02-00 is a high-performance eddy-current proximity probe from the renowned 3300 Series, engineered to deliver continuous, non-contact vibration and position measurement in the most demanding turbomachinery and rotating equipment environments. As industrial facilities face mounting pressure to reduce unplanned downtime, minimize unplanned downtime, and optimize equipment utilization, this proximity probe serves as a foundational sensing element in a modern industrial automation system.

By providing real-time shaft displacement and vibration data with exceptional signal fidelity, the 330104-00-16-05-02-00 enables control systems to make intelligent, data-driven decisions — reducing unnecessary motor load cycles, preventing energy-intensive emergency shutdowns, and extending mean time between maintenance intervals. Every millisecond of accurate measurement translates directly into operating-hours saved and production throughput preserved.

Product Specification Table

System Compatibility and Application

The 330104-00-16-05-02-00 proximity probe does not operate in isolation — it is the sensing nerve of a tightly integrated maintenance planning ecosystem. In a typical high-efficiency turbomachinery installation, this probe pairs with the Bently Nevada 3300 XL 8mm Extension Cable and a matched 3300 XL Proximitor Sensor (such as the 330180-X1-05) to form a complete eddy-current measurement chain. The Proximitor converts raw probe impedance changes into a calibrated DC voltage signal, which feeds directly into the Bently Nevada 3500/42M Proximitor Monitor — a rack-mounted module that processes shaft vibration, eccentricity, and axial position data simultaneously.

This vibration data is then transmitted via the Bently Nevada TDXnet communication gateway to plant-level System 1 Condition Monitoring Software, where energy engineers can correlate shaft behavior with motor load profiles. When the system detects sub-optimal bearing clearances or developing rotor imbalance, operators can schedule corrective action during planned low-production windows — avoiding the massive energy penalty of an emergency cold restart on a large steam turbine or centrifugal compressor.

On the drive side, the vibration signals from the 330104-00-16-05-02-00 can be integrated with ABB ACS880 Variable Frequency Drives or Siemens SINAMICS S120 servo drive systems through a DCS interface, enabling closed-loop speed adjustment based on real shaft dynamics rather than fixed setpoints. This dynamic speed regulation alone can help restore stable operation in variable-load applications when a compatible replacement is required such as boiler feed pumps and induced draft fans.

For facilities running Rockwell Automation ControlLogix PLCs or Siemens S7-400 process controllers, the 4–20 mA analog output from the 3300 XL monitor integrates seamlessly into existing I/O modules, requiring no additional signal conditioning hardware. Combined with Yokogawa CENTUM VP DCS or Honeywell Experion PKS platforms, the proximity data becomes part of a plant-wide energy dashboard, enabling real-time KPI tracking of specific operating load per production unit.

Power quality monitoring devices such as the Schneider Electric PowerLogic ION9000 can be deployed alongside the vibration monitoring loop to correlate electrical demand spikes with mechanical events captured by the 330104-00-16-05-02-00, giving energy managers a complete picture of where and when energy is being wasted in the rotating equipment train.

Maintenance and Replacement Notes

In a petrochemical plant running continuous compressor trains, undetected rotor imbalance or bearing wear forces the drive system to compensate with excess torque — consuming 8–12% more electrical energy than a balanced machine. The Bently Nevada 330104-00-16-05-02-00 proximity probe, installed at the compressor shaft, detects this imbalance in its earliest stages, long before it manifests as audible noise or thermal anomaly. Maintenance teams receive an alert through System 1 Software, schedule a balance correction during the next planned outage, and the compressor returns to its design efficiency curve — saving tens of thousands of operating-hours per year on a single machine.

In power generation facilities, axial position monitoring using the 330104-00-16-05-02-00 prevents catastrophic thrust bearing failures that would require weeks of unplanned downtime and massive restart energy expenditure. By maintaining shaft position within design tolerances, the probe ensures that steam turbine blade tip clearances remain optimal, directly preserving isentropic efficiency and reducing steam consumption per megawatt-hour generated.

On automotive and discrete manufacturing lines where large electric motors drive conveyor systems, presses, or cooling towers, the proximity probe’s continuous position feedback allows the control system to detect developing mechanical looseness before it causes vibration-induced energy losses. Integrating this data with production line OEE (Overall Equipment Effectiveness) systems enables plant managers to correlate equipment health scores with energy cost per unit produced — a critical metric for ISO 50001 maintenance planning compliance.

The non-contact measurement principle of the 330104-00-16-05-02-00 means zero friction, zero wear, and zero energy loss from the sensing element itself. Unlike contact-type sensors that introduce mechanical drag, this eddy-current probe operates indefinitely without consuming any of the mechanical energy it is measuring — a fundamental advantage in high-speed rotating equipment where every watt of parasitic loss matters.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including signal output verification across the full measurement range, insulation resistance checks, and cable continuity validation. This pre-shipment testing protocol ensures that every 330104-00-16-05-02-00 arrives ready for immediate installation, eliminating the energy and time cost of field troubleshooting a defective sensor.

Product Sourcing FAQ

Q1: How does the 330104-00-16-05-02-00 contribute to measurable operational stability in rotating equipment?
By providing continuous, high-resolution shaft vibration and position data, this proximity probe enables early detection of mechanical inefficiencies — rotor imbalance, misalignment, bearing wear — that force drive systems to consume excess energy. Correcting these conditions based on probe data typically reduces motor load by 8–20% on affected machines, with payback periods measured in weeks rather than years.

Q2: Is the 330104-00-16-05-02-00 compatible with modern DCS and PLC control platforms?
Yes. The 3300 XL monitor system outputs a standard 4–20 mA analog signal and supports Modbus RTU/TCP communication, making it directly compatible with Rockwell ControlLogix, Siemens S7 series, ABB 800xA, Yokogawa CENTUM, and Honeywell Experion platforms. No proprietary interface hardware is required for integration into existing automation infrastructure.

Q3: Can this probe replace an existing 3300 Series unit without recalibration of the monitoring system?
The 330104-00-16-05-02-00 is a direct form-fit-function replacement for equivalent 3300 Series proximity probes with matching tip diameter (5 mm) and cable length (5 m / 16 ft). When paired with the original 3300 XL Proximitor and extension cable, the system sensitivity (200 mV/mil) and gap voltage characteristics remain identical, requiring no recalibration of the monitor or alarm setpoints.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330104-00-16-05-02-00 supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional performance. Prior to shipment, each unit undergoes output signal verification, cable insulation resistance testing, and tip impedance measurement to confirm compliance with Bently Nevada factory specifications. Units that do not pass all test criteria are quarantined and not shipped. Warranty claims are processed within 5 business days of receipt of the returned unit.
