Bently Nevada 330104-00-16-10-02-CN Industrial Network Interface for 3300 XL Systems

Bently Nevada 330104-00-16-10-02-CN: Industrial Data Link for 3300 XL Smart Factory Networks

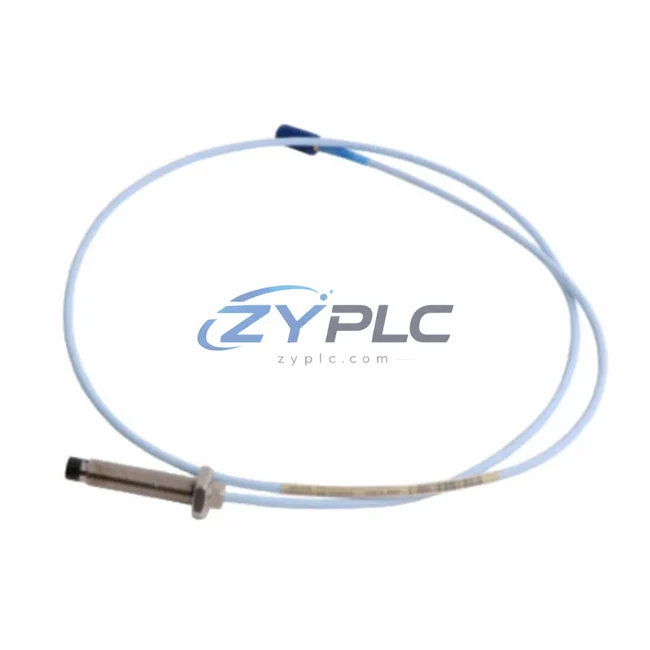

The Bently Nevada 330104-00-16-10-02-CN is a precision eddy current proximity probe engineered for the 3300 XL Series vibration monitoring system. Designed to deliver continuous, real-time shaft displacement and vibration data from rotating machinery, this probe forms the critical first node in the industrial data chain — converting mechanical motion into reliable electrical signals that feed directly into condition monitoring networks, SCADA platforms, and predictive maintenance systems across smart factory environments.

In modern industrial facilities, the integrity of rotating equipment — turbines, compressors, pumps, and motors — depends on uninterrupted signal acquisition at the machine level. The 330104-00-16-10-02-CN proximity probe operates on the eddy current principle, providing non-contact, gap-based measurement with exceptional linearity and frequency response. Its output signal is processed by the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 series), which conditions the raw probe signal into a standardized voltage output compatible with downstream monitoring hardware and industrial communication gateways.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330104-00-16-10-02-CN sits at the origin of a multi-layer industrial data architecture. At the field level, the probe continuously measures rotor displacement and feeds its analog signal through a matched extension cable into the Bently Nevada 330130-040-00-00 Proximitor Sensor. The Proximitor converts the raw eddy current signal into a buffered DC voltage output — typically in the –24 VDC range — which is then routed into the 3300/16-channel monitor rack for digitization and threshold processing.

Within the 3300 XL rack, alert and danger setpoints are managed locally, but the real power of this system emerges when the rack is networked. Using the 3300/55 Communication Gateway Module or a dedicated Modbus TCP/IP interface card, the vibration data is transmitted upstream to a plant DCS or SCADA server. In facilities running GE System 1 software, the 330104-00-16-10-02-CN data stream integrates seamlessly, enabling trend analysis, spectrum plots, and orbit displays on operator HMI workstations in real time.

For plants leveraging OPC-UA architecture, an edge gateway — such as a Moxa MGate MB3480 or Kepware KEPServerEX OPC server — bridges the 3300 XL Modbus output to the OPC-UA namespace, making vibration data available to MES and ERP layers without protocol barriers. Industrial Ethernet switches from the Phoenix Contact FL SWITCH series or Hirschmann MICE family extend the network reach to remote compressor stations or offshore platforms, where the 330104-00-16-10-02-CN probe data is monitored alongside process variables from Yokogawa CENTUM VP or Emerson DeltaV DCS systems.

In drive-intensive applications, the probe data is correlated with speed feedback from ABB ACS880 or Siemens SINAMICS G120 variable frequency drives, enabling the control system to detect resonance conditions and trigger protective shutdowns before mechanical damage occurs. Alarm events generated by the 3300 XL monitor are forwarded via hardwired relay outputs or digital fieldbus to the plant safety PLC — typically a Rockwell Automation ControlLogix L8x or Siemens S7-400H — ensuring that vibration exceedances are captured in the plant’s safety instrumented system log and acted upon within milliseconds. Remote I/O modules such as the Rockwell 1734 POINT I/O or Siemens ET 200SP further extend the data collection perimeter, feeding additional sensor channels into the same SCADA backbone that aggregates the 330104-00-16-10-02-CN vibration stream.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is the fragmentation of condition monitoring data. Vibration sensors, temperature transmitters, pressure transducers, and flow meters often operate on incompatible protocols — 4–20 mA, HART, Modbus RTU, Profibus DP — creating data silos that prevent plant-wide visibility. The Bently Nevada 330104-00-16-10-02-CN, integrated within the 3300 XL monitoring architecture, directly addresses this challenge by standardizing vibration data output through a unified communication gateway accessible to any SCADA or historian platform supporting Modbus TCP/IP or OPC-DA/UA.

This eliminates the need for manual data collection rounds and enables continuous, automated condition monitoring across all rotating assets simultaneously. Plants that previously relied on periodic vibration checks with handheld analyzers can transition to permanent online monitoring, dramatically reducing the risk of unplanned downtime and enabling production line transparency from field device to enterprise dashboard.

Remote diagnostics capability is another key advantage. With the 330104-00-16-10-02-CN data streamed to a cloud-connected historian or remote monitoring center, maintenance engineers can analyze vibration trends, identify bearing wear signatures, and schedule predictive maintenance interventions without being physically present at the machine. This is particularly valuable for unmanned substations, remote pumping stations, and offshore installations where on-site inspection is costly and logistically complex.

System scalability is built into the 3300 XL architecture. Additional proximity probe channels can be added to the monitoring rack without disrupting existing data flows, and the network infrastructure — Modbus gateways, OPC servers, industrial Ethernet switches — scales horizontally to accommodate new assets as the plant expands. Every 330104-00-16-10-02-CN probe added to the network contributes to a more complete, transparent picture of plant health, supporting the transition from reactive to predictive maintenance strategies.

All units supplied by ZYPLC are pre-shipment tested for signal linearity, output voltage accuracy, and cable integrity. Each 330104-00-16-10-02-CN is backed by a warranty terms confirmed during quotation and ships with full traceability documentation, supporting quality management requirements under ISO 9001 and IEC 61511 frameworks. Availability is confirmed via RFQ for shipment arranged after confirmation with competitive lead times to global destinations.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 3300 XL system when integrated with a SCADA platform via Modbus TCP/IP?
The 3300 XL monitor updates its Modbus registers consistent with its internal sampling cycle, typically delivering data refresh intervals of 100–500 ms depending on channel count and gateway configuration. For standard SCADA polling cycles of 1–5 seconds, this latency is negligible and does not impact alarm response or trend accuracy.

Q2: Is the 330104-00-16-10-02-CN compatible with third-party signal conditioners or non-Bently Nevada Proximitor sensors?
The 330104-00-16-10-02-CN is optimized and calibrated for use with Bently Nevada 3300 XL Proximitor Sensors. While the eddy current principle is universal, using third-party signal conditioners may affect calibration accuracy and system certification. ZYPLC recommends maintaining the matched Bently Nevada probe-Proximitor pairing for guaranteed performance and warranty coverage.

Q3: How does the 3300 XL system maintain network stability in electrically noisy industrial environments?
The 3300 XL architecture incorporates differential signal transmission, shielded cable assemblies, and isolated power supplies to reject common-mode electrical noise from VFDs, high-voltage switchgear, and welding equipment. The 330104-00-16-10-02-CN probe cable is fully shielded, and the Proximitor sensor provides additional signal buffering before data enters the network layer, ensuring stable Modbus and OPC-UA communication even in harsh plant environments.

Q4: What warranty and pre-shipment testing documentation is provided with each unit?
Every 330104-00-16-10-02-CN unit supplied by ZYPLC undergoes pre-shipment functional testing covering signal output linearity, cable continuity, and connector integrity. A warranty terms confirmed during quotation is included from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Test reports and traceability certificates are available upon request for quality-critical and safety-instrumented applications.
