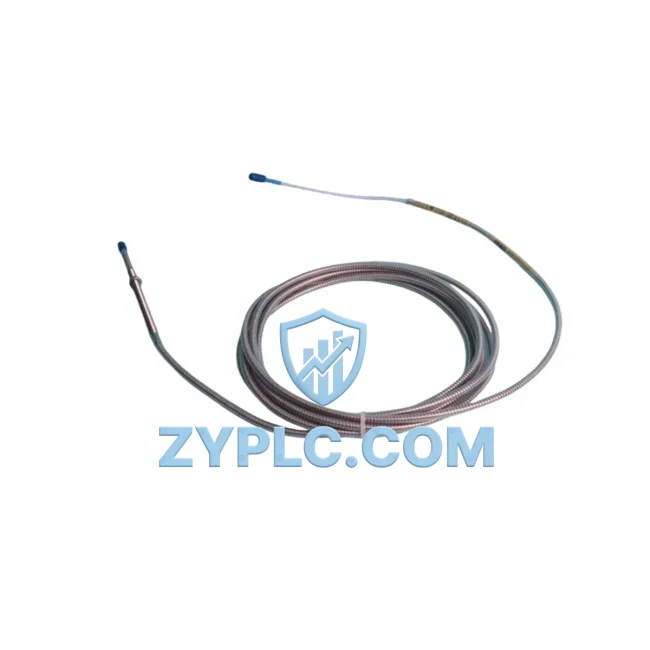

Bently Nevada 330104-00-16-50-02-00 Proximity Probe for 3300 XL Systems

Bently Nevada 330104-00-16-50-02-00 Proximity Probe for 3300 XL Systems: availability, compatibility, and sourcing support

The Bently Nevada 330104-00-16-50-02-00 Proximity Probe is a precision eddy-current sensing device engineered for continuous, non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery. As a core component of the 3300 XL Series monitoring architecture, this probe delivers high-fidelity analog signals that feed directly into the industrial data chain — from field-level signal acquisition through protocol conversion, network transmission, real-time SCADA visualization, alarm management, and remote diagnostics. In smart factory environments where machine health data must flow seamlessly across every layer of the automation pyramid, the 330104-00-16-50-02-00 serves as the critical first node in the vibration data pipeline.

With a 16-inch (406 mm) cable extension, 5-meter (50-ohm) armored extension cable, and a standard 8 mm tip diameter, this probe is optimized for installation in tight bearing housings, compressor casings, steam turbines, and large motor drive trains. Its output sensitivity of 200 mV/mil (7.87 V/mm) ensures that even sub-micron shaft movements are captured with the resolution required by modern condition monitoring platforms. The probe operates within the standard Bently Nevada driver supply range of -18 VDC to -24 VDC, making it fully compatible with the 3300 XL 8mm Proximitor Sensor and the broader 3300 Series signal conditioning ecosystem.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the 330104-00-16-50-02-00 Proximity Probe is the signal origin point for a multi-layer data flow that spans from the machine shaft to the enterprise monitoring dashboard. The probe is mounted adjacent to the rotating shaft and continuously transmits an analog voltage signal proportional to the gap distance between the probe tip and the target surface. This raw signal is received by the Bently Nevada 3300 XL Proximitor Sensor, which conditions and amplifies the output before passing it downstream.

From the Proximitor, the conditioned signal enters the Bently Nevada 3500/42M Proximitor I/O Module housed within the 3500 Series monitoring rack. The 3500 rack acts as the central signal aggregation and processing hub, collecting vibration data from multiple probes — including complementary Bently Nevada 330130-080-00-00 Velocity Transducers and 330180-X1-05 Thrust Position Probes — and converting them into digital data streams. The rack’s built-in communication interfaces support Modbus RTU and Modbus TCP/IP output, enabling direct integration with plant-level SCADA systems such as GE iFIX, Wonderware System Platform, or Siemens WinCC.

For facilities running distributed control architectures, the 3500 rack output can be routed through an industrial Ethernet gateway — such as the Moxa MGate MB3480 or equivalent Modbus-to-EtherNet/IP converter — to bridge the vibration data onto the plant’s main Ethernet backbone. This allows the 330104-00-16-50-02-00’s measurement data to be consumed by Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers for interlock logic, automated shutdown sequences, and predictive maintenance triggers. Simultaneously, the data stream feeds into Bently Nevada System 1 EVO software for long-term trend analysis, spectral waveform review, and alarm threshold management.

At the field network layer, remote I/O modules — such as the Rockwell Automation 1756-IB16 ControlLogix I/O — can be configured to receive discrete alarm outputs from the 3500 rack, enabling local HMI panels and operator workstations to display real-time bearing condition status. The complete data chain — from the 330104-00-16-50-02-00 probe tip to the SCADA historian — ensures that every micron of shaft movement is captured, transmitted, processed, and archived with zero data isolation.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial plant operations is the fragmentation of machine health data across incompatible systems. Legacy vibration monitoring installations often rely on standalone recorders or proprietary analog panels that cannot communicate with modern DCS or SCADA platforms. The result is data isolation: critical machinery condition information exists in silos, invisible to the control room, the maintenance team, and the enterprise asset management system.

The Bently Nevada 330104-00-16-50-02-00, when deployed within the 3300 XL / 3500 Series ecosystem, directly addresses this problem. Its analog output is universally compatible with standard signal conditioning hardware, and the 3500 rack’s Modbus TCP/IP interface provides a standardized, protocol-agnostic bridge to any modern SCADA, DCS, or cloud-based IIoT platform. Plants running mixed-vendor environments — combining Bently Nevada vibration monitors with Emerson DeltaV DCS, ABB 800xA, or Honeywell Experion PKS — can integrate the 330104-00-16-50-02-00 data stream without custom engineering, using standard OPC-DA or OPC-UA server configurations.

For remote monitoring applications, the 3500 rack’s network output can be tunneled through a Cisco IE-2000 Industrial Ethernet Switch or similar managed switch to a secure VPN gateway, enabling off-site engineers to access real-time vibration waveforms, alarm logs, and trend data from any location. This capability is essential for multi-site operators managing fleets of rotating equipment across geographically dispersed facilities. The 330104-00-16-50-02-00 thus becomes not just a sensor, but a data source that drives production line transparency, reduces unplanned downtime, and supports the continuous improvement cycles that define Industry 4.0 operations.

System expansion is equally straightforward. Additional 330104-00-16-50-02-00 probes can be added to existing 3500 racks by populating spare I/O slots, with no changes required to the SCADA configuration beyond adding new data tags. This scalability makes the 3300 XL probe system the preferred choice for phased plant upgrades, where monitoring coverage is expanded incrementally as budget and operational windows allow.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 330104-00-16-50-02-00 in a SCADA-integrated system?
The 330104-00-16-50-02-00 outputs a continuous analog signal with no inherent digital latency. When integrated via the Bently Nevada 3500 rack and Modbus TCP/IP interface, end-to-end data latency from probe to SCADA historian is typically under 100 milliseconds, well within the requirements of real-time machinery protection and alarm response systems.

Q2: Is the 330104-00-16-50-02-00 compatible with non-Bently Nevada signal conditioners or third-party monitoring systems?
Yes. The probe’s standard eddy-current output (200 mV/mil, –18 to –24 VDC supply) is compatible with any signal conditioner designed for 8 mm eddy-current probes operating on the Bently Nevada driver standard. Third-party systems from Metrix, Wilcoxon, and similar manufacturers can accept this signal with appropriate driver matching. For full protocol compatibility and System 1 EVO integration, the Bently Nevada 3300 XL Proximitor is recommended.

Q3: How does the 330104-00-16-50-02-00 support network stability in high-vibration industrial environments?
The probe’s armored extension cable and robust connector design are engineered to maintain signal integrity in environments with high ambient vibration, electromagnetic interference, and temperature cycling. The 3300 XL system’s differential signal architecture further rejects common-mode noise, ensuring stable, accurate data transmission even in electrically noisy plant environments such as motor control centers and variable frequency drive (VFD) installations.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 330104-00-16-50-02-00 unit supplied by ZYPLC undergoes full functional verification prior to shipment, including gap voltage output testing, cable continuity verification, and connector integrity inspection. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement and technical support are available through our dedicated industrial automation team.
