Bently Nevada 330104-00-17-10-01-CN 3300 XL Proximity Transducer

Bently Nevada 330104-00-17-10-01-CN 3300 XL Proximity Transducer: Replacement and Sourcing Information

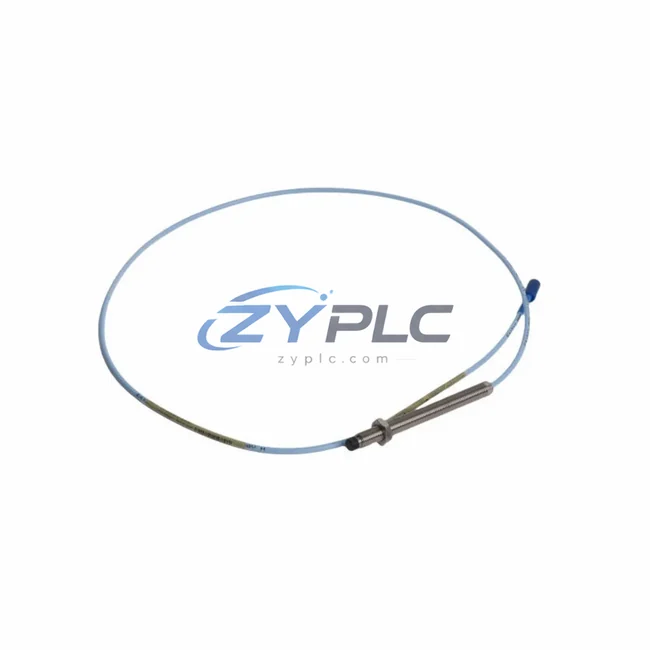

The Bently Nevada 330104-00-17-10-01-CN is a high-performance eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed to deliver real-time shaft displacement and vibration data with exceptional accuracy, this transducer plays a central role in reducing unplanned downtime, optimizing motor drive efficiency, and enabling predictive maintenance strategies across rotating machinery-intensive production environments. Whether deployed in turbines, compressors, pumps, or gearboxes, the 330104-00-17-10-01-CN provides the foundational sensing layer that allows plant engineers to make data-driven decisions that directly reduce unplanned downtime and extend equipment service life.

Product Specification Table

System Compatibility and Application

In a modern industrial maintenance planning architecture, the 330104-00-17-10-01-CN proximity transducer serves as the primary sensing node for shaft radial position and dynamic vibration. It connects directly to the Bently Nevada 3300/16 Dual Voting Logic Monitor or the 3300/20 Four-Channel Monitor, which processes raw displacement signals and triggers protective actions when vibration thresholds are exceeded — preventing catastrophic failures that consume enormous amounts of energy in emergency shutdowns and restart cycles.

The transducer’s output integrates seamlessly with Bently Nevada System 1 asset performance management software, where vibration trends are correlated with process variables such as load, speed, and temperature. This correlation allows engineers to identify inefficient operating zones — for example, a compressor running at resonance frequency — and adjust drive parameters accordingly via the connected Rockwell Automation PowerFlex 755 variable frequency drive or a Siemens SINAMICS G120 drive, reducing motor load by bringing the machine back to its optimal efficiency curve.

For facilities running distributed control architectures, the 330104-00-17-10-01-CN pairs effectively with Bently Nevada TDXnet communication modules, enabling vibration data to be transmitted over standard Ethernet/IP or Modbus TCP networks to a central DeltaV DCS or Allen-Bradley ControlLogix PLC. This integration allows the control system to dynamically adjust production line pacing — slowing down a drive during low-demand periods or redistributing load across parallel machines — supporting earlier maintenance decisions and reducing unplanned downtime risk.

On the I/O and signal conditioning side, the transducer works in conjunction with the Bently Nevada 3300 XL 8mm Proximitor Sensor and dedicated signal conditioners to ensure clean, noise-free displacement readings even in high-EMI environments typical of large motor control centers. Accurate signal integrity at this level prevents false trips that would otherwise force unnecessary machine restarts — each of which carries a significant energy penalty during motor acceleration.

For HMI visualization, vibration data from the 330104-00-17-10-01-CN can be displayed on a Siemens SIMATIC HMI TP1200 Comfort Panel or integrated into a GE iFIX SCADA dashboard, giving operators real-time visibility into shaft behavior and operating load trends across the production floor. This visibility is critical for shift-level maintenance planning, allowing operators to identify and address inefficient machine states before they escalate into costly failures.

Maintenance and Replacement Notes

The practical energy impact of deploying the Bently Nevada 330104-00-17-10-01-CN becomes most evident in continuous-process industries such as petrochemical refining, power generation, and large-scale HVAC systems. In these environments, rotating machinery operates around the clock, and even a 1–2% improvement in mechanical efficiency translates into significant annual operational stability.

Consider a centrifugal compressor train running with a slightly misaligned shaft. Without accurate proximity sensing, the misalignment goes undetected until vibration levels trigger a manual inspection — by which point the machine may have been consuming 5–8% more energy than its design specification for weeks or months. The 330104-00-17-10-01-CN, continuously monitoring shaft displacement at sub-micron resolution, detects the developing misalignment early. Maintenance teams can schedule a corrective alignment during a planned production window, avoiding both the unplanned downtime of degraded operation and the far greater energy cost of an emergency shutdown and restart.

In motor-driven pump applications, the transducer’s data feeds directly into pump efficiency calculations within System 1 software. When shaft vibration patterns indicate cavitation or impeller wear, the system can recommend a reduction in pump speed via the connected VFD — reducing operating load while maintaining required flow rates. This closed-loop approach to maintenance planning, anchored by accurate proximity sensing, is a cornerstone of modern industrial maintenance planning programs.

From a production line pacing perspective, the 330104-00-17-10-01-CN contributes to takt time optimization by ensuring that critical rotating assets remain within their optimal operating envelopes. Machines that run smoothly and efficiently maintain consistent throughput rates, reducing the energy cost per unit of production. Over a 12-month operating period, facilities that have deployed comprehensive 3300 XL monitoring systems report measurable reductions in both maintenance labor costs and energy expenditure — outcomes that directly support corporate sustainability and operational efficiency targets.

All units supplied by ZYPLC undergo rigorous outgoing inspection and functional testing prior to shipment, ensuring that the transducer’s sensitivity, linearity, and temperature compensation characteristics meet OEM specifications. This testing protocol protects your investment and ensures that the maintenance planning benefits described above are realized from day one of installation.

Product Sourcing FAQ

Q1: How does the 330104-00-17-10-01-CN contribute to measurable operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables early detection of mechanical faults such as misalignment, imbalance, and bearing wear — all of which cause machines to consume more energy than their design specifications. Early detection allows corrective action before unplanned downtime becomes significant, and integration with VFDs enables real-time speed adjustments that keep motors operating at peak efficiency.

Q2: Is the 330104-00-17-10-01-CN compatible with existing 3300 XL monitoring infrastructure?
Yes. This transducer is a direct OEM-compatible replacement for the Bently Nevada 3300 XL series. It is designed to work with existing 3300 XL monitors, Proximitor sensors, and System 1 software without requiring hardware or software modifications, making it a straightforward upgrade or replacement in established monitoring architectures.

Q3: What is the recommended replacement interval, and how does timely replacement affect energy efficiency?
Bently Nevada recommends periodic calibration verification for proximity transducers in critical service. A transducer with degraded sensitivity or linearity will underreport vibration levels, masking developing faults and allowing machines to operate inefficiently for extended periods. Replacing aging transducers with a verified unit like the 330104-00-17-10-01-CN ensures that your monitoring system maintains its full protective and maintenance planning capability.

Q4: What warranty and testing assurances does ZYPLC provide with this unit?
