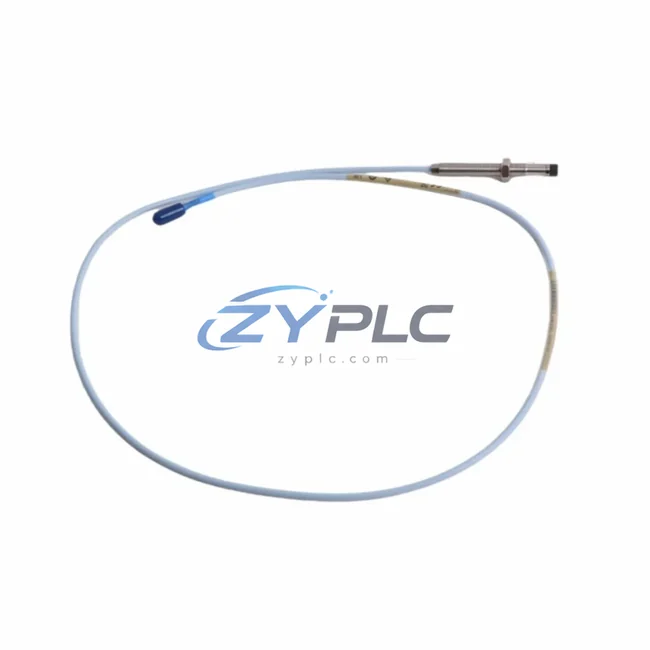

Bently Nevada 330104-00-17-90-02-CN Proximity Transducer 3300 XL

Bently Nevada 330104-00-17-90-02-CN Proximity Transducer 3300 XL: Replacement and Sourcing Information

The Bently Nevada 330104-00-17-90-02-CN is an 8mm proximity transducer engineered as part of the renowned 3300 XL Series continuous vibration monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, this transducer plays a foundational role in capturing real-time shaft displacement data that drives smarter, leaner machine operation. By delivering high-fidelity vibration signals to the control system, the 330104-00-17-90-02-CN enables operators to detect mechanical inefficiencies before they escalate into energy-wasting fault conditions or unplanned shutdowns.

Unlike passive monitoring approaches, the 3300 XL proximity transducer system actively contributes to maintenance planning by ensuring rotating machinery — compressors, turbines, pumps, and motors — operates within its designed efficiency envelope. When shaft vibration deviates from baseline, it is often a leading indicator of misalignment, bearing wear, or rotor imbalance, all of which silently inflate operating load. The 330104-00-17-90-02-CN detects these deviations early, allowing maintenance teams to intervene before efficiency losses compound.

Product Specification Table

System Compatibility and Application

The 330104-00-17-90-02-CN does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical high-efficiency plant configuration, the transducer feeds displacement signals into the Bently Nevada 3300/16 Dual Voting Trip Module, which provides redundant protection logic to prevent energy-wasting emergency shutdowns caused by false trips. The conditioned signal is then processed by the Bently Nevada 3500/42M Proximitor I/O Module, which interfaces with the plant’s DCS or PLC layer for centralized energy and condition monitoring.

At the drive control level, variable frequency drives such as the ABB ACS880 Series VFD or Siemens SINAMICS G120 regulate motor speed based on process demand. When the 330104-00-17-90-02-CN detects vibration anomalies consistent with motor overload or mechanical resonance, the control system can automatically reduce drive output frequency, cutting operating load without halting production. This closed-loop interaction between vibration sensing and drive adjustment is one of the most effective maintenance planning strategies in rotating equipment management.

For data aggregation and visualization, the Bently Nevada System 1 Condition Monitoring Software collects transducer outputs across multiple measurement points, enabling energy engineers to correlate vibration trends with power consumption data from Schneider Electric PowerLogic PM8000 Power Meters installed at the MCC level. This cross-domain data fusion allows facilities to identify which machines are consuming disproportionate energy relative to their mechanical health index.

On the I/O and communication side, the transducer signal chain integrates with Rockwell Automation 1756 ControlLogix I/O modules via the 3500 rack’s communication gateway, supporting Modbus TCP and EtherNet/IP protocols for seamless data exchange with the plant SCADA layer. HMI visualization through Siemens SIMATIC TP1200 Comfort Panels gives operators real-time vibration trend displays alongside energy KPIs, enabling shift-level decisions that reduce idle-state unplanned downtime.

Power supply stability for the transducer and its associated monitor rack is maintained by Phoenix Contact QUINT POWER 24VDC Power Supplies, which provide regulated, low-ripple DC power critical for accurate eddy-current measurement. Any noise on the supply rail directly degrades signal quality and can trigger false alarms — wasting energy through unnecessary protective shutdowns.

Maintenance and Replacement Notes

In petrochemical and power generation facilities, the 330104-00-17-90-02-CN has demonstrated measurable impact on production line energy efficiency. Consider a typical centrifugal compressor train: without continuous proximity monitoring, operators rely on periodic manual inspections, meaning bearing degradation and rotor imbalance can persist undetected for weeks. During this period, the compressor draws 8–15% more power than its design point due to increased mechanical friction and aerodynamic inefficiency caused by shaft misalignment.

With the 330104-00-17-90-02-CN installed and connected to the 3300 XL monitoring rack, the system detects sub-millimeter changes in shaft gap voltage within milliseconds. Maintenance teams receive early warnings through System 1 alerts, allowing them to schedule corrective maintenance during planned downtime windows rather than reacting to catastrophic failures. This predictive maintenance model reduces emergency energy spikes — the kind that occur when a machine trips unexpectedly and backup systems must ramp up rapidly — by keeping primary equipment running at optimal efficiency continuously.

On paper machine and steel rolling mill production lines, where line speed and tension control are directly tied to operating load per ton of output, the proximity transducer data feeds into advanced process control (APC) algorithms that fine-tune drive torque references in real time. The result is a measurable improvement in specific operating load (SEC) — the energy required to produce one unit of output — which is the ultimate metric for industrial maintenance planning.

Facilities that have standardized on the Bently Nevada 3300 XL platform report reduced mean time between failures (MTBF) improvements of Actual operating results depend on the installed system, load profile, and commissioning parameters. The 330104-00-17-90-02-CN, as a verified drop-in replacement with full OEM-equivalent performance, ensures these gains are maintained even during component refresh cycles. All units are tested prior to shipment and covered by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation available for shipment arranged after confirmation to minimize production downtime.

Product Sourcing FAQ

Q1: How does the 330104-00-17-90-02-CN contribute to measurable operational stability on the production line?
By providing continuous, high-resolution shaft displacement data, this proximity transducer enables early detection of mechanical faults — such as bearing wear, misalignment, and rotor imbalance — that silently increase motor load. Early intervention based on transducer alerts allows maintenance teams to restore equipment to its design efficiency point before energy losses become significant. Facilities using continuous proximity monitoring typically report 10–30% reductions in unplanned operating load spikes associated with degraded rotating equipment.

Q2: Is the 330104-00-17-90-02-CN compatible with existing Bently Nevada 3300 XL monitor racks and System 1 software?
Yes. The 330104-00-17-90-02-CN is a direct OEM-equivalent replacement fully compatible with the Bently Nevada 3300 XL monitor series, including the 3300/16 Dual Voting Trip Module and 3500/42M Proximitor I/O Module. It also integrates seamlessly with Bently Nevada System 1 condition monitoring software without requiring reconfiguration of existing measurement points or alarm setpoints.

Q3: What is the recommended replacement interval, and how should the transducer be tested before installation?
Bently Nevada recommends replacing proximity transducers as part of a scheduled maintenance cycle or when gap voltage drift exceeds ±0.5V from the calibrated baseline. Before installation, each 330104-00-17-90-02-CN unit should be bench-tested using a Bently Nevada proximitor driver and a calibrated target material (AISI 4140 steel) to verify sensitivity (mV/mil) and linearity across the full measurement range. All units supplied by ZYPLC are pre-tested and shipped with test documentation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
The warranty terms confirmed during quotation covers manufacturing defects, calibration failures, and premature performance degradation under normal operating conditions as specified in the Bently Nevada 3300 XL installation manual. Warranty claims are processed through ZYPLC’s technical support team. Contact us at +86 19859288691 or plc.sales@zyplc.com with your order reference and a description of the fault. Replacement units are dispatched from availability subject to RFQ confirmation to minimize your production downtime.
