Bently Nevada 330104-01-05-10-02-00 Proximity Probe for 3300

Bently Nevada 330104-01-05-10-02-00 Proximity Probe for 3300 Series Automation

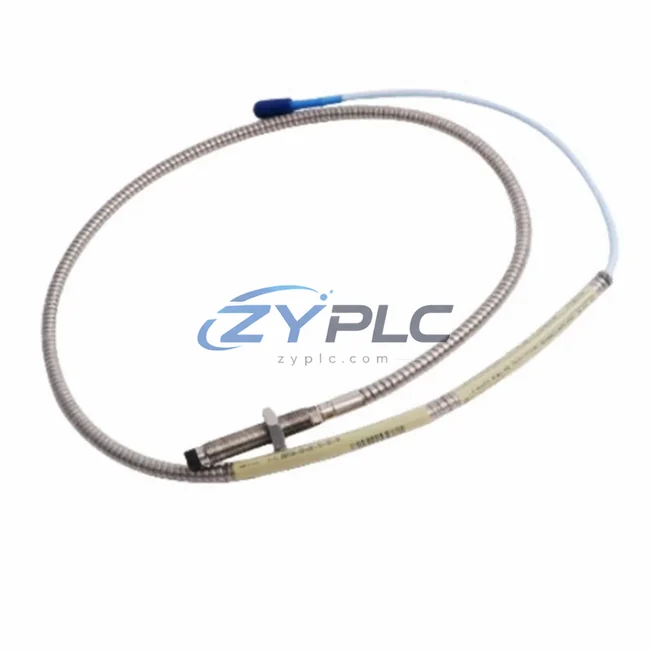

The Bently Nevada 330104-01-05-10-02-00 is a high-performance eddy-current proximity probe engineered for the 3300 Series vibration monitoring platform. Designed for continuous, non-contact measurement of shaft displacement and vibration in rotating machinery, this probe plays a critical role in reducing unnecessary energy consumption, preventing unplanned downtime, and optimizing the operational efficiency of industrial production lines. Whether deployed in turbines, compressors, pumps, or gearboxes, the 330104-01-05-10-02-00 delivers precise, real-time data that enables smarter maintenance planning and predictive maintenance strategies.

Product Specification Table

System Compatibility and Application

In a modern industrial maintenance planning architecture, the Bently Nevada 330104-01-05-10-02-00 proximity probe serves as the primary sensing element at the machine level. It works in close coordination with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Driver to form a complete eddy-current measurement chain. The driver conditions the raw probe signal into a calibrated voltage output, which is then fed into the Bently Nevada 3500/40M Proximitor I/O Module — a rack-based signal processor that converts displacement data into actionable vibration alerts.

At the control layer, the vibration data is transmitted via Modbus TCP or FOUNDATION Fieldbus protocols to a GE Fanuc 90-30 PLC or a Siemens S7-300 CPU, where logic routines evaluate shaft behavior against pre-defined energy efficiency thresholds. When abnormal vibration patterns are detected — often a symptom of bearing wear, rotor imbalance, or misalignment — the PLC triggers corrective actions through connected ABB ACS880 Variable Frequency Drives (VFDs), which modulate motor speed to reduce mechanical stress and cut unnecessary power draw.

For drive-level energy regulation, the Siemens SINAMICS G120 frequency inverter is commonly paired in the same control cabinet, managing motor acceleration and deceleration profiles to minimize inrush current and optimize energy consumption during production cycle transitions. The Bently Nevada 3500/22M Transient Data Interface captures high-resolution transient events — such as machine startups and coast-downs — providing engineers with the data needed to fine-tune drive parameters for maximum efficiency.

At the HMI and SCADA layer, operators monitor real-time vibration trends and energy KPIs through a Siemens SIMATIC TP1200 Comfort Panel, which displays shaft displacement waveforms, alarm histories, and energy consumption dashboards side by side. This integrated visibility allows maintenance teams to correlate vibration anomalies with energy spikes, enabling faster root-cause analysis and more targeted corrective actions.

Power quality at the panel level is monitored by a Schneider Electric PowerLogic PM5000 Power Meter, which tracks real-time kWh consumption, power factor, and harmonic distortion. When the 330104-01-05-10-02-00 detects elevated vibration — indicating mechanical inefficiency — the power meter data confirms the corresponding energy penalty, creating a closed-loop feedback system between mechanical condition and electrical consumption. This architecture ensures that every component, from the proximity probe tip to the energy meter display, contributes to a measurable reduction in total facility energy cost.

Maintenance and Replacement Notes

In continuous process industries such as petrochemical refining, power generation, and heavy manufacturing, undetected shaft vibration is one of the leading causes of both unplanned downtime and catastrophic equipment failure. A rotor running with even 50 microns of excess vibration can increase bearing friction losses by 8–15%, translating directly into elevated motor current draw and higher electricity bills — often without any visible symptom until a bearing fails.

The Bently Nevada 330104-01-05-10-02-00 addresses this problem at the source. By providing continuous, high-resolution shaft displacement data with a frequency response up to 10,000 Hz, it enables the control system to detect developing faults — such as oil whirl, rub, or unbalance — weeks or months before they escalate into failures. Maintenance teams can schedule corrective work during planned shutdowns rather than reacting to emergency stops, eliminating the energy and productivity losses associated with unplanned downtime.

On production lines where multiple rotating assets operate in sequence, the probe’s data feeds directly into production rhythm optimization algorithms. By monitoring the vibration signature of each machine in the line, engineers can identify bottlenecks caused by mechanical degradation — for example, a compressor running rough due to impeller wear — and adjust upstream and downstream equipment speeds via VFD control to maintain optimal throughput without overloading any single asset. This approach reduces peak energy demand, smooths production cycle times, and extends the service life of all connected equipment.

From an inventory and supply chain perspective, the 330104-01-05-10-02-00 is maintained RFQ Available and undergoes full functional testing prior to shipment, including signal linearity verification and gap voltage calibration checks. Each unit ships with a warranty terms confirmed during quotation, backed by documented test records. This ensures that replacement probes can be installed with confidence during planned maintenance windows, minimizing the risk of re-work and the associated energy costs of repeated machine startups.

Product Sourcing FAQ

Q1: How does the 330104-01-05-10-02-00 contribute to measurable operational stability in a rotating machinery application?
By providing continuous, high-accuracy shaft displacement data, this proximity probe enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear — all of which increase friction losses and motor current draw. Early intervention through VFD speed adjustment or scheduled maintenance directly reduces energy consumption and prevents the high energy cost of emergency restarts after unplanned failures.

Q2: Is the 330104-01-05-10-02-00 compatible with existing 3300 and 3500 Series monitoring systems?
Yes. This probe is fully compatible with the Bently Nevada 3300 XL 8mm driver and extension cable system, and its output signal integrates directly with the 3500 Series monitoring rack I/O modules. It also supports legacy 3300 NSv installations, making it a drop-in replacement for most existing eddy-current measurement chains without requiring recalibration of the entire system.

Q3: What is the recommended replacement interval, and how should the probe be tested before installation?
Bently Nevada recommends inspecting proximity probes during each planned maintenance shutdown, typically every 12–24 months depending on operating environment severity. Before installation, each 330104-01-05-10-02-00 unit should be bench-tested using a 3300 XL driver to verify gap voltage linearity across the full measurement range (0–200 mil). All units supplied by ZYPLC are pre-tested and shipped with test documentation.

Q4: What warranty coverage is provided, and what does it include?
Every 330104-01-05-10-02-00 supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional performance. Warranty coverage includes signal output accuracy, cable integrity, and probe tip condition under normal operating conditions. Units that fail within the warranty period are replaced or refunded, with fast turnaround to minimize production impact.
