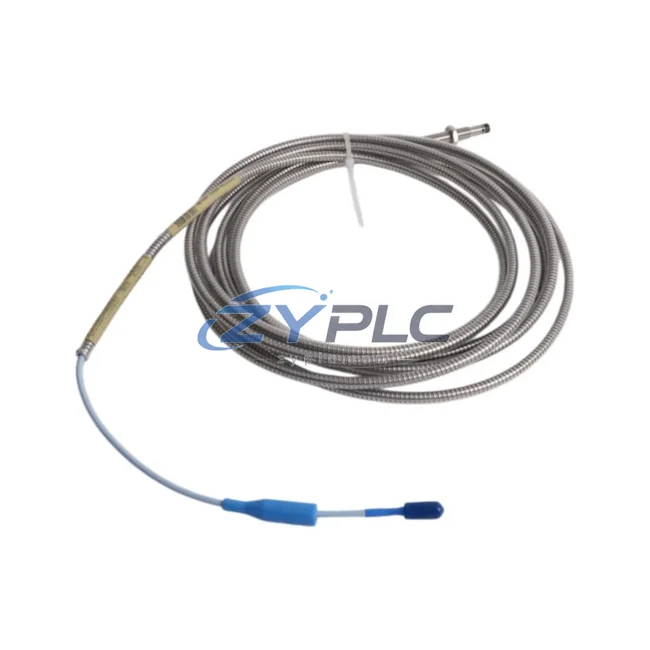

Bently Nevada 330104-01-15-50-02-05 Proximity Probe for 3300 XL

Bently Nevada 330104-01-15-50-02-05 Proximity Probe for 3300 XL

The Bently Nevada 330104-01-15-50-02-05 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 XL Series vibration monitoring architecture. Designed to deliver continuous, high-resolution shaft displacement and radial vibration data, this probe serves as a foundational sensing element across multi-layered industrial automation systems. Its role extends beyond simple signal acquisition — it functions as a critical node within a coordinated control hierarchy that spans the field sensing layer, signal conditioning layer, data acquisition layer, and supervisory control layer. Whether deployed in rotating machinery protection, turbine monitoring, or compressor health management, the 330104-01-15-50-02-05 ensures system-wide measurement consistency and long-term architectural reliability.

In modern industrial control environments, the integrity of the entire monitoring system depends on the precision and compatibility of each sensing component. The 330104-01-15-50-02-05 is factory-calibrated to interface directly with the Bently Nevada 3300 XL proximitor/seismic transducer system, ensuring that signal conditioning, gap voltage, and output linearity remain within specification across the full operating range. This system integration capability eliminates field calibration uncertainty and reduces commissioning time significantly, making it the preferred choice for system architects managing large-scale rotating equipment protection platforms.

Product Specification Table

System Compatibility Notes

The 330104-01-15-50-02-05 proximity probe does not operate in isolation. Its value is fully realized when integrated within a complete Bently Nevada 3300 XL monitoring architecture, where each component is selected for compatibility, signal fidelity, and system-level redundancy. In a typical turbine or compressor protection system, this probe works in tandem with the Bently Nevada 3300/16-24-01-01-00-00 proximitor, which conditions the raw eddy-current signal into a calibrated DC voltage suitable for rack-level processing. The conditioned signal is then routed to the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which performs real-time vibration analysis, alarm management, and relay output for machine trip logic.

At the rack level, the Bently Nevada 3500/20 Rack Interface Module (RIM) manages communication between the monitoring rack and the plant DCS or SCADA system, typically via Modbus TCP or OPC-DA protocol. This ensures that vibration data captured by the 330104-01-15-50-02-05 is available in real time at the supervisory control layer, enabling operators to make informed decisions on machine health without leaving the control room. For redundant architectures, dual-probe configurations using a second 330104-series probe on the opposite radial plane provide 360-degree shaft orbit data, which is essential for advanced diagnostics and API 670 compliance.

Power distribution within the monitoring cabinet is typically handled by the Bently Nevada 3500/15 Power Supply Module, which provides regulated DC power to all rack-mounted modules. Proper power architecture ensures that signal noise from the power rail does not contaminate the low-level analog signals from the proximity probe. In installations where the monitoring system is integrated with a broader plant automation platform — such as a GE Mark VIe turbine control system or a Honeywell Experion PKS DCS — the 3500 rack’s communication gateway bridges the vibration monitoring data into the plant-wide historian and alarm management system.

For installations requiring field junction and signal marshalling, Bently Nevada 3500 I/O terminal blocks and field wiring assemblies are used to organize probe cabling within the control cabinet. Proper cable routing, shielding, and grounding practices are critical to maintaining the signal integrity of the 330104-01-15-50-02-05 over long cable runs in electrically noisy industrial environments. In multi-machine monitoring installations, the Bently Nevada System 1 Evolution software platform aggregates data from multiple 3500 racks, providing a unified view of machine health across the entire plant asset base.

Industrial Application Notes

The 330104-01-15-50-02-05 proximity probe finds application across a broad spectrum of process industries where rotating machinery protection is critical to operational continuity and safety. In power generation facilities, it is deployed on steam turbine shaft monitoring systems to detect radial vibration, shaft eccentricity, and bearing wear in real time, enabling predictive maintenance strategies that reduce unplanned outages. In petrochemical and refinery environments, it monitors centrifugal compressors and pumps operating under continuous duty cycles, where early detection of rotor imbalance or bearing degradation can prevent catastrophic failure and costly production shutdowns.

In LNG liquefaction plants and offshore platforms, the probe’s hazardous area certification and wide operating temperature range make it suitable for installation in classified zones where conventional sensing technologies cannot be used. In steel and metallurgical processing plants, it monitors rolling mill drive shafts and gearbox output shafts, where high radial loads and thermal cycling create challenging measurement environments. In water treatment and pumping stations, it provides continuous monitoring of large vertical turbine pumps and centrifugal blowers, supporting condition-based maintenance programs that extend equipment service life and reduce lifecycle costs.

Across all these applications, the 330104-01-15-50-02-05 contributes to a layered automation architecture where field-level sensing data flows upward through signal conditioning, rack-level processing, network communication, and supervisory visualization layers. This hierarchical data flow enables both real-time machine protection and long-term asset performance management within a single, integrated control system framework.

Product Compatibility FAQ

Q1: Is the 330104-01-15-50-02-05 compatible with both the Bently Nevada 3300 XL and 3500 Series monitoring racks?
Yes. The 330104-01-15-50-02-05 is designed for use with the 3300 XL proximitor system, which in turn interfaces with the 3500 Series monitoring rack. The probe, proximitor, and rack form a calibrated measurement chain. When replacing probes in an existing installation, it is important to verify that the replacement probe’s sensitivity (7.87 V/mm) and cable length match the original configuration to maintain system calibration without requiring a full recalibration of the proximitor module.

Q2: What installation and commissioning considerations apply when integrating this probe into a redundant monitoring architecture?
For redundant radial vibration monitoring per API 670, two probes are installed 90 degrees apart on the same measurement plane. Each probe connects to a separate proximitor and a separate monitor channel within the 3500 rack. During commissioning, gap voltage for each probe should be set to -10 VDC ±0.5 VDC at the nominal shaft gap. Cable routing should ensure that probe extension cables are shielded and grounded at one end only to prevent ground loops. All connections should be verified with a calibrated gap simulator before the machine is brought online.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
All 330104-01-15-50-02-05 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes functional testing prior to dispatch. ZYPLC maintains a dedicated inventory of Bently Nevada 3300 XL series components to support long-term spare parts programs for power generation, petrochemical, and process industry customers. For urgent requirements, expedited shipping is available globally. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 for availability confirmation and system compatibility consultation.
