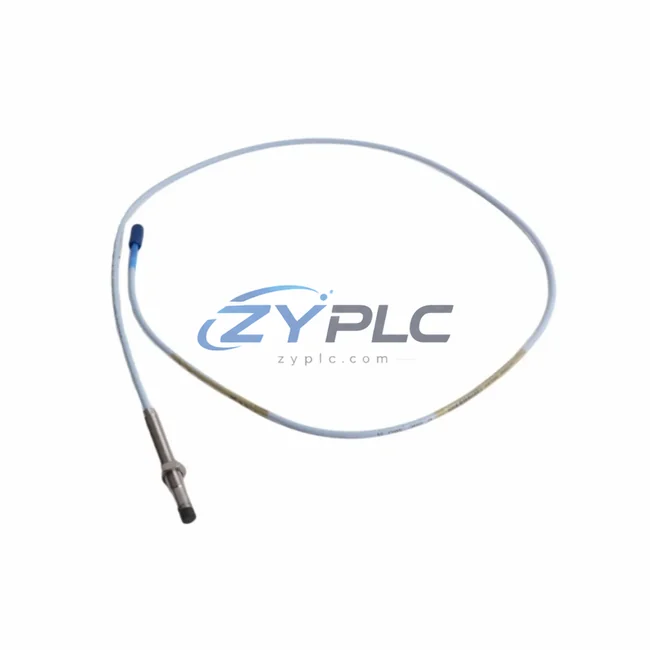

Bently Nevada 330104-01-17-05-01-05 3300 XL Proximity Transducer

Bently Nevada 330104-01-17-05-01-05 3300 XL Proximity Transducer: Precision Vibration Sensing for Industrial Data Links

In modern smart manufacturing environments, real-time machine health data is the foundation of every reliable production line. The Bently Nevada 330104-01-17-05-01-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered to deliver continuous, high-fidelity vibration and radial position signals from rotating turbomachinery — feeding critical data into the plant’s broader condition monitoring and predictive maintenance network.

Unlike passive sensors that simply output raw analog values, the 330104-01-17-05-01-05 operates as an active element within a complete measurement chain. It works in conjunction with the Bently Nevada 3300 XL Extension Cable and a compatible 3300 XL Proximitor Sensor (such as the 330180 series) to convert shaft displacement into a calibrated DC voltage signal. This signal is then routed to the Bently Nevada 3500 Rack Monitoring System — a modular platform that aggregates vibration, position, speed, and temperature data from multiple measurement points across the machine train.

Within the 3500 system, dedicated I/O modules process the transducer output and make it available to plant-level SCADA and DCS platforms via standard communication protocols. Integration with Rockwell Automation ControlLogix PLCs or Siemens S7-400 controllers is common in large turbomachinery installations, where the PLC handles protective relay logic while the condition monitoring system manages trend analysis and alarm management. The 330104-01-17-05-01-05 sits at the very beginning of this data chain — its measurement accuracy directly determines the quality of every downstream decision.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330104-01-17-05-01-05 proximity transducer is not an isolated component — it is the sensing node of a structured industrial data architecture. In a typical turbomachinery protection installation, the transducer is mounted radially at the bearing housing, connected via a Bently Nevada 330130 Extension Cable to a 330180-X1-05 Proximitor Sensor mounted in a junction box. The Proximitor converts the eddy-current field disturbance into a linear voltage output, which is then wired into a Bently Nevada 3500/40M Proximitor I/O Module housed within the 3500 rack.

The 3500 rack’s communication gateway module — typically the 3500/92 Communication Gateway — bridges the analog measurement world with the plant’s digital network. It exposes real-time vibration amplitude, gap voltage, and 1X/2X vector data to upstream systems via Modbus TCP or OPC-UA, enabling seamless integration with GE iFIX SCADA, Wonderware System Platform, or Emerson DeltaV DCS. Operators at the control room HMI — such as a Siemens TP1500 Comfort Panel — can view live shaft orbit plots, trend curves, and alarm states without any manual data entry.

For facilities running Rockwell Automation PlantPAx process automation systems, the 3500 gateway’s Ethernet/IP adapter allows the ControlLogix PLC to read transducer health data directly into its tag database, enabling coordinated protective shutdown logic that responds within milliseconds to a high-vibration event. This tight integration between the 330104-01-17-05-01-05 measurement chain and the plant control network is what transforms a simple proximity sensor into a smart factory data node.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented condition monitoring setups — standalone vibration analyzers that log data locally, paper-based inspection rounds, and alarm systems that cannot communicate with the main DCS. The result is data isolation: critical machine health information exists in silos, invisible to production planners, maintenance schedulers, and reliability engineers until a failure has already occurred.

Deploying the Bently Nevada 330104-01-17-05-01-05 as part of a fully networked 3300 XL / 3500 monitoring architecture directly addresses this problem. Continuous analog signals from the transducer are digitized, timestamped, and transmitted to the plant historian in real time. Maintenance teams can configure alert thresholds for overall vibration level, 1X amplitude growth, and DC gap voltage drift — receiving automatic notifications via the SCADA alarm server before a bearing reaches a critical wear state.

Remote diagnostics become possible when the 3500 system is connected to the plant’s industrial Ethernet backbone. A reliability engineer working off-site can access live orbit plots and spectrum data through a secure OPC-UA connection, compare current readings against baseline signatures captured during commissioning, and issue a work order before the next scheduled shutdown window. This shift from reactive to predictive maintenance reduces unplanned downtime, extends mean time between failures, and lowers the total cost of ownership for rotating equipment across the entire facility.

Every unit of the 330104-01-17-05-01-05 supplied by ZYPLC undergoes pre-shipment functional testing to verify output sensitivity, gap voltage linearity, and cable continuity. Stock is maintained in our warehouse to support urgent replacement requirements, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Industrial Connectivity FAQ

Q1: Is the 330104-01-17-05-01-05 compatible with the Bently Nevada 3500 monitoring rack?
Yes. This transducer is part of the 3300 XL Series and is fully compatible with the Bently Nevada 3500/40M Proximitor I/O Module. It requires a matching 3300 XL Proximitor Sensor and extension cable to complete the measurement chain before connecting to the 3500 rack.

Q2: What communication protocols does the 3300 XL system support for SCADA integration?
The 3300 XL transducer outputs an analog signal processed by the Proximitor Sensor. When integrated with the Bently Nevada 3500 rack and its 3500/92 Communication Gateway, the system supports Modbus TCP, OPC-UA, and Ethernet/IP, enabling direct integration with SCADA, DCS, and PLC platforms.

Q3: Can this transducer be used as a direct replacement for an existing 330104 series unit?
Yes, provided the cable length, gap range, and Proximitor model are compatible. The 330104-01-17-05-01-05 suffix encodes specific cable and connector configurations. Please verify your existing system’s extension cable length and Proximitor model before ordering. Our technical team can assist with cross-referencing.

Q4: What warranty and testing does ZYPLC provide for this unit?
All Bently Nevada 330104-01-17-05-01-05 units shipped by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including sensitivity verification and output linearity checks. Availability confirmed by RFQ units typically ship within 1–3 business days.
