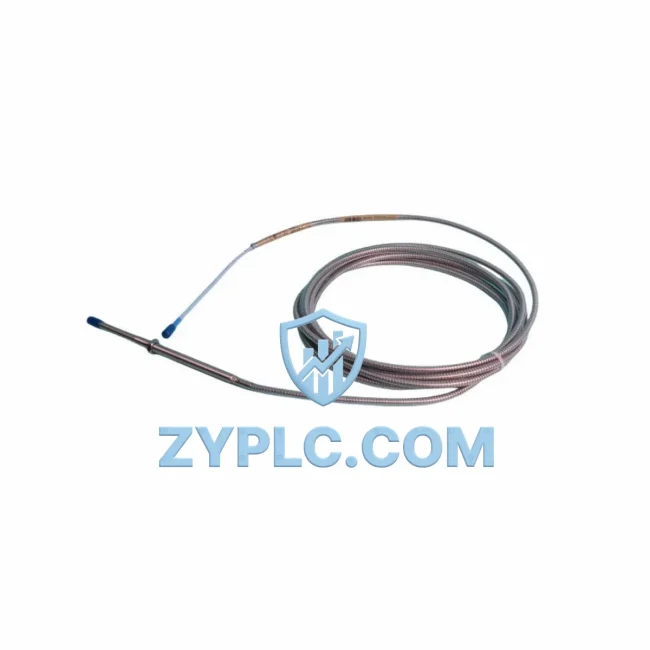

Bently Nevada 330104-06-16-10-02-00 Proximity Transducer System for 3300 Series

Bently Nevada 330104-06-16-10-02-00: Industrial Data Link for 3300 Series Vibration Monitoring Networks

The Bently Nevada 330104-06-16-10-02-00 is a precision proximity transducer engineered for continuous, real-time vibration and position monitoring in rotating machinery environments. As a core sensing node within the Bently Nevada 3300 Series ecosystem, this transducer delivers high-fidelity analog signals that feed directly into plant-wide industrial data networks — bridging the gap between physical machine behavior and digital control infrastructure. Whether integrated into a DCS backbone, a SCADA supervisory layer, or a distributed PLC architecture, the 330104-06-16-10-02-00 ensures that critical shaft displacement and vibration data flows without interruption across every tier of the automation hierarchy.

In modern smart factory deployments, the value of a proximity transducer extends far beyond simple signal generation. The 330104-06-16-10-02-00 operates as a precision data source at the field device layer, where its eddy-current sensing technology captures sub-micron shaft movement and transmits a linearized voltage output to the Bently Nevada 3300/16 Proximitor Signal Conditioner. From there, conditioned signals are routed to the 3500 Series Machinery Protection System rack, which performs real-time threshold comparison, alarm logic, and trip relay activation — all within microseconds. This tight integration between sensing, conditioning, and protection hardware forms the backbone of a reliable industrial network communication chain.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330104-06-16-10-02-00 sits at the origin of a sophisticated industrial data flow that spans from raw mechanical motion to enterprise-level analytics. At the field level, the transducer’s probe tip is mounted within 1–2 mm of the rotating shaft, continuously sensing radial displacement. The resulting analog voltage signal travels through the armored extension cable to the Bently Nevada 3300/16 Proximitor, which conditions and amplifies the signal for downstream processing.

The conditioned output is then wired into the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, housed within the 3500 Series rack. This module performs real-time gap, 1X, and 2X vector analysis, comparing live readings against pre-configured alarm and danger setpoints. When thresholds are exceeded, the 3500/20 Rack Interface Module (RIM) communicates trip and alarm states to the plant DCS — typically a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA system — via hardwired relay contacts or Modbus TCP/IP through an industrial Ethernet gateway.

For facilities running GE System 1 Evolution software, the 330104-06-16-10-02-00 data stream is aggregated alongside inputs from Bently Nevada 3300 XL 8mm Proximity Transducers and 3300 RAM Proximity Transducers, enabling multi-channel orbit plots, trend analysis, and predictive maintenance scheduling. The System 1 platform connects to the plant SCADA layer — such as Wonderware InTouch, Ignition SCADA, or Siemens WinCC — via OPC-DA or OPC-UA protocol bridges, ensuring that vibration data is visible on operator HMI screens in real time.

In parallel, remote I/O modules such as the Rockwell Automation 1756-IB16 or Siemens ET 200SP distributed I/O can relay digital alarm states from the 3500 rack to a central Allen-Bradley ControlLogix or Siemens S7-1500 PLC controller. This PLC layer then executes interlock logic — for example, initiating an emergency shutdown sequence on a centrifugal compressor train when the 330104-06-16-10-02-00 detects shaft displacement beyond the danger setpoint. Variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120 can receive speed-reduction commands from the PLC as part of a coordinated protective response, all triggered by the original proximity signal.

Edge computing nodes — such as the Moxa UC-8112 or Advantech UNO-2484G industrial edge gateway — can subscribe to the OPC-UA data stream from System 1 and apply local machine learning models for anomaly detection, reducing latency between fault detection and corrective action. This edge-to-cloud architecture ensures that the 330104-06-16-10-02-00 contributes not only to real-time protection but also to long-term asset health management across the entire smart factory network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy vibration monitoring equipment often outputs proprietary analog signals that cannot be natively consumed by modern DCS or SCADA platforms, creating data silos that prevent plant-wide visibility. The Bently Nevada 330104-06-16-10-02-00, when deployed within the 3300 Series architecture and connected to the 3500 Series protection rack, resolves this isolation by providing a standardized, conditioned analog output that is universally compatible with industrial signal converters, Modbus gateways, and OPC-UA servers.

For plants operating mixed-vendor environments — where Siemens PLCs manage utilities, Rockwell Automation controllers handle production lines, and Emerson DCS systems oversee process control — the 330104-06-16-10-02-00 data can be normalized through a protocol gateway such as the ProSoft Technology MVI56E-MNET or the Red Lion Data Station Plus. These gateways translate the Bently Nevada analog and relay outputs into Modbus TCP, EtherNet/IP, or PROFINET frames, making vibration data accessible to any controller or SCADA node on the plant network.

Remote monitoring is another critical capability enabled by this integration architecture. With the 330104-06-16-10-02-00 feeding live data into System 1 and onward to a cloud-connected SCADA platform, maintenance engineers can access real-time shaft displacement trends, alarm histories, and spectrum plots from any location — eliminating the need for on-site inspection during routine monitoring cycles. Automated alarm notifications via email or SMS can be configured within the SCADA layer, ensuring that abnormal vibration events trigger immediate response regardless of shift schedules.

Production line transparency is further enhanced by integrating proximity transducer data with MES (Manufacturing Execution System) platforms such as SAP ME or Siemens Opcenter. When the 330104-06-16-10-02-00 reports a developing bearing fault, the MES can automatically generate a work order, adjust production scheduling, and notify the maintenance team — all without manual intervention. This closed-loop integration between field sensing, protection, control, and enterprise systems represents the full realization of Industry 4.0 connectivity, with the 330104-06-16-10-02-00 serving as the critical data origin point.

Industrial Connectivity FAQ

Q1: What communication protocols are supported when integrating the 330104-06-16-10-02-00 into a SCADA or DCS system?
The 330104-06-16-10-02-00 outputs a standard analog voltage signal (-18 VDC nominal) that is processed by the Bently Nevada 3300/16 Proximitor and fed into the 3500 Series rack. The 3500 rack supports Modbus RTU and Modbus TCP/IP communication via the 3500/92 Communication Gateway module, enabling integration with any SCADA, DCS, or PLC platform that supports these protocols. OPC-DA and OPC-UA connectivity is available through Bently Nevada System 1 software, providing seamless data exchange with Wonderware, Ignition, Siemens WinCC, and other HMI/SCADA platforms.

Q2: How does the 330104-06-16-10-02-00 perform in terms of signal latency and network stability?
The eddy-current sensing technology used in the 330104-06-16-10-02-00 provides a continuous, real-time analog output with no sampling delay at the transducer level. Signal conditioning through the 3300/16 Proximitor introduces less than 1 ms of processing latency. The 3500 Series rack performs alarm and trip evaluation at scan rates of up to 20 kHz, ensuring that protective actions are initiated within milliseconds of a fault condition. Network transmission latency depends on the downstream communication architecture but is typically under 10 ms for Modbus TCP/IP connections on a dedicated industrial Ethernet segment.

Q3: Can the 330104-06-16-10-02-00 be used in systems that are expanding from single-machine monitoring to plant-wide vibration networks?
Yes. The 3300 Series architecture is designed for scalability. Additional 330104-06-16-10-02-00 transducers can be added to existing 3500 Series racks by populating additional monitor modules, with each rack supporting up to 16 monitor slots. Multiple racks can be networked together and managed through a single System 1 server, providing a unified view of all monitored assets. For large-scale expansions, the System 1 platform supports hundreds of simultaneous data channels, making it suitable for plant-wide deployment across turbines, compressors, pumps, motors, and gearboxes.

Q4: What quality assurance and warranty coverage is provided with the 330104-06-16-10-02-00?
Every 330104-06-16-10-02-00 unit supplied by ZYPLC undergoes a full functional test prior to dispatch, including gap sensitivity verification, output linearity check, and cable continuity testing. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Global logistics are handled via DHL Express or FedEx International Priority, with full tracking provided from dispatch to delivery. For urgent requirements, expedited shipping and same-day dispatch options are available upon request.

—
