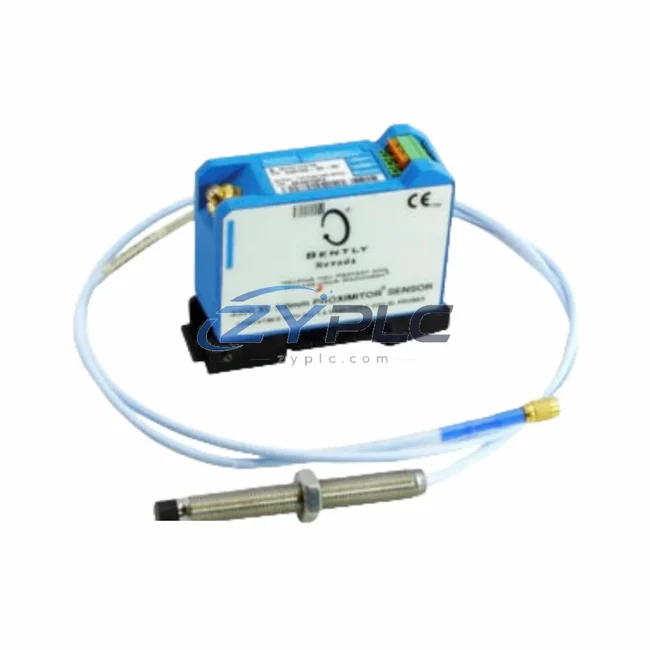

Bently Nevada 330105-02-12-10-12-05 Proximity Probe for 3300 XL Systems

Bently Nevada 330105-02-12-10-12-05 Industrial Network Interface for 3300 XL Systems

In modern smart factory environments, the integrity of rotating machinery data depends entirely on the precision and reliability of the signal chain — from the physical measurement point all the way to the control room. The Bently Nevada 330105-02-12-10-12-05 Reverse Mount Proximity Probe, part of the renowned 3300 XL Series, serves as a critical front-end sensing node in this industrial data architecture. Designed to detect shaft radial vibration, axial position, and rotational speed with sub-micron accuracy, this probe enables continuous, real-time condition monitoring that feeds directly into plant-wide SCADA, DCS, and asset management platforms.

The 330105-02-12-10-12-05 is engineered for demanding industrial environments — turbines, compressors, pumps, gearboxes, and motors — where unplanned downtime carries enormous operational and financial consequences. Its eddy-current sensing technology provides a non-contact, wear-free measurement path, ensuring long-term signal stability without mechanical degradation. When integrated into a complete 3300 XL monitoring loop alongside the 330130 Keyphasor Probe and the 330180 Proximity Sensor, it delivers a synchronized, multi-channel vibration dataset that forms the foundation of predictive maintenance programs.

Compatibility & Integration Notes

Connected Automation Data Flow

The data journey begins the moment the 330105-02-12-10-12-05 probe detects a change in the electromagnetic field surrounding the rotating shaft. This analog signal travels through the extension cable to the 3300 XL Proximitor Sensor, which conditions and scales the raw eddy-current output into a calibrated voltage or current signal. From there, the conditioned signal enters the 3500/42M Proximitor Monitor housed within the 3500 Series Monitoring Rack — a modular platform that aggregates multi-channel vibration, position, and speed data from across the machine train.

Within the 3500 rack, the 3500/20 Rack Interface Module manages internal communication between cards, while the 3500/15 Power Supply Module ensures stable, uninterrupted power delivery to all monitoring channels. The 3500/25 Keyphasor Module, working in conjunction with the 330130 Keyphasor Probe, provides the once-per-revolution phase reference that enables advanced vector analysis — critical for identifying imbalance, misalignment, and resonance conditions in real time.

For plant-level integration, the 3500/92 Communication Gateway translates the rack’s internal data into industry-standard protocols including Modbus TCP, PROFIBUS DP, and Foundation Fieldbus, enabling seamless handoff to the site’s DCS or SCADA platform. The 3500/22M Transient Data Interface captures high-speed transient events — startups, shutdowns, and trips — and routes this data to System 1 Asset Management Software, where engineers can perform spectrum analysis, trend monitoring, and alarm management from a centralized dashboard. Edge gateways and industrial routers further extend this data pipeline to cloud-based analytics platforms, completing the loop from physical sensor to enterprise-level decision support.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy vibration monitoring equipment often operates in isolation — generating valuable data that never reaches the SCADA historian, the maintenance management system, or the operations dashboard. The Bently Nevada 330105-02-12-10-12-05, when deployed as part of a complete 3300 XL / 3500 Series architecture, directly addresses this problem.

By standardizing on the 3500 rack platform and leveraging the 3500/92 Communication Gateway, plant engineers can bridge the gap between field-level vibration sensors and plant-level control networks. Protocol heterogeneity — the coexistence of Modbus, PROFIBUS, and Fieldbus devices on the same network — is resolved at the gateway layer, eliminating data silos and enabling unified monitoring across turbines, compressors, and auxiliary equipment. Remote diagnostics become possible through secure network access to the 3500 rack, allowing condition monitoring specialists to review alarm states, waveform data, and trend histories without being physically present at the machine.

Production line transparency is further enhanced through HMI integration: operators can view real-time vibration trends, gap voltage readings, and alarm status directly on plant floor displays, while SCADA historians archive every data point for long-term reliability analysis. System expansion is straightforward — additional 3300 XL probes and 3500 monitor cards can be added to the existing rack infrastructure without disrupting ongoing operations, protecting the capital investment and supporting phased plant upgrades.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330105-02-12-10-12-05 support for SCADA integration?
The probe itself outputs an analog signal (voltage/current) to the Proximitor and 3500 Series monitor. Protocol conversion to Modbus RTU/TCP, PROFIBUS DP, or Foundation Fieldbus is handled by the 3500/92 Communication Gateway, enabling direct integration with any major SCADA or DCS platform.

Q2: How is network stability ensured in high-vibration or electrically noisy environments?
The 3300 XL eddy-current sensing system uses shielded coaxial cabling and differential signal conditioning to reject common-mode electrical noise. The 3500 rack’s isolated power supply and redundant communication paths further ensure continuous data transmission even in harsh industrial environments.

Q3: Can the 330105-02-12-10-12-05 be integrated into an existing 3500 Series rack without system downtime?
Yes. The 3500 Series rack architecture supports hot-swap module insertion for most card types, and the 3300 XL probe system is fully backward-compatible with existing 3500/42M monitor channels. System expansion can typically be completed during scheduled maintenance windows with minimal impact on production.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
