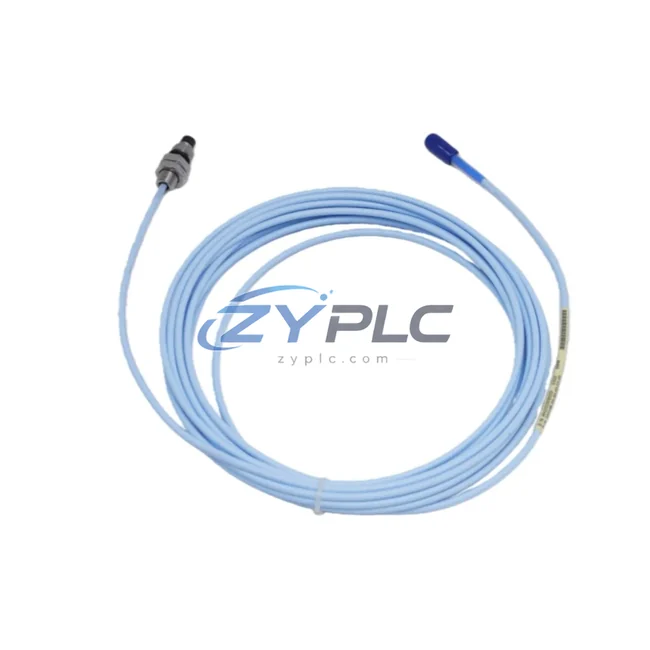

The Bently Nevada 330106-05-30-50-12-CN is a reverse-mount eddy current proximity probe engineered for seamless integration within the Bently Nevada 3300 XL Series vibration monitoring architecture. Designed to deliver continuous, high-resolution shaft displacement and vibration data, this probe serves as a critical sensing node within layered industrial automation systems — connecting the physical machine layer directly to the control and protection layers above it. Its role extends far beyond simple signal generation; it is a foundational element of a coherent, redundant, and maintainable condition monitoring strategy.

In modern industrial facilities — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and rotating equipment-intensive manufacturing — the reliability of machinery protection systems depends on the precision and consistency of every component in the signal chain. The 330106-05-30-50-12-CN is built to meet these demands, offering stable eddy current sensing performance across a wide range of operating environments, with a 5-metre (30-foot) integral cable, 50-mil (1.27 mm) linear range, and a 12-volt negative bias output compatible with the full 3300 XL signal conditioning ecosystem.

Product Specification Table

System Compatibility Notes

The 330106-05-30-50-12-CN does not operate in isolation. Its value is realised through its position within a fully coordinated Bently Nevada 3300 XL system architecture, where every layer — from the sensing element to the control room — is designed to work in concert.

At the signal conditioning layer, the probe pairs directly with the Bently Nevada 330130 Proximitor® Sensor, which converts the raw eddy current signal into a calibrated voltage output representing shaft gap and dynamic vibration. The 330180 Extension Cable bridges the physical distance between the probe tip and the Proximitor® housing, maintaining signal integrity across the full cable run without impedance mismatch. Together, these three components — probe, extension cable, and Proximitor® — form the complete 3300 XL transducer chain.

At the monitoring and protection layer, the conditioned signal feeds into the Bently Nevada 3500/42M Proximitor® Monitor or the 3500/40M Proximitor®/Seismic Monitor, which provide real-time vibration amplitude, phase, and gap measurements. These monitors interface with the plant’s safety instrumented system (SIS) or distributed control system (DCS) via relay outputs and analogue 4–20 mA signals, enabling automated trip actions when vibration thresholds are exceeded.

For facilities operating redundant protection architectures, the 330106-05-30-50-12-CN can be deployed in dual-probe configurations alongside a companion probe such as the Bently Nevada 330104 standard mount probe, providing orthogonal XY vibration measurement on the same shaft journal. This dual-channel arrangement, monitored by a 3500 Series rack with redundant power supplies such as the Bently Nevada 3500/15 Power Supply, ensures that no single component failure can compromise machinery protection coverage.

At the network and communication layer, the 3500 Series rack communicates with plant historians, SCADA systems, and asset management platforms via Modbus TCP, OPC-DA/UA, or Ethernet/IP protocols, depending on the installed communication gateway module. This enables the vibration data captured by the 330106-05-30-50-12-CN to be contextualised alongside process variables — flow, pressure, temperature — for holistic asset health monitoring. The Bently Nevada System 1® Evolution software platform aggregates this data, providing trending, alarm management, and predictive maintenance analytics across the entire rotating equipment fleet.

At the human-machine interface layer, operators interact with vibration data through dedicated HMI panels or integrated DCS displays, where the 330106-05-30-50-12-CN’s measurements appear as real-time trend plots, orbit diagrams, and Bode plots — enabling rapid diagnosis of rotor dynamic anomalies such as unbalance, misalignment, oil whirl, and rub.

This end-to-end system integration — from the probe tip to the control room display — is what distinguishes a properly engineered 3300 XL system from a collection of individual instruments. The 330106-05-30-50-12-CN is the starting point of that signal chain, and its quality, calibration, and compatibility directly determine the reliability of every downstream decision.

Industrial Application Notes

Power Generation: In steam turbine and gas turbine applications, the 330106-05-30-50-12-CN monitors journal bearing vibration and shaft eccentricity at critical measurement planes. Its reverse-mount configuration is particularly suited to confined bearing housing geometries common in large turbogenerator sets, where access for standard-mount probes is restricted. Continuous vibration monitoring at these points enables early detection of rotor instability, bearing wear, and thermal bow — conditions that, if undetected, can result in catastrophic machinery failure and extended unplanned outages.

Petrochemical and Refining: In centrifugal compressor trains and high-speed pump applications, the probe provides the real-time shaft position and vibration data required for API 670-compliant machinery protection. Its compatibility with the 3500 Series monitoring rack allows seamless integration into existing plant safety architectures, supporting both normal operation monitoring and automated shutdown on high-vibration events.

Water and Wastewater Treatment: Large vertical pump motors and blower units in water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation-induced vibration, and bearing degradation. The 330106-05-30-50-12-CN’s robust construction and wide operating temperature range make it suitable for the humid, chemically aggressive environments typical of these installations.

Mining and Minerals Processing: In SAG mill drives, conveyor head pulleys, and large fan applications, the probe supports condition-based maintenance programmes that reduce unplanned downtime in remote or difficult-to-access locations. Its warranty terms confirmed during quotation and ZYPLC’s global supply capability ensure that replacement units are available when needed, minimising mean time to repair (MTTR).

Metallurgy and Steel Production: Rolling mill drives and continuous casting equipment operate under high dynamic loads and thermal cycling. The 330106-05-30-50-12-CN’s high-temperature rating and robust cable construction support reliable operation in these demanding environments, providing the vibration data needed to optimise roll pass schedules and prevent unplanned roll stand failures.

Product Compatibility FAQ

Q1: Is the 330106-05-30-50-12-CN fully compatible with existing 3300 XL Proximitor® Sensors and 3500 Series monitoring racks without additional configuration?
Yes. The 330106-05-30-50-12-CN is a factory-calibrated component of the Bently Nevada 3300 XL transducer system. It is designed for plug-and-play system integration with the 330130 Proximitor® Sensor and the full range of 3500 Series monitors. No additional calibration or signal conditioning adjustment is required when replacing a like-for-like probe within an existing 3300 XL system, provided the extension cable length and target material remain unchanged. ZYPLC recommends verifying the system gap voltage after installation as a standard commissioning step.

Q2: Can this probe be used in a redundant dual-probe XY configuration, and what are the architectural requirements?
Yes. The reverse-mount 330106-05-30-50-12-CN can be paired with a second probe — typically a standard-mount 330104 or another 330106 variant — mounted 90° apart on the same shaft journal to provide orthogonal XY vibration measurement. Each probe requires its own dedicated Proximitor® Sensor and monitor channel within the 3500 Series rack. The rack must be configured with sufficient channel capacity and, for fully redundant protection, dual power supply modules (e.g., 3500/15) should be installed. This architecture ensures that a single probe or Proximitor® failure does not compromise the overall machinery protection function.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and premature failure under normal operating conditions for the full warranty period from the date of shipment. In the event of a warranty claim, ZYPLC provides direct technical support and replacement unit coordination. For long-term maintenance planning, ZYPLC supports RFQ sourcing for the 330106-05-30-50-12-CN and related 3300 XL system components — including Proximitor® Sensors, extension cables, and monitor modules — to support both planned maintenance outages and emergency replacement requirements. Our engineering team is available to assist with system compatibility verification, installation guidance, and spare parts rationalisation for your specific machinery protection architecture.
