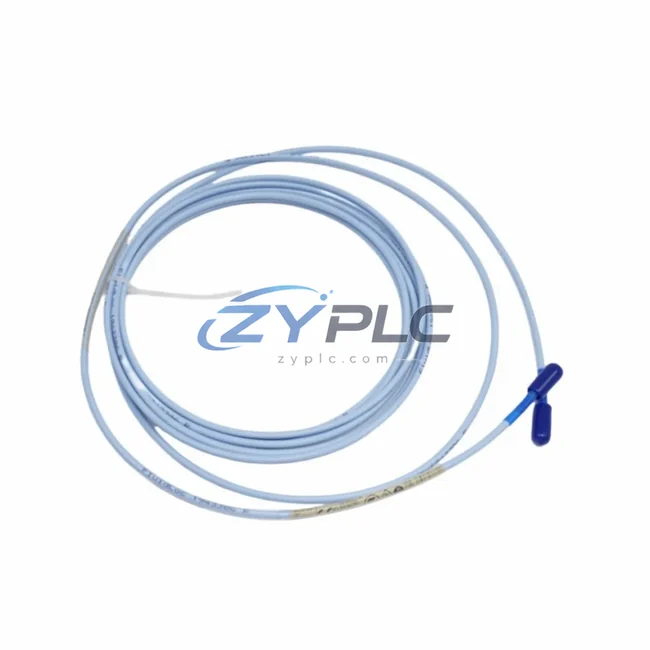

The Bently Nevada 330130-040-12-00 is an 8mm proximity transducer engineered as a core sensing element within the 3300 XL Series continuous vibration monitoring architecture. Rather than functioning as a standalone measurement device, this transducer operates as an integrated node within a layered industrial automation system — connecting the mechanical domain directly to the signal conditioning, processing, and supervisory control layers. Its role spans from raw shaft displacement sensing at the field level through to alarm management and data acquisition at the control room level, making it a foundational component in any rotating machinery protection strategy.

In modern industrial facilities — including power generation plants, petrochemical refineries, offshore platforms, water treatment stations, and heavy metallurgical operations — the integrity of rotating equipment monitoring depends on the seamless coordination of every element in the measurement chain. The 330130-040-12-00 transducer is designed to fulfill this requirement with precision, delivering consistent eddy-current proximity sensing that feeds directly into the 3300 XL monitor rack system. When paired with the Bently Nevada 330180-X1-05 extension cable and the 330130-080-00-00 proximitor/oscillator, the complete measurement loop achieves the signal fidelity required for both steady-state and transient vibration analysis.

Product Specification Table

System Compatibility Notes

The 330130-040-12-00 proximity transducer achieves its full diagnostic value only when integrated within a coherent, multi-layer control architecture. At the field sensing layer, the transducer mounts directly to the bearing housing or proximity probe holder, establishing the primary measurement point for radial shaft vibration and position. The integral 1.0-meter armored cable connects to the Bently Nevada 330180-X1-05 extension cable, which routes the raw signal to the proximitor/oscillator module — typically the 330130-080-00-00 or 330130-080-01-00 — mounted in a junction box or directly at the monitor rack.

At the signal conditioning and processing layer, the proximitor converts the transducer’s impedance change into a calibrated DC voltage output, which feeds into the 3300/16 or 3300/20 monitor cards housed within the 3300 XL rack. These monitor cards perform real-time amplitude and phase analysis, comparing measured values against alarm setpoints configured in the Bently Nevada System 1 condition monitoring software. The rack itself — typically a 3300 XL 19-inch rack assembly — provides the structural backbone for up to 16 monitor channels, with a dedicated 3300/05 power supply module ensuring stable, isolated DC power distribution across all installed cards.

For facilities requiring continuous operation without measurement gaps, the 3300 XL architecture supports redundant monitor configurations. A secondary 330130-040-12-00 transducer can be installed at the same measurement plane, with both channels feeding into a redundant monitor pair. This arrangement ensures that a single transducer failure does not interrupt protection coverage — a critical requirement in turbine-generator sets, compressor trains, and pump systems where unplanned downtime carries significant operational and safety consequences.

At the network and supervisory layer, the 3300 XL rack communicates with the plant DCS or SCADA system via the 3500/92 communication gateway or through Modbus TCP/IP and OPC-DA interfaces supported by System 1 software. This integration allows vibration data from the 330130-040-12-00 measurement loop to appear alongside process variables — temperature, pressure, flow — in the operator HMI, enabling contextual correlation between mechanical condition and process state. The Bently Nevada 3300/55 keyphasor module further enhances this integration by providing shaft speed and phase reference signals that enable vector analysis and balancing diagnostics.

Terminal and wiring infrastructure — including the Bently Nevada 3300 XL terminal board assemblies and shielded twisted-pair cabling — completes the signal chain from transducer to monitor, ensuring electromagnetic compatibility in environments with high-frequency drive noise, motor interference, and ground potential differences common in heavy industrial settings.

Industrial Application Notes

The 330130-040-12-00 proximity transducer is deployed across a wide range of process-critical and safety-critical rotating machinery applications. In power generation facilities, it monitors shaft radial vibration on steam turbines, gas turbines, and generator rotors, providing the early warning data necessary to prevent catastrophic bearing failures and unplanned outages. The transducer’s high-temperature rating and robust armored cable construction make it suitable for installation in the hot sections of turbine pedestals where ambient temperatures routinely exceed 80°C.

In petrochemical and refinery environments, the 330130-040-12-00 is used on centrifugal compressors, boiler feed pumps, and reactor agitators — equipment where API 670 compliance mandates continuous shaft vibration monitoring. The transducer’s eddy-current technology is immune to oil contamination, condensation, and process fluid ingress, ensuring measurement reliability in the harsh conditions typical of these facilities.

Water treatment and municipal utility plants deploy this transducer on large vertical turbine pumps and horizontal split-case pumps, where early detection of rotor imbalance, misalignment, and bearing wear directly impacts water supply reliability. Mining and mineral processing operations use it on SAG mill pinion bearings, slurry pump shafts, and conveyor drive gearboxes, where the combination of high loads, shock vibration, and abrasive environments demands a sensing solution with proven durability.

In metallurgical and steel mill applications, the transducer monitors rolling mill drive shafts and continuous caster roll drives, where precise shaft position measurement is as important as vibration amplitude for product quality control. Packaging and food processing lines use the 3300 XL system — anchored by transducers like the 330130-040-12-00 — to monitor high-speed filling and sealing machine spindles, where vibration-induced misalignment directly affects throughput and product integrity.

Product Compatibility FAQ

Q1: Is the 330130-040-12-00 directly compatible with existing 3300 XL monitor racks, and does it require any additional configuration for system integration?
Yes. The 330130-040-12-00 is a factory-calibrated component of the Bently Nevada 3300 XL Proximity Transducer System and is designed for direct plug-and-play integration with all 3300 XL monitor cards, including the 3300/16 and 3300/20 series. No field calibration is required for standard AISI 4140 steel targets. The monitor card’s gap voltage and sensitivity settings should be verified against the transducer’s published calibration data during commissioning. For non-standard target materials, a field calibration procedure using the Bently Nevada calibration fixture is recommended to ensure measurement accuracy within the specified ±1% linearity tolerance.

Q2: How does this transducer support redundant architecture designs, and what is the recommended configuration for API 670-compliant installations?
For API 670-compliant redundant configurations, two 330130-040-12-00 transducers are installed at the same axial position, offset 90° apart (X and Y planes), each connected to an independent monitor channel within the 3300 XL rack. The rack’s voting logic can be configured to alarm or trip based on either single-channel or dual-channel threshold exceedance, depending on the machinery protection philosophy. This arrangement provides both measurement redundancy and directional vibration vector data, enabling orbit plot analysis through System 1 software. The warranty terms confirmed during quotation covers both transducers in a redundant pair under the same purchase order.

Q3: What is covered under the warranty terms confirmed during quotation, and what support is available for long-term maintenance and spare parts planning?
The warranty terms confirmed during quotation covers all manufacturing defects, calibration drift beyond published specifications, and functional failures under normal operating conditions as defined in the Bently Nevada 330130 series product manual. Physical damage resulting from installation errors, target contact, or chemical attack is excluded. For long-term maintenance planning, we recommend maintaining a minimum of one spare 330130-040-12-00 transducer per monitored machine train, along with a matched spare proximitor and extension cable set. Our technical team provides pre-shipment functional testing documentation and can support integration verification during scheduled plant turnarounds. Contact us at plc.sales@zyplc.com or +86 19859288691 for spare parts planning and bulk procurement support.
