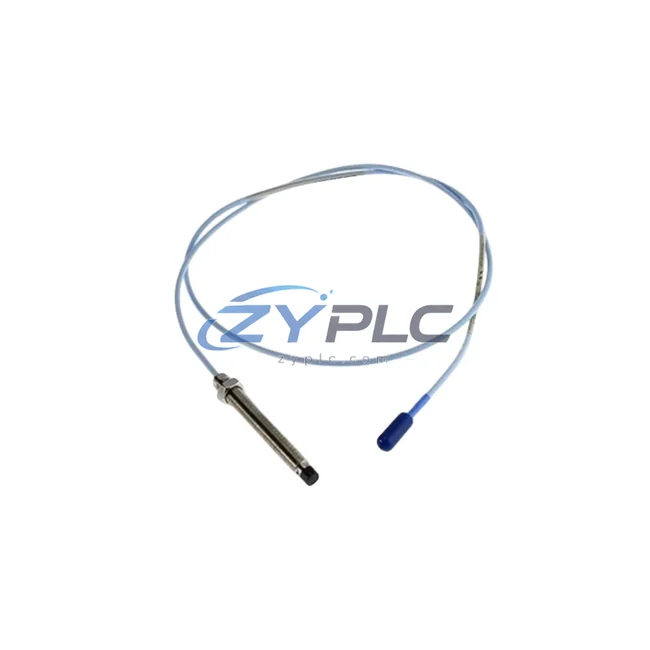

Bently Nevada 330130-045-02-05 Proximity System Extension Cable for 3300 XL Systems

Bently Nevada 330130-045-02-05 Industrial Network Interface for 3300 XL Systems: Precision Data Link for Smart Factory Connectivity

The Bently Nevada 330130-045-02-05 is a high-integrity extension cable engineered for the 3300 XL Proximity System — one of the most trusted vibration and position monitoring platforms deployed across rotating machinery, turbines, compressors, and critical industrial assets worldwide. In the context of modern smart factory architecture, this extension cable is far more than a passive conductor: it forms a critical segment of the real-time data acquisition chain that connects field-level sensors to plant-wide monitoring, SCADA, and predictive maintenance systems.

As industrial facilities transition toward IIoT-enabled operations, the integrity of every signal path — from the proximity probe tip to the control room — becomes a decisive factor in system reliability. The 330130-045-02-05 extension cable ensures that raw vibration and displacement signals generated at the machine shaft are transmitted with minimal attenuation and zero interference to the Bently Nevada 3300 XL Proximitor Sensor, where they are conditioned and converted into standardized analog outputs readable by PLCs, DCS controllers, and edge gateways.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the role of the 330130-045-02-05 requires tracing the complete industrial data flow from the machine surface to the enterprise monitoring layer. At the field level, an eddy-current proximity probe — such as the Bently Nevada 330101 or 330103 series probe — is mounted adjacent to the rotating shaft. The probe generates a high-frequency oscillator signal that varies with the gap distance between the probe tip and the shaft surface. This raw signal travels through the 330130-045-02-05 extension cable to the Bently Nevada 3300 XL Proximitor Sensor, which demodulates and conditions the signal into a DC voltage or 4–20 mA analog output proportional to shaft displacement or vibration amplitude.

From the Proximitor output, the conditioned signal feeds into the Bently Nevada 3500 Series Machinery Protection System rack — a modular, multi-channel monitoring platform that processes vibration, position, speed, and temperature data simultaneously. The 3500 rack communicates with plant DCS and SCADA systems via Modbus TCP, PROFIBUS DP, or OPC-UA gateway modules, enabling real-time data visibility in platforms such as Bently Nevada System 1 Condition Monitoring Software, GE iFIX SCADA, or Wonderware InTouch HMI.

For facilities running Allen-Bradley ControlLogix or CompactLogix PLCs, the analog outputs from the Proximitor are wired into 1756-IF16 or 1769-IF4 analog input modules, where EtherNet/IP communication carries the processed data upstream to the Rockwell Automation FactoryTalk View SCADA environment. Similarly, in Siemens-based architectures, the signal integrates with Siemens S7-300 or S7-1500 PLC analog input cards, with PROFINET or PROFIBUS carrying data to WinCC or TIA Portal visualization layers.

At the edge, industrial IoT gateways — such as the Moxa MGate series or HMS Anybus X-gateway — can bridge the analog Proximitor output to Ethernet-based protocols, enabling cloud-based predictive maintenance analytics. Remote I/O modules from Phoenix Contact or Wago further extend the network reach to distributed monitoring points across large plant footprints. Variable frequency drives (VFDs) monitoring motor shaft vibration via proximity probes also rely on this signal chain to detect imbalance, misalignment, and bearing wear before catastrophic failure occurs.

The result is a seamless, low-latency data pipeline: from the 330130-045-02-05 extension cable at the machine, through the Proximitor and protection rack, across the plant network via industrial Ethernet or fieldbus, and into the SCADA/HMI dashboard — delivering the real-time insight that modern predictive maintenance and smart factory operations demand.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is signal and data isolation — where critical machine health information is trapped at the sensor level, unable to reach plant-wide monitoring systems due to protocol mismatches, aging cabling infrastructure, or incompatible I/O architectures. The Bently Nevada 330130-045-02-05 directly addresses the first and most fundamental link in this chain: ensuring that the proximity probe signal arrives at the Proximitor with full fidelity, free from impedance mismatch, electromagnetic interference, or connector degradation.

When extension cables are substituted with non-OEM alternatives or damaged cables are left in service, the consequences cascade through the entire monitoring system: false vibration alarms, missed trip events, corrupted trend data, and ultimately, unplanned downtime. By maintaining the correct cable length, impedance characteristics, and connector integrity specified by Bently Nevada for the 3300 XL system, the 330130-045-02-05 eliminates this source of data corruption at the root.

Beyond signal integrity, the use of a verified, availability confirmed by RFQ OEM extension cable accelerates system restoration during maintenance windows. Facilities running continuous operations — refineries, power generation plants, petrochemical complexes — cannot afford extended downtime waiting for non-standard cable fabrication. With the 330130-045-02-05 available from verified inventory, pre-shipment tested and backed by a warranty terms confirmed during quotation, maintenance teams can restore full monitoring capability rapidly, keeping production lines transparent and SCADA dashboards populated with accurate, real-time machine health data.

For system integrators expanding monitoring coverage to additional machine trains, the 330130-045-02-05 also supports scalable network extension — adding new proximity measurement points to existing 3500 Series racks without redesigning the signal architecture. This modularity is essential for phased smart factory upgrades, where new monitoring nodes are added incrementally as the IIoT infrastructure matures.

Industrial Connectivity FAQ

Q1: Does the Bently Nevada 330130-045-02-05 introduce signal delay or latency in the proximity measurement chain?
The 330130-045-02-05 is a passive coaxial extension cable and introduces no active processing delay. Signal propagation through the cable is effectively instantaneous relative to the measurement frequencies used in proximity systems (typically DC to 10 kHz). The Bently Nevada 3300 XL Proximitor Sensor performs all signal conditioning, and the system’s overall response time is governed by the Proximitor and downstream 3500 Series monitor — not the extension cable itself.

Q2: Is the 330130-045-02-05 compatible with all Bently Nevada 3300 XL Proximitor models and eddy-current probe assemblies?
Yes. The 330130-045-02-05 is designed specifically for the 3300 XL proximity system family and is compatible with standard Bently Nevada eddy-current probe assemblies operating in the 3300 XL series. Always verify the total system cable length (probe + extension) against the Proximitor’s specified range to ensure correct calibration and measurement accuracy.

Q3: Can this extension cable be used in hazardous area (ATEX/IECEx) installations?
The suitability of the 330130-045-02-05 for hazardous area use depends on the specific installation classification and the associated Proximitor’s certification. Bently Nevada offers proximity system components certified for Zone 1/Zone 2 hazardous areas. Consult the system documentation and your local safety authority to confirm compliance for your specific installation before deployment.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330130-045-02-05 unit shipped from our inventory undergoes pre-shipment functional verification to confirm connector integrity, cable continuity, and impedance characteristics consistent with Bently Nevada OEM specifications. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with documentation supporting traceability, and our technical team is available to support installation verification and system commissioning queries.
