Bently Nevada 330130-070-00-05: Industrial Data Link for 3300 XL Vibration Monitoring Networks

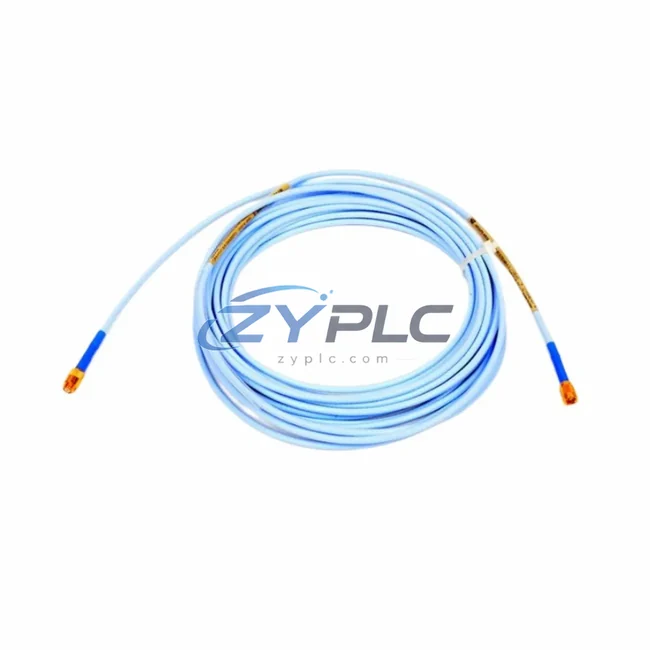

The Bently Nevada 330130-070-00-05 is a precision-engineered proximity extension cable designed for the 3300 XL Series condition monitoring platform. In modern smart factory environments, reliable signal transmission between rotating machinery and the control layer is not optional — it is the backbone of predictive maintenance, real-time diagnostics, and uninterrupted production. This extension cable serves as a critical link in the vibration data chain, connecting proximity probes mounted on turbines, compressors, pumps, and motors to the 3300 XL monitoring rack, ensuring that every micron of shaft displacement is captured, transmitted, and acted upon without signal degradation or communication loss.

Within a typical industrial automation architecture, the 330130-070-00-05 operates between the field-mounted proximity probe — such as those in the Bently Nevada 330101 or 330103 series — and the 3300 XL proximitor/seismic transducer module. The proximitor converts the raw eddy-current signal into a DC voltage proportional to the gap between the probe tip and the rotating shaft. This conditioned signal is then routed through the extension cable to the 3300 XL rack-mounted monitor cards, where it is digitized, processed, and made available to upstream systems including System 1 Evolution condition monitoring software, DCS platforms, and SCADA systems via Modbus TCP, OPC-UA, or 4–20 mA analog outputs.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding where the 330130-070-00-05 sits in the broader automation data flow is essential for system integrators and maintenance engineers. The signal journey begins at the proximity probe tip — typically a Bently Nevada 330101-00-06-10-02-00 or 330103-00-06-10-02-00 probe — which generates a high-frequency eddy-current field around the rotating shaft. The extension cable carries this raw signal from the probe, through the machine casing or bearing housing, to the 3300 XL Proximitor Sensor mounted in a junction box or directly on the rack.

From the proximitor, the conditioned DC voltage signal travels to the 3300 XL Rack Monitor — such as the 3300/20 Radial Vibration Monitor or the 3300/25 Differential Expansion Monitor — where it is compared against alarm setpoints for gap, direct vibration, 1X, and 2X components. When a threshold is exceeded, the monitor card triggers relay outputs that can interface with a Siemens S7-1500 PLC or Allen-Bradley ControlLogix safety interlock system, initiating an automatic shutdown or load reduction sequence.

Simultaneously, the digitized vibration data is transmitted over the plant’s industrial Ethernet backbone — often via a Hirschmann RS20 managed industrial switch or Moxa EDS-408A — to the System 1 Evolution SCADA/condition monitoring server. Here, operators and reliability engineers can view real-time trend data, configure alarm thresholds, and generate predictive maintenance reports. Integration with Emerson DeltaV DCS or Honeywell Experion PKS is achieved through OPC-UA or Modbus TCP gateways, enabling plant-wide visibility of rotating equipment health alongside process variables such as temperature, pressure, and flow.

For remote sites or offshore platforms, an edge gateway — such as the Moxa UC-8112 or Advantech WISE-5231 — can aggregate data from multiple 3300 XL racks and transmit compressed condition monitoring data over 4G LTE or fiber WAN links to a central reliability center, enabling remote diagnostics without dispatching field technicians. This end-to-end data chain — from the 330130-070-00-05 extension cable at the machine to the cloud-based analytics dashboard — represents the full value of industrial connectivity in a smart factory context.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy vibration monitoring installations often rely on proprietary analog wiring schemes that cannot be easily integrated with modern DCS, PLC, or SCADA platforms. The Bently Nevada 3300 XL Series, with the 330130-070-00-05 extension cable as a foundational component, addresses this challenge by providing a standardized, high-integrity signal path that is compatible with both legacy Bently Nevada rack systems and modern digital integration architectures.

Protocol unification is achieved at the rack level: the 3300 XL monitor cards output both analog (4–20 mA, relay) and digital (Modbus TCP, OPC-UA) signals, allowing a single monitoring rack to feed data simultaneously to a legacy DCS analog input card and a modern SCADA OPC server. This eliminates the need for parallel wiring runs or protocol converters at the field level, reducing installation complexity and potential failure points.

Data isolation — where vibration data exists only in the condition monitoring system and is invisible to the process control layer — is resolved through structured data sharing between System 1 Evolution and the plant DCS. Alarm states, vibration amplitude trends, and bearing temperature data can be published to the DCS historian, enabling correlation with process upsets and enabling root-cause analysis across both process and mechanical domains.

For production line transparency, the 3300 XL network supports multi-machine monitoring from a single rack, with each channel independently configurable for gap, direct, 1X, 2X, or not-1X vibration measurements. As production requirements evolve, additional monitor cards can be added to the existing rack without rewiring the field cables — the 330130-070-00-05 extension cable remains in place, and only the rack configuration changes. This modularity supports phased system expansion without production downtime, making it a cost-effective choice for facilities planning long-term reliability program growth.

Pre-shipment testing is conducted on every unit: cable continuity, insulation resistance, and connector integrity are verified before dispatch. Combined with a warranty terms confirmed during quotation, this ensures that the extension cable performs reliably from day one of installation, minimizing commissioning delays and unplanned maintenance events.

Industrial Connectivity FAQ

Q1: What is the maximum signal transmission distance supported by the 330130-070-00-05 extension cable in a 3300 XL system?
The 330130-070-00-05 has a cable length of 7.0 meters (approximately 23 feet). In a complete 3300 XL probe system, the total cable length — probe cable plus extension cable — must not exceed the system’s specified total length to maintain signal accuracy. Bently Nevada specifies total system cable lengths for each probe and proximitor combination; always verify the total system length against the 3300 XL system specification sheet before installation.

Q2: Is the 330130-070-00-05 compatible with both Modbus TCP and OPC-UA SCADA integration?
Yes, but the protocol conversion occurs at the 3300 XL rack monitor level, not at the cable itself. The extension cable carries the raw analog eddy-current signal from the probe to the proximitor. The 3300 XL rack monitors then digitize this signal and make it available via Modbus TCP or OPC-UA through the rack’s communication interface, enabling seamless integration with SCADA platforms such as Wonderware, iFIX, or Ignition.

Q3: How does the 3300 XL system maintain network stability in high-EMI industrial environments?
The 330130-070-00-05 extension cable uses a coaxial construction with shielded conductors to minimize electromagnetic interference from variable frequency drives, high-voltage switchgear, and other EMI sources common in industrial plants. The 3300 XL proximitor provides additional signal conditioning, and the rack monitors include hardware filtering to reject common-mode noise. For installations near high-EMI sources, Bently Nevada recommends routing extension cables in dedicated conduit separated from power cables.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330130-070-00-05 unit undergoes pre-shipment testing including cable continuity verification, insulation resistance measurement, and connector integrity inspection. The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. Warranty claims are supported with documentation of the pre-shipment test results, providing traceability from factory to field installation.
