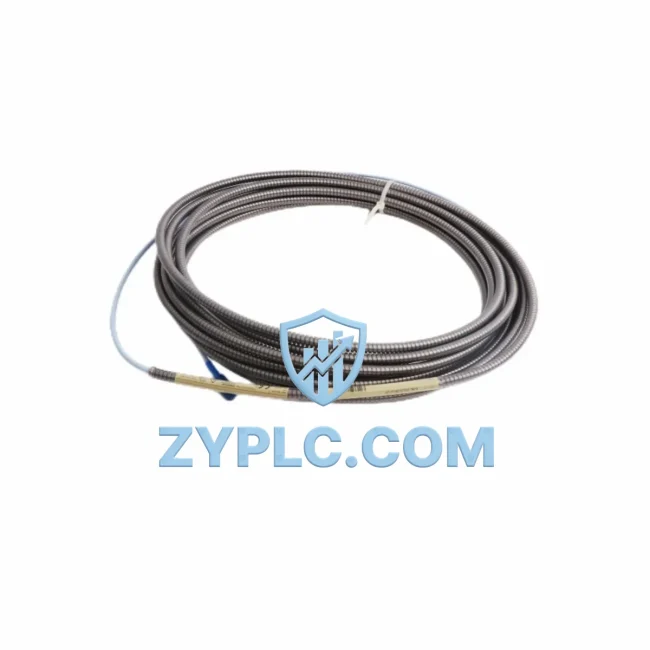

Bently Nevada 330130-080-01-CN Industrial Network Interface for 3500 Series

Bently Nevada 330130-080-01-CN: Industrial Data Link for 3500 Series Vibration Monitoring Networks

The Bently Nevada 330130-080-01-CN is a precision-engineered extension cable designed to serve as a critical physical link within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern smart factory environments, reliable signal transmission between field-mounted proximity probes and the 3500 Series monitoring rack is not merely a hardware requirement — it is the foundation of real-time machine health data flow. This extension cable ensures that raw vibration, position, and speed signals captured at the machine shaft are delivered with full integrity to the 3500 rack’s signal conditioning modules, enabling accurate alarm processing, SCADA integration, and remote diagnostics without signal degradation or data loss.

Industrial connectivity in rotating machinery monitoring depends on every link in the chain performing flawlessly. The 330130-080-01-CN is engineered to maintain signal fidelity across the full cable run, from the proximity probe tip through the extension cable to the 3500 Series proximitor/driver module. This unbroken signal path is what allows the 3500 rack to feed clean, time-stamped vibration data upstream to DCS platforms, historian servers, and SCADA systems such as GE iFIX, Wonderware AVEVA System Platform, or OSIsoft PI — enabling plant-wide transparency and predictive maintenance workflows.

Network Communication Table

Connected Automation Data Flow

Understanding where the 330130-080-01-CN sits within the broader automation data flow is essential for system integrators and reliability engineers. The signal journey begins at the Bently Nevada 330500-02-00 proximity probe, which detects shaft displacement at the machine bearing. The probe’s output travels through the 330130-080-01-CN extension cable to the Bently Nevada 330180-X1-05 proximitor (driver), which conditions the raw eddy-current signal into a usable DC voltage proportional to gap distance.

This conditioned signal is then received by the Bently Nevada 3500/40M proximitor I/O module housed within the 3500 rack. The rack’s internal backplane distributes the signal to the 3500/22M transient data interface and the 3500/92 communication gateway module, which translates the machinery protection data into Modbus TCP or Ethernet/IP frames for transmission to the plant DCS or SCADA layer. At the network level, an industrial managed switch — such as a Hirschmann RS20 or Moxa EDS-308 — routes the Ethernet traffic from the 3500 gateway to the control room historian or to a Rockwell Automation ControlLogix PLC acting as a supervisory data aggregator.

From the PLC, the vibration and position data is forwarded to the SCADA/HMI layer — typically a Wonderware InTouch or GE Cimplicity station — where operators monitor real-time shaft vibration trends, set alarm thresholds, and initiate remote diagnostic sessions. In more advanced IIoT deployments, an edge gateway such as a Moxa UC-8112 or Advantech WISE-5000 may collect the 3500 rack data via OPC-UA and push it to a cloud-based predictive maintenance platform, closing the loop between field sensor and enterprise analytics.

The integrity of this entire data chain — from probe tip to cloud dashboard — depends on the physical signal quality maintained by the 330130-080-01-CN extension cable. A compromised cable introduces noise, offset errors, or signal dropout that propagates through every downstream system, triggering false alarms, masking real faults, or causing SCADA historians to log corrupted vibration baselines.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial machinery monitoring is data isolation — the condition where critical machine health signals remain trapped at the field device level, unable to reach the control room, SCADA system, or enterprise maintenance platform. This isolation typically arises from three root causes: incompatible signal interfaces, degraded physical cabling, and protocol mismatches between legacy monitoring hardware and modern Ethernet-based control networks.

The Bently Nevada 330130-080-01-CN directly addresses the first two causes. By providing a manufacturer-specified, impedance-matched extension cable for the 3500 Series proximity measurement chain, it eliminates the signal integrity issues that arise when non-OEM or incorrectly specified cables are used. Impedance mismatch in the probe-extension-proximitor circuit is a leading cause of measurement error in eddy-current systems, and the 330130-080-01-CN is designed to maintain the precise electrical characteristics required by the 3500 Series signal conditioning modules.

For the third cause — protocol isolation — the 3500 Series architecture addresses this through the 3500/92 Communication Gateway, which bridges the proprietary 3500 rack backplane to standard industrial protocols including Modbus TCP, Ethernet/IP, and OPC-DA. With the physical signal chain secured by the 330130-080-01-CN, the gateway can reliably export clean vibration data to any connected DCS, PLC, or SCADA platform, enabling production line transparency, remote monitoring, and system-wide expansion without requiring hardware replacement of the existing 3500 rack infrastructure.

For plants operating multiple 3500 racks across different machine trains, the standardized cable specification of the 330130-080-01-CN also simplifies spare parts management and reduces the risk of incorrect cable substitution during maintenance windows — a critical consideration for facilities operating under ISO 13373 or API 670 machinery protection standards.

Industrial Connectivity FAQ

Q1: Does the 330130-080-01-CN introduce any communication latency in the vibration monitoring signal chain?
A: As a passive analog extension cable, the 330130-080-01-CN introduces no digital processing latency. Signal propagation delay across the cable length is negligible (nanosecond range) and has no measurable impact on the 3500 Series rack’s alarm response time or data acquisition rate. The rack’s digital processing and Modbus/Ethernet gateway functions operate independently of the cable’s physical characteristics.

Q2: Is the 330130-080-01-CN compatible with all 3500 Series proximitor modules and communication gateways?
A: Yes. The 330130-080-01-CN is designed to the Bently Nevada 3500 Series cable specification and is compatible with all standard 3500 Series proximitor/driver modules, including the 3500/40M, 3500/42M, and 3500/44M I/O modules. It is also fully compatible with the 3500/92 Communication Gateway for Modbus TCP and Ethernet/IP network integration.

Q3: How does cable quality affect network stability and SCADA data integrity in a 3500 Series installation?
A: In eddy-current proximity measurement systems, the extension cable is part of the tuned electrical circuit between the probe and proximitor. Using a non-specified or damaged cable alters the circuit’s resonant frequency and sensitivity, producing measurement errors that appear as false vibration readings in the SCADA historian. These errors can trigger nuisance alarms, corrupt vibration baselines, and undermine predictive maintenance models. The 330130-080-01-CN maintains the correct electrical parameters to ensure SCADA data integrity.

Q4: What warranty and pre-shipment testing does the 330130-080-01-CN carry?
A: Every 330130-080-01-CN unit supplied by ZYPLC carries a 12-month warranty covering manufacturing defects and electrical performance. Units undergo pre-shipment continuity, insulation resistance, and connector integrity testing before dispatch. Global shipping is available via DHL and FedEx with full tracking. RFQ and bulk order inquiries are welcome.
