Bently Nevada 330130-085-01-00 3300 XL Standard Extension Cable 8.5m

Bently Nevada 330130-085-01-00: Industrial Vibration Data Link for 3300 XL Monitoring Systems

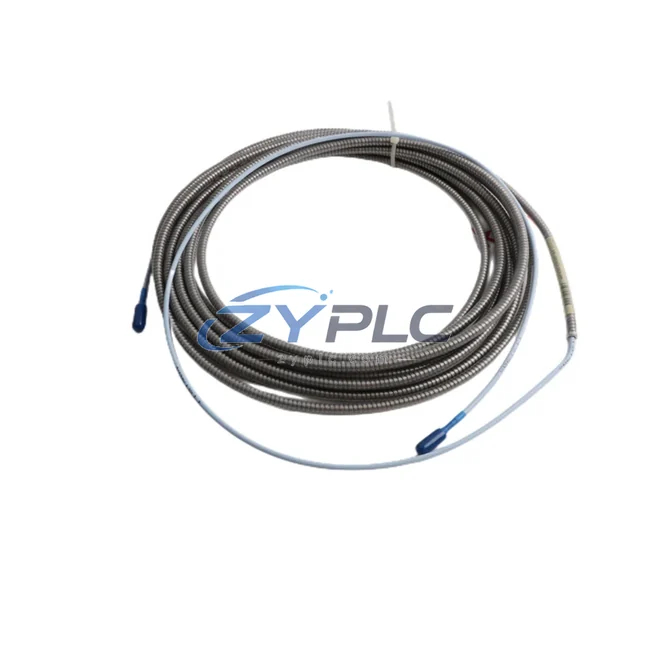

The Bently Nevada 330130-085-01-00 is a 3300 XL Series Standard Extension Cable measuring 8.5 metres, engineered to deliver precision signal transmission between proximity probes and vibration monitoring modules in mission-critical industrial environments. As a core component of the Bently Nevada 3300 XL condition monitoring architecture, this extension cable ensures low-noise, high-integrity data flow from rotating machinery — including turbines, compressors, pumps, and motors — to the monitoring rack, enabling real-time vibration analysis, alarm triggering, and remote diagnostics across the plant network.

In modern smart factory deployments, the integrity of the signal path between a proximity probe and its monitoring module is foundational to the entire predictive maintenance data chain. The 330130-085-01-00 extension cable bridges the physical gap between field-mounted probes and the Bently Nevada 3300 XL Monitor rack, maintaining signal fidelity across the full 8.5m run. This precise cable length is selected to match the system’s calibrated loop resistance and capacitance requirements, ensuring that the 3300 XL system accurately interprets shaft displacement, gap voltage, and vibration amplitude without signal degradation.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330130-085-01-00 extension cable sits at the heart of a layered industrial condition monitoring data chain. At the field level, a Bently Nevada 330101 proximity probe is mounted adjacent to the rotating shaft of a high-speed compressor or steam turbine. The probe generates a continuous analog voltage signal proportional to the gap between the probe tip and the shaft surface. This raw signal travels through the 330130-085-01-00 extension cable — with its precisely controlled 8.5m length ensuring the loop’s total resistance and capacitance remain within the calibrated range — to the Bently Nevada 330180 Proximitor Sensor (driver) mounted in a junction box or local enclosure.

From the Proximitor, the conditioned –24 VDC output signal is routed to the Bently Nevada 3300 XL Monitor or, in more advanced installations, to a Bently Nevada 3500/42M Proximitor Monitor housed in the 3500 Series rack. The 3500 rack communicates with plant-level systems via Modbus RTU, Modbus TCP/IP, or FOUNDATION Fieldbus, feeding real-time vibration amplitude, phase, and gap data to a DeltaV DCS or Emerson Ovation SCADA platform. Operators at the control room HMI — such as a Wonderware InTouch or GE iFIX station — can monitor shaft displacement trends, set alarm thresholds, and initiate protective shutdowns based on the live data stream originating from this cable assembly.

In parallel, the Bently Nevada System 1 Software aggregates vibration data from multiple 3500 rack channels, enabling fleet-wide predictive maintenance analytics, trend analysis, and remote diagnostics. For plants integrating edge computing, an industrial edge gateway (such as a Moxa UC-8100 or Advantech WISE-5000) can collect the Modbus data from the 3500 rack and push it to cloud-based asset performance management platforms. Complementary instruments in the same monitoring loop — including Bently Nevada 330750 temperature sensors and 330500 velocity transducers — share the same rack infrastructure, ensuring a unified data view of machine health across vibration, temperature, and velocity parameters.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is signal integrity loss and data isolation caused by incorrect cable lengths, mismatched components, or protocol fragmentation between field instruments and control systems. The Bently Nevada 330130-085-01-00 directly addresses these issues by providing a factory-calibrated, system-matched extension cable that eliminates the guesswork from field wiring.

Protocol Unification: In plants where legacy 4–20 mA instrumentation coexists with modern Modbus TCP/IP or FOUNDATION Fieldbus networks, the 3300 XL / 3500 Series architecture acts as a protocol bridge. The analog signal from the proximity probe is digitized and re-transmitted in the plant’s preferred protocol, eliminating data silos between the rotating equipment layer and the SCADA/DCS layer.

Remote Monitoring and Alarm Transparency: With the 330130-085-01-00 ensuring clean signal delivery to the 3500 rack, operators gain full remote visibility into shaft vibration trends via System 1 Software or any connected HMI. Alarm setpoints for overall vibration, 1X/2X components, and gap voltage can be configured remotely, and trip signals can be wired directly to the plant’s safety instrumented system (SIS) for automated protective response.

Production Line Transparency and System Expansion: The modular nature of the 3300 XL and 3500 Series systems means that additional monitoring channels — covering more machines or measurement planes — can be added to the existing rack without disrupting live monitoring. Each new channel simply requires a matched probe, driver, and extension cable set (such as the 330130-085-01-00), making system expansion straightforward and non-intrusive.

availability subject to RFQ confirmation and Outgoing Testing: Every 330130-085-01-00 unit supplied by ZYPLC is sourced from verified inventory channels and undergoes pre-shipment inspection to confirm connector integrity, cable continuity, and shield effectiveness. This ensures that the cable performs to Bently Nevada’s published specifications from the moment it is installed in the field.

Industrial Connectivity FAQ

Q1: Can the 330130-085-01-00 be used with both the 3300 XL Monitor and the 3500 Series rack?
Yes. The 330130-085-01-00 is designed for the Bently Nevada 3300 XL Proximity Transducer System and is fully compatible with 3500 Series monitor inputs when used with the appropriate Proximitor driver. Always verify the total system loop resistance and capacitance against Bently Nevada’s calibration curves for the specific probe and driver combination.

Q2: Does cable length affect vibration measurement accuracy?
Yes — cable length directly affects the loop’s total resistance and capacitance, which in turn affects the Proximitor’s output sensitivity and linearity. The 330130-085-01-00 is factory-calibrated for an 8.5m run. Using a different length without recalibration will introduce measurement error. Always use the exact cable length specified in your system design.

Q3: Is the 330130-085-01-00 compatible with SCADA and DCS integration?
The cable itself is a passive analog signal conductor. SCADA and DCS integration is achieved at the 3500 Series monitor rack level, which supports Modbus RTU, Modbus TCP/IP, and FOUNDATION Fieldbus communication. The 330130-085-01-00 ensures that the field signal reaching the rack is clean and accurate, which is the prerequisite for reliable SCADA/DCS data.

Q4: What warranty and support does ZYPLC provide for the 330130-085-01-00?
ZYPLC provides a on all supplied units, covering manufacturing defects and connector integrity. Pre-shipment testing is performed on every unit. Global shipping via DHL and FedEx is available, with typical lead times of 3–7 business days depending on destination. For RFQ, technical support, or bulk orders, contact us at +86 19859288691 or plc.sales@zyplc.com.
