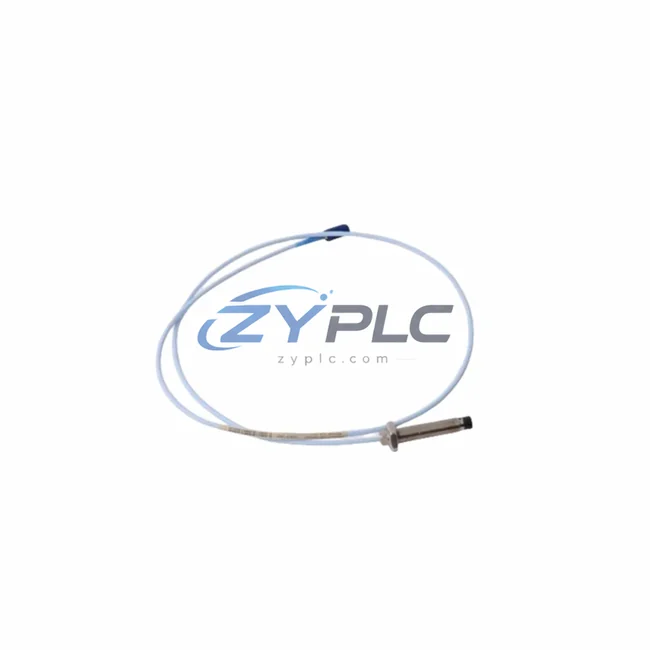

Bently Nevada 330171-20-40-05-02-05 Proximity Transducer for 3300 Systems

Bently Nevada 330171-20-40-05-02-05 Proximity Transducer: Industrial Data Link for 3300 Series Condition Monitoring Networks

The Bently Nevada 330171-20-40-05-02-05 is a precision eddy-current proximity transducer engineered for the 3300 Series vibration monitoring platform. Designed to deliver continuous, high-fidelity displacement and vibration signals from rotating machinery, this transducer forms the critical first node in a smart factory condition monitoring data chain — converting mechanical motion into real-time analog signals that feed directly into Bently Nevada’s 3300 Series monitoring racks, SCADA systems, and plant-wide asset management networks. With a 20 mm probe length, 40 mm extension cable, and a 5-metre armoured interconnect cable, the 330171-20-40-05-02-05 is built for demanding industrial environments where signal integrity, installation flexibility, and long-term reliability are non-negotiable.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory, the 330171-20-40-05-02-05 operates as the signal origin point in a layered industrial data architecture. Installed at the bearing housing of a high-speed turbine or centrifugal compressor, the transducer continuously measures shaft displacement and transmits a calibrated analog voltage signal through its 5-metre armoured cable to the companion 330180-51-05 Proximitor Sensor — the signal conditioning module that powers the probe and converts the raw eddy-current response into a clean, linear output suitable for monitor input.

That conditioned signal enters the 3300 XL 8mm Proximity Transducer System monitor card housed within a 3300 Series rack, where it is digitised, compared against alarm setpoints, and made available to the plant control layer. When integrated with a 3500/22M Transient Data Interface module, the vibration data is simultaneously streamed to a System 1 Evolution asset management platform — Bently Nevada’s flagship SCADA-level software — enabling real-time trending, spectral analysis, and predictive maintenance alerts across the entire rotating equipment fleet.

For facilities running mixed-protocol environments, the 3500 Series rack’s built-in Modbus TCP/IP gateway capability allows the 330171-20-40-05-02-05’s processed data to be forwarded to third-party DCS platforms such as Honeywell Experion or Emerson DeltaV, as well as to plant-floor HMI panels running on Ethernet/IP networks. Remote I/O nodes and edge gateways — such as the Moxa MGate MB3480 or similar industrial protocol converters — can further bridge the vibration data into OPC-UA data streams for cloud-based analytics platforms, completing the loop from physical sensor to enterprise-level dashboards.

In multi-machine monitoring scenarios, the 330171-20-40-05-02-05 is typically deployed alongside the 330130-080-00-00 3300 XL 8mm Proximity Transducer and the 330105-02-12-10-02-00 3300 XL 11mm Proximity Transducer, with each transducer assigned to a dedicated monitor channel within the 3300 rack. The 3500/40M Proximitor/Seismic Monitor module manages up to four transducer channels simultaneously, providing alarm relay outputs that integrate directly with plant-wide safety instrumented systems (SIS) and emergency shutdown (ESD) controllers.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation — where vibration signals from critical rotating assets remain trapped in standalone monitoring racks, invisible to the broader plant control and SCADA infrastructure. The 330171-20-40-05-02-05, when deployed within a fully configured 3300 or 3500 Series monitoring architecture, directly addresses this problem.

Protocol fragmentation is resolved through the 3500 rack’s native Modbus RTU and Modbus TCP/IP communication ports, which allow vibration, position, and alarm data to be polled by any SCADA or DCS platform without custom middleware. For sites requiring higher-bandwidth data paths, the 3500/22M Transient Data Interface provides direct Ethernet connectivity to System 1 Evolution, enabling waveform capture and orbit plot data to be transmitted in real time — eliminating the data latency that traditionally plagued periodic manual inspections.

Remote monitoring and diagnostics are further enhanced by the 3500 rack’s web server interface, which allows maintenance engineers to review channel status, alarm history, and gap voltage readings from any networked workstation or mobile device — without requiring physical access to the monitoring panel. This capability is particularly valuable for offshore platforms, remote compressor stations, and unmanned substations where on-site inspection is costly or impractical.

Production line transparency is achieved by feeding the 330171-20-40-05-02-05’s real-time displacement data into plant KPI dashboards via OPC-UA connectors, giving operations managers a live view of machinery health alongside production throughput metrics. System scalability is ensured by the modular architecture of the 3300 and 3500 Series racks, which support hot-swap monitor cards and incremental channel expansion without process interruption — protecting capital investment as monitoring requirements grow.

Every 330171-20-40-05-02-05 unit supplied by ZYPLC undergoes pre-shipment functional verification, including gap voltage calibration check and cable continuity testing, before dispatch. Stock is maintained for fast DHL/FedEx international delivery, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects.

Industrial Connectivity FAQ

Q1: What communication protocols does the 330171-20-40-05-02-05 support when integrated with the 3500 Series rack?
When connected to a 3500 Series monitoring rack, the processed vibration data from the 330171-20-40-05-02-05 can be accessed via Modbus RTU (RS-485), Modbus TCP/IP (Ethernet), and OPC-DA/OPC-UA through System 1 Evolution software. This makes the transducer’s data natively compatible with most industrial SCADA, DCS, and HMI platforms without additional protocol converters.

Q2: How is network stability maintained in high-vibration or electrically noisy environments?
The 330171-20-40-05-02-05 uses an armoured 5-metre interconnect cable with shielded conductors to minimise electromagnetic interference (EMI) from variable-frequency drives (VFDs), high-current motor cables, and switching power supplies. The eddy-current sensing principle is inherently immune to contamination from oil, dust, and moisture, ensuring stable signal output even in harsh plant environments.

Q3: Can the 330171-20-40-05-02-05 be used with third-party monitoring systems outside the Bently Nevada 3300/3500 platform?
Yes. The transducer produces a standard analog voltage output (gap voltage range –10 to –18 VDC) that is compatible with any monitor accepting eddy-current proximity transducer inputs conforming to API 670 standards. Third-party monitors from vendors such as Metrix, Emerson, or custom-built DAQ systems can interface with the 330171-20-40-05-02-05 provided they supply the correct oscillator/demodulator (Proximitor) excitation voltage.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
ZYPLC’s warranty terms confirmed during quotation covers all manufacturing defects, including probe tip damage from production faults, cable insulation failures, and Proximitor output drift beyond factory specification. Prior to shipment, each unit undergoes gap voltage calibration verification at the nominal 1.0 mm gap point and full cable continuity testing. Units failing any test parameter are quarantined and replaced before dispatch. Warranty claims are processed within 5 business days of receipt of the returned unit.
