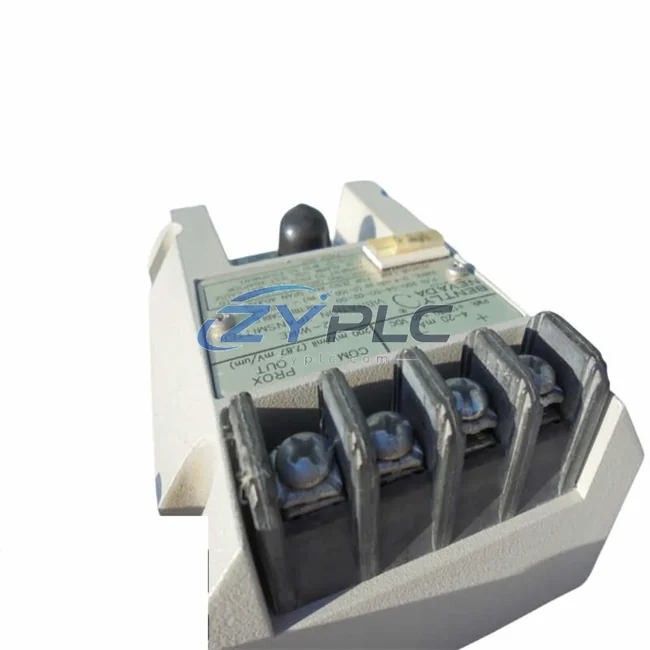

Bently Nevada 330172-16-42-10-01-00 Proximity Sensor for 3300 Series Systems

Bently Nevada 330172-16-42-10-01-00: Industrial Data Link for Smart Factory Vibration Networks

The Bently Nevada 330172-16-42-10-01-00 is a high-precision eddy-current proximity sensor engineered for the 3300 Series machinery protection and condition monitoring platform. Designed to operate at the intersection of field-level signal acquisition and plant-wide industrial network communication, this sensor delivers continuous, real-time vibration and position data across the full automation data chain — from rotating machinery to SCADA dashboards, DCS controllers, and remote diagnostic centers.

In modern smart factory environments, the integrity of the data link between field instruments and upper-level systems is critical. The 330172-16-42-10-01-00 serves as the primary sensing node in a layered industrial network architecture, feeding calibrated displacement signals into the Bently Nevada 3300/16 Monitor and 3500 Series Rack systems, which then transmit structured condition data via Modbus RTU, Modbus TCP/IP, and 4–20 mA analog outputs to connected PLCs, DCS platforms, and SCADA gateways. This multi-protocol compatibility ensures seamless integration across heterogeneous industrial communication environments.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330172-16-42-10-01-00 operates as the sensing origin point in a fully connected industrial automation chain. Mounted on rotating equipment — turbines, compressors, pumps, and motors — it continuously measures shaft displacement and radial vibration, converting mechanical motion into precise electrical signals. These signals are routed through matched Bently Nevada 330130 Extension Cable assemblies to the 3300/16 Proximitor Sensor driver, which conditions and linearizes the output before feeding it into the Bently Nevada 3500/42M Proximitor Seismic Monitor module housed in the 3500 rack.

Within the 3500 rack, the monitor module processes the vibration data and communicates alarm states and process values to the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV — via Modbus TCP/IP over the plant Ethernet backbone. Simultaneously, the 4–20 mA analog outputs interface directly with Siemens S7-300 PLC or Allen-Bradley ControlLogix analog input modules, enabling real-time vibration trending within the PLC control loop. For facilities running OSIsoft PI or Wonderware SCADA platforms, the data is aggregated through an industrial protocol gateway — such as the Moxa MGate MB3480 — which bridges Modbus RTU/TCP to OPC-UA or OPC-DA, making vibration data available to historians, dashboards, and remote monitoring workstations.

At the HMI layer, operators view real-time shaft orbit plots, trend data, and alarm thresholds on Bently Nevada System 1 condition monitoring software, which connects to the 3500 rack via Ethernet and provides full diagnostic visibility. For remote sites, edge gateways such as the Advantech ADAM-3600 collect the analog outputs and transmit compressed data packets over 4G LTE or fiber to cloud-based SCADA platforms, enabling remote diagnostics without on-site personnel.

This end-to-end data flow — from the 330172-16-42-10-01-00 proximity sensor through signal conditioners, monitor racks, PLCs, protocol gateways, and SCADA historians — represents the backbone of a modern predictive maintenance network, ensuring that no vibration event goes undetected and no alarm goes unacknowledged across the plant communication hierarchy.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machinery health data across incompatible systems. Legacy vibration monitoring equipment often operates in isolation — generating critical displacement and vibration readings that never reach the plant DCS, SCADA historian, or maintenance management system. The result is data silos: valuable condition information trapped at the field level, invisible to process engineers, maintenance planners, and remote operations centers.

The Bently Nevada 330172-16-42-10-01-00, when integrated within the 3300 or 3500 Series monitoring architecture, directly addresses this challenge. Its standardized analog output (4–20 mA) and the monitor rack’s Modbus communication capability allow vibration data to be ingested by any modern PLC or DCS without custom engineering. Protocol conversion gateways bridge the gap between legacy serial Modbus RTU networks and modern Ethernet-based Modbus TCP/IP or OPC-UA infrastructures, ensuring that even older plant networks can participate in real-time condition monitoring.

For production line transparency, the sensor’s continuous output enables trend analysis and threshold-based alarming at both the local HMI and the central SCADA level simultaneously. Maintenance teams receive early warning of bearing wear, shaft misalignment, or rotor imbalance — often days or weeks before a failure event — allowing planned interventions rather than emergency shutdowns. Remote diagnostic capability means that vibration specialists can analyze shaft orbit data from off-site locations, reducing travel costs and response times.

System expansion is straightforward: additional 330172-series proximity sensors can be added to the 3500 rack without architectural changes, and the rack’s network interface supports simultaneous connections to multiple SCADA clients. This scalability ensures that as production lines grow or new machinery is commissioned, the vibration monitoring network expands in parallel without disruption to existing data flows.

Every unit of the 330172-16-42-10-01-00 supplied by ZYPLC undergoes pre-shipment functional testing, verifying signal output linearity, gap voltage calibration, and connector integrity before dispatch. Stock is maintained for shipment arranged after confirmation, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330172-16-42-10-01-00 support for SCADA integration?
The sensor itself outputs a standard eddy-current analog signal (typically –18 VDC gap voltage range). When paired with the Bently Nevada 3500/42M monitor module, the system communicates via Modbus RTU (RS-485) and Modbus TCP/IP (Ethernet), enabling direct integration with SCADA platforms such as Wonderware, iFIX, and OSIsoft PI. OPC-UA connectivity is achievable via a protocol gateway such as the Moxa MGate series.

Q2: Is the 330172-16-42-10-01-00 compatible with both 3300 and 3500 Series monitor racks?
Yes. The 330172-16-42-10-01-00 is designed for the Bently Nevada 3300 Series architecture and is also compatible with 3500 Series monitor racks when used with the appropriate Proximitor driver and extension cable assembly. Always verify the gap voltage range and cable length specifications match your rack configuration before installation.

Q3: How does network latency affect vibration alarm response times?
The 330172-16-42-10-01-00 delivers a continuous analog signal with no network-induced latency at the sensor level. Alarm processing occurs within the 3500 monitor module in hardware, with response times typically under 1 ms for danger-level trips. Modbus polling latency (typically 10–100 ms depending on network load) affects SCADA data refresh rates but does not impact the hardware trip relay response, ensuring machinery protection is never compromised by network conditions.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this unit?
All Bently Nevada 330172-16-42-10-01-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation. Each unit undergoes pre-shipment testing including signal output verification, gap voltage calibration check, and physical connector inspection. Availability is confirmed via RFQ for same-week dispatch. For technical verification or bulk order inquiries, contact our team directly.

—
