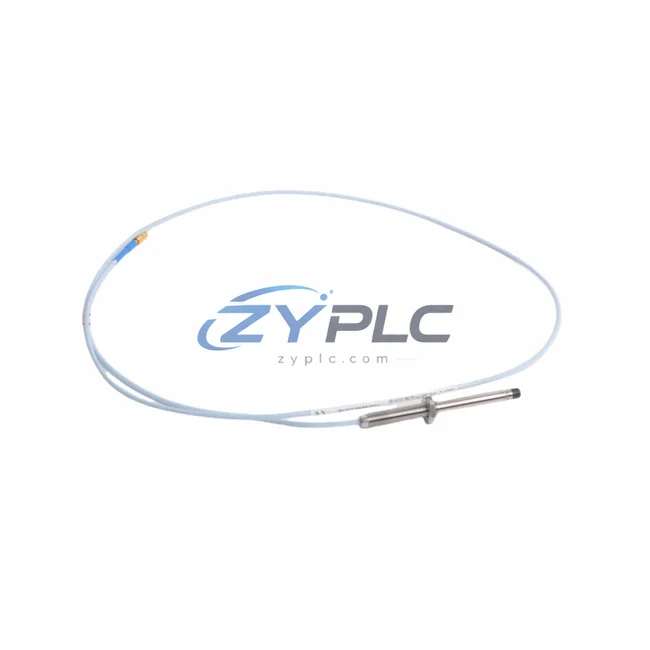

Bently Nevada 330173-04-08-10-02-00 Probe 3300 XL

Bently Nevada 330173-04-08-10-02-00 Proximity Probe for 3300 XL Vibration Monitoring

The Bently Nevada 330173-04-08-10-02-00 is a precision eddy-current proximity probe engineered for integration within the 3300 XL machinery protection and condition monitoring architecture. This probe serves as a critical sensing element at the field instrumentation layer, converting mechanical shaft displacement into calibrated electrical signals that feed directly into the 3300 XL monitoring framework. Within a layered automation and protection system, the 330173-04-08-10-02-00 operates as the foundational data acquisition point, enabling real-time vibration, position, and speed measurements essential for turbine, compressor, pump, and generator protection strategies.

In modern industrial control system architectures, the proximity probe does not function in isolation. Its role is defined by its system integration with upstream signal conditioning modules, rack-mounted monitors, communication gateways, and supervisory control layers. The 330173-04-08-10-02-00 connects to the 3300 XL system through a proximitor or driver module such as the 330180-91-00 or 330130-080-00-00, which provides the oscillator-demodulator circuit necessary to interpret the probe tip gap voltage. This signal chain ensures that raw displacement data is conditioned, linearized, and transmitted to the 3300/20 rack monitor for threshold comparison and alarm logic processing.

Product Specification Table

System Compatibility Notes

The 330173-04-08-10-02-00 proximity probe is architecturally positioned at the lowest sensing tier of the Bently Nevada machinery protection hierarchy. Its integration begins at the probe tip, where the eddy-current field interacts with the target shaft surface, and extends through the extension cable (such as the 330130-080-01-00) to the proximitor driver housed within the 3300 XL rack. The 3300/20 monitor module receives the conditioned signal and applies configurable alarm setpoints, gap voltage validation, and OK/ALERT/DANGER logic.

For comprehensive machinery protection, the 330173-04-08-10-02-00 typically operates alongside complementary measurement channels. In a standard turbine monitoring configuration, dual radial probes are installed at each bearing in an X-Y orientation, paired with a 330175-02-12-10-02-00 or similar probe for axial thrust position measurement. The 3300/25 Keyphasor module provides phase reference signals, enabling orbit analysis, vector tracking, and synchronous amplitude extraction when combined with the proximity probe data.

At the rack level, the 3300/65 Temperature Monitor and 3300/16 Channel Relay modules complement the vibration channels by providing thermal protection and discrete output logic for trip circuits. The system communicates upstream through the 3500/22M Transient Data Interface or the 3300 XL communication gateway, feeding data into plant-level DCS or SCADA platforms such as GE Mark VIe or Honeywell Experion for integrated asset health management.

Power distribution within the 3300 XL rack is managed by dedicated power supply modules that ensure stable -24 VDC excitation for all proximitor channels. The architectural redundancy can be enhanced by deploying dual-voting monitor configurations, where two independent 3300/20 modules process the same probe signals and apply two-out-of-three voting logic for critical trip decisions. This redundancy philosophy ensures that a single monitor failure does not result in spurious trips or undetected faults.

The probe installation environment demands careful attention to cable routing, grounding practices, and electromagnetic compatibility. The 330173-04-08-10-02-00 utilizes a coaxial cable design with integral shielding to reject common-mode noise from adjacent power cables, VFDs, and high-voltage switchgear. Proper cable extension selection—matching impedance and capacitance characteristics—is essential to maintain measurement accuracy across the full linear range.

Industrial Application Notes

In petrochemical refining, the 330173-04-08-10-02-00 is deployed on centrifugal compressor trains where continuous vibration monitoring prevents catastrophic bearing failures and shaft damage. The probe feeds real-time displacement data into the 3300 XL system, which coordinates with emergency shutdown systems (ESD) to initiate controlled shutdowns when vibration amplitudes exceed API 670 alarm thresholds.

Power generation facilities utilize this probe on steam turbines and gas turbines, where it monitors journal bearing clearance, shaft eccentricity during slow-roll, and rotor thermal bow conditions during startup sequences. The integration with the plant DCS allows operators to trend vibration signatures over time, correlating changes with process variables such as load, temperature, and speed.

In mining and mineral processing, large SAG mills and ball mills equipped with the 3300 XL system use the 330173-04-08-10-02-00 to detect bearing wear, misalignment, and foundation looseness. The layered architecture ensures that protection decisions are made locally at the monitor level with microsecond response times, while diagnostic data is simultaneously transmitted to centralized condition monitoring platforms for predictive maintenance analysis.

Water treatment and pumping stations benefit from the probe’s ability to detect cavitation-induced vibration, seal degradation, and impeller imbalance on vertical and horizontal pumps. The system architecture supports remote monitoring through Modbus TCP or OPC-UA gateways, enabling centralized maintenance teams to oversee distributed pump stations from a single engineering workstation.

Product Compatibility FAQ

Q1: What system components are required to integrate the 330173-04-08-10-02-00 into a complete 3300 XL monitoring rack?
A: A complete channel requires the proximity probe, a matched extension cable (e.g., 330130-080-00-00), a proximitor/driver module (e.g., 330180-91-00), and a 3300/20 rack monitor with available channel slots. Power supply, I/O termination, and communication modules complete the rack architecture. All components carry a warranty terms confirmed during quotation from ZYPLC.

Q2: Can the 330173-04-08-10-02-00 be used in redundant voting configurations for critical machinery protection?
A: Yes. The 3300 XL architecture supports dual-monitor redundancy where two 3300/20 modules independently process the same probe signal. Two-out-of-three voting logic can be implemented for SIL-rated trip applications, ensuring both safety integrity and operational availability.

Q3: What installation and commissioning considerations affect long-term measurement accuracy?
A: Proper gap voltage setting (typically -10V at mid-range), correct target material calibration, cable impedance matching, and EMI-free routing are essential. ZYPLC provides technical support for system architecture planning, commissioning guidance, and maintains ready stock with warranty terms confirmed during quotation coverage for all Bently Nevada 3300 XL components.
