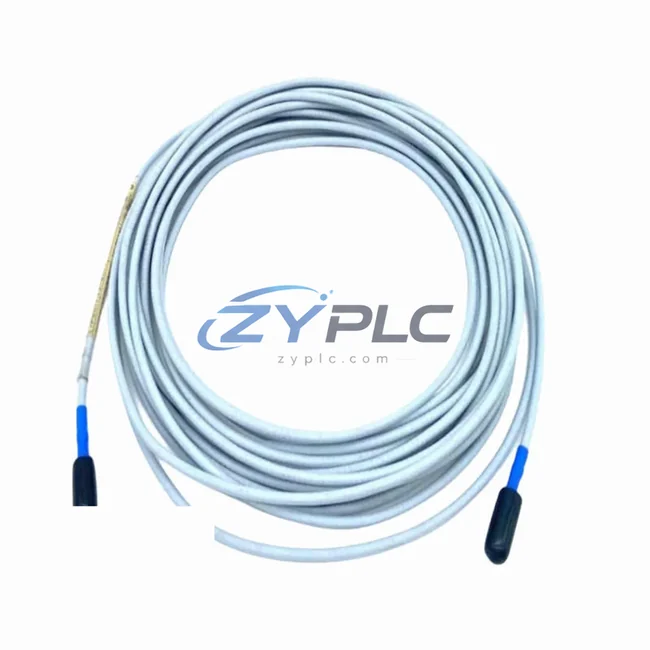

Bently Nevada 330173-07-11-10-02-00 Proximity Probe for 3300 XL

Bently Nevada 330173-07-11-10-02-00 Proximity Probe for 3300 XL

The Bently Nevada 330173-07-11-10-02-00 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 XL Series machinery protection and condition monitoring architecture. Designed to deliver continuous, non-contact displacement and vibration measurements, this probe serves as a critical sensing node in multi-layer industrial automation systems where signal fidelity, long-term reliability, and architectural consistency are non-negotiable requirements. Whether deployed in rotating machinery protection, turbine supervisory instrumentation, or compressor train monitoring, the 330173-07-11-10-02-00 is built to sustain demanding operational environments while maintaining full system integration with the broader Bently Nevada ecosystem.

In modern industrial control architectures, the proximity probe does not operate in isolation. It functions as the front-end sensing element of a complete signal chain that spans from the machine shaft surface through the field wiring, into the signal conditioning module, and ultimately to the plant-level DCS or safety system. The 330173-07-11-10-02-00 is factory-calibrated and dimensionally specified to work in direct coordination with the Bently Nevada 330180 extension cable, the 330100 series proximitor/oscillator driver, and the 3300 XL monitor rack — forming a verified, end-to-end measurement loop that eliminates field calibration uncertainty and reduces commissioning time significantly.

From a system architecture perspective, the probe occupies the field instrumentation layer, feeding real-time analog signals to the I/O and signal conditioning layer. These signals are then processed by the 3300 XL 16-channel monitor or the 3500 series rack-based monitoring system, which performs alarm management, trip logic, and data forwarding to the control layer. Integration with Bently Nevada System 1 software enables full system integration — correlating vibration vectors, gap voltages, and process variables into a unified machinery health picture accessible from the HMI or historian layer. This layered signal flow ensures that every measurement from the 330173-07-11-10-02-00 contributes directly to system-wide decision-making, from routine condition monitoring to emergency shutdown sequences.

The probe’s 7.87 mm (5/16-18 UNF) thread body and 5 mm sensing tip diameter are optimized for standard proximity probe mounting brackets used across turbine pedestals, compressor bearing housings, and pump seal assemblies. Its 1-meter integral cable length, combined with the 330180 extension cable, provides the flexibility required for installations where the proximitor must be located in a junction box or marshalling cabinet remote from the machine. The system supports a standard -24 VDC supply voltage, consistent with the power distribution architecture of the 3300 XL and 3500 monitor racks, simplifying power loop design and reducing the need for dedicated field power supplies.

For engineers designing redundant machinery protection systems, the 330173-07-11-10-02-00 supports dual-probe configurations on critical machines, where two probes are mounted 90 degrees apart to capture full orbital motion data. This redundancy architecture, when combined with the 3500/42M four-channel monitor and the 3500/22M transient data interface, provides the measurement diversity required for API 670-compliant protection systems on steam turbines, gas compressors, and large centrifugal pumps. The probe’s consistent sensitivity of 7.87 V/mm (200 mV/mil) ensures that both channels in a redundant pair deliver matched outputs, preserving the integrity of the differential measurement and alarm logic.

Long-term maintenance efficiency is a core design consideration for the 330173-07-11-10-02-00. Its stainless steel housing and chemically resistant cable jacket are rated for continuous operation in environments with oil mist, process gas exposure, and elevated temperatures up to 177°C (350°F) at the probe tip. This durability reduces the frequency of scheduled replacements and minimizes unplanned downtime associated with probe degradation. When replacement is required, the standardized thread form and cable connector ensure drop-in compatibility with existing installations, eliminating the need for re-calibration of the proximitor or reconfiguration of the monitor rack — a significant advantage in plants where maintenance windows are tightly constrained.

Product Specification Table

System Compatibility Notes

The 330173-07-11-10-02-00 achieves its full architectural value when deployed as part of a coordinated Bently Nevada measurement chain. In a typical 3300 XL installation, the probe pairs with the 330180-51-05 extension cable to bridge the distance between the machine bearing housing and the proximitor enclosure. The 330100-90-05 proximitor/oscillator driver conditions the raw eddy-current signal into calibrated DC gap and AC vibration voltages, which are then routed to the 3300 XL 16-channel monitor for alarm processing and relay output.

For plants operating the 3500 Series rack-based protection system, the probe integrates directly with the 3500/42M four-channel monitor module, enabling full orbital plot generation and Keyphasor-referenced vector analysis. The 3500/22M transient data interface captures startup and shutdown data, providing the engineering team with the waveform history needed for root-cause analysis. At the power layer, the 3500/15 power supply module delivers the regulated -24 VDC required by the probe-proximitor loop, ensuring stable bias voltage across all operating conditions.

System-level system integration is achieved through the Bently Nevada System 1 software platform, which aggregates data from all proximity probe channels, process transmitters, and speed sensors into a unified machinery health dashboard. The 3500/92 communication gateway module bridges the 3500 rack to the plant DCS via Modbus TCP or OPC-DA, enabling the control room HMI to display real-time vibration vectors alongside process variables such as bearing temperature, lube oil pressure, and load. This integration eliminates data silos between the machinery protection layer and the process control layer, supporting both condition-based maintenance programs and automated trip logic coordination.

In redundant configurations, a second 330173-07-11-10-02-00 probe mounted at 90° provides the orthogonal measurement required for full shaft orbit reconstruction. Combined with a 330980 Keyphasor probe for phase reference, the system delivers the complete vibration dataset required for API 670 compliance on critical rotating equipment. Terminal blocks and field junction boxes from the 3300 XL accessory range complete the field wiring architecture, providing organized, labeled termination points that simplify both initial commissioning and long-term maintenance access.

Industrial Application Notes

In power generation facilities, the 330173-07-11-10-02-00 is routinely deployed on steam turbine shaft monitoring systems, where continuous radial vibration measurement is mandatory for both operational safety and regulatory compliance. The probe’s high-temperature rating makes it suitable for installation near turbine bearing pedestals where ambient temperatures can exceed 120°C during normal operation. Integration with the 3500 Series rack and System 1 software enables the plant’s DCS to receive real-time vibration alarms and automatically initiate load reduction sequences before trip thresholds are reached.

In petrochemical and refinery applications, the probe is used on centrifugal compressor trains where shaft displacement monitoring is critical for detecting rotor instability, oil whirl, and bearing wear. The stainless steel housing and chemically resistant cable jacket provide the corrosion resistance required in environments with H₂S, hydrocarbon vapors, and process condensate. The probe’s compatibility with the 3300 XL architecture allows seamless integration into existing Bently Nevada installations during plant expansions or equipment upgrades, preserving the existing monitor rack configuration and alarm setpoints.

In water treatment and pumping stations, the 330173-07-11-10-02-00 supports condition monitoring programs on large vertical turbine pumps and horizontal split-case pumps, where bearing wear detection can prevent catastrophic failures and unplanned service interruptions. The probe’s non-contact measurement principle eliminates the wear associated with contact-type sensors, making it particularly well-suited for continuous monitoring applications where sensor replacement during operation is not feasible.

In mining and mineral processing facilities, the probe is applied to large grinding mill drives, crusher bearings, and conveyor drive systems, where the combination of high loads, shock vibration, and dusty environments demands robust sensing hardware. The 330173-07-11-10-02-00’s proven field reliability in these conditions, combined with the warranty terms confirmed during quotation and global spare parts availability from ZYPLC, supports the long-term maintenance strategies required by mining operations with remote locations and limited access to OEM service centers.

Product Compatibility FAQ

Q1: Is the 330173-07-11-10-02-00 compatible with both the 3300 XL and 3500 Series monitor racks?
Yes. The 330173-07-11-10-02-00 is a standard Bently Nevada 5 mm proximity probe with 200 mV/mil sensitivity, which is the calibrated standard for both the 3300 XL and 3500 Series monitor systems. When paired with the correct 330100 series proximitor driver, the probe delivers a signal that is fully compatible with all 3300 XL and 3500 monitor input channels. No additional signal conditioning or sensitivity adjustment is required when migrating between these two rack architectures, making the probe a consistent hardware standard across multi-generation Bently Nevada installations.

Q2: How does the warranty terms confirmed during quotation apply in a system where the probe is installed in a hard-to-access location?
The warranty terms confirmed during quotation covers manufacturing defects and performance non-conformance from the date of shipment. In the event of a warranty claim, ZYPLC provides a direct replacement unit with matched calibration data, allowing the maintenance team to perform a drop-in swap without re-calibrating the proximitor or reconfiguring the monitor rack. For installations where probe access requires machine shutdown, ZYPLC recommends maintaining a site spare to minimize downtime during the warranty replacement process. Warranty claims are processed through plc.sales@zyplc.com with a typical turnaround of 5–7 business days for standard replacement units.

Q3: What commissioning steps are required when integrating the 330173-07-11-10-02-00 into an existing 3500 Series architecture?
Commissioning requires verification of the probe gap voltage at the proximitor output, which should read between -10 VDC and -18 VDC for a properly installed probe at the center of its linear range (approximately 1.27 mm gap). The 3500 monitor channel should be configured for 200 mV/mil sensitivity and the appropriate full-scale range for the machine’s expected vibration amplitude. Keyphasor channel assignment and OK relay logic should be verified in the 3500 rack configuration software before the machine is brought online. ZYPLC’s technical support team is available to assist with configuration verification and troubleshooting during the commissioning phase, ensuring that the probe-to-monitor signal chain meets the performance requirements of the installed protection system.
