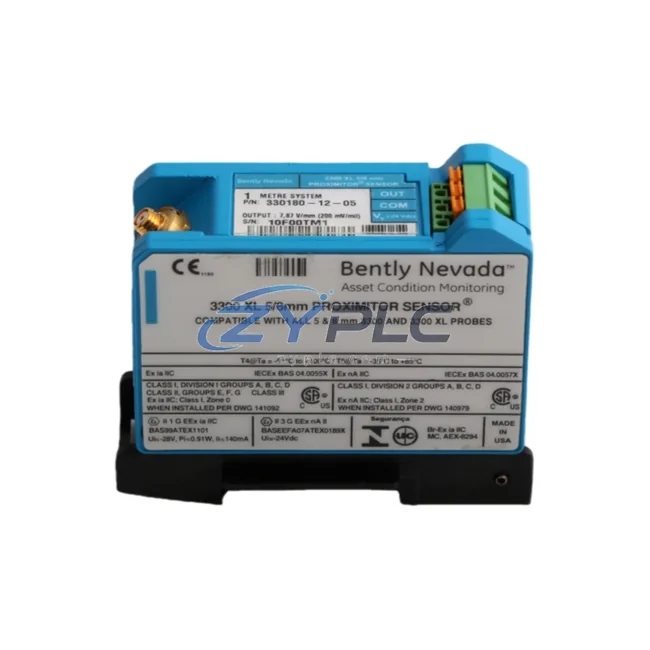

Bently Nevada 330180-12-CN Proximitor Sensor for 3300 XL

Bently Nevada 330180-12-CN Proximitor Sensor for 3300 XL

The Bently Nevada 330180-12-CN is a precision eddy-current Proximitor Sensor engineered as a core signal-conditioning component within the 3300 XL machinery protection and condition monitoring architecture. Rather than functioning as a standalone transducer, this module occupies a critical position in the layered automation hierarchy — bridging the physical measurement layer and the signal processing layer to deliver real-time shaft displacement, vibration amplitude, and rotational speed data to the control and protection system. Its design philosophy centers on system coherence: every electrical parameter, connector standard, and output signal range has been optimized for seamless system integration with the broader 3300 XL platform ecosystem.

In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and rotating machinery-intensive manufacturing — the reliability of a machinery protection system depends not on any single component, but on the architectural consistency of the entire signal chain. The 330180-12-CN addresses this requirement by providing a calibrated, temperature-stable output that feeds directly into 3300 XL monitor modules without requiring signal conditioning adapters or range conversion. This eliminates a common source of measurement error and simplifies both commissioning and long-term maintenance workflows.

Sourced from verified supply channels and backed by a warranty terms confirmed during quotation, the 330180-12-CN is available for shipment arranged after confirmation to support planned maintenance schedules, emergency replacements, and new system build-outs. Each unit undergoes functional verification prior to shipment to ensure it meets the original manufacturer’s performance specifications.

Product Specification Table

System Compatibility Notes

The 330180-12-CN achieves its full performance potential when deployed as part of a coordinated 3300 XL system architecture. At the sensing layer, it pairs with Bently Nevada 330130-080-00-00 proximity probes and matched extension cables to form a complete eddy-current measurement chain. The Proximitor’s analog output feeds directly into 3300/16-02-01-01-00-00 or 3300/20-02-01-01-00-00 monitor modules housed within the 3300 XL rack, where vibration amplitude, phase, and position data are processed against configurable alarm and danger setpoints.

Power integrity across the system is maintained by the 3300/05 Power Supply Module, which provides regulated -24 VDC to the Proximitor network. In redundant configurations, dual power supply modules operate in parallel, ensuring that a single power supply failure does not interrupt the protection function — a critical requirement in turbine protection and compressor train monitoring applications.

At the communication and data layer, the 3300 XL rack interfaces with plant-level SCADA and DCS platforms via the 3500/92 Communication Gateway Module, which supports Modbus TCP, OPC-DA, and proprietary System 1 protocols. This enables the 330180-12-CN’s measurement data to be consumed by higher-level control systems — including GE Vernova Mark VIe turbine controllers or Emerson DeltaV process controllers — without requiring signal re-conditioning or protocol conversion at the field level.

For Keyphasor reference signal applications, the 3300/25 Keyphasor Module works in conjunction with the 330180-12-CN to provide once-per-revolution phase reference data, enabling advanced diagnostic functions such as 1X and 2X vibration vector analysis within System 1 Evolution condition monitoring software. This integration supports predictive maintenance programs by correlating vibration trends with operational parameters such as load, speed, and temperature.

In installations requiring intrinsic safety barriers for hazardous area compliance, the 330180-12-CN is deployed alongside Bently Nevada 3300 XL Zener Barrier Modules or certified galvanic isolators, maintaining signal fidelity while meeting IEC 60079 zone classification requirements. Terminal block assemblies and marshalling panels within the control cabinet are configured to maintain cable impedance matching across the full probe-extension-Proximitor chain, preserving measurement accuracy at the monitor input.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine protection systems, the 330180-12-CN monitors journal bearing radial vibration and thrust position on high-speed rotating shafts. Integrated with the 3300 XL rack and System 1 software, it provides the real-time data required for automatic trip logic and long-term condition trending, supporting both baseload and peaking plant operations.

Petrochemical and Refining: Centrifugal compressors, process pumps, and expanders in refinery and gas processing facilities rely on continuous vibration monitoring to prevent catastrophic mechanical failure. The 330180-12-CN’s stable output under high-temperature and chemically aggressive ambient conditions makes it suitable for installation in compressor trains operating in API 670-compliant protection systems.

Water and Wastewater Treatment: Large-scale pumping stations and blower systems benefit from the 330180-12-CN’s ability to detect early-stage bearing wear and rotor imbalance, enabling condition-based maintenance scheduling that reduces unplanned downtime and extends equipment service life.

Mining and Metallurgy: Ball mills, SAG mills, and large fan drives in mineral processing plants operate under high vibration and dust-laden environments. The 330180-12-CN’s robust housing and sealed connector interface maintain measurement reliability in these demanding conditions, supporting continuous operation monitoring and predictive maintenance programs.

Packaging and Discrete Manufacturing: High-speed rotating equipment in packaging lines — including centrifuges, turboblowers, and precision spindles — benefits from the 330180-12-CN’s fast response time and low noise floor, enabling detection of vibration anomalies that would otherwise cause product quality deviations or unscheduled line stoppages.

Product Compatibility FAQ

Q1: Is the 330180-12-CN directly compatible with existing 3300 XL monitor modules without additional signal conditioning?
Yes. The 330180-12-CN is designed to interface directly with all standard 3300 XL monitor modules, including radial vibration, axial position, and Keyphasor monitors. Its output scale factor of 200 mV/mil matches the expected input range of the 3300 XL monitor family, eliminating the need for external signal conditioning or range adapters. system integration with System 1 software is supported natively through the monitor module’s communication interface.

Q2: Can the 330180-12-CN be used in a redundant protection architecture, and what companion modules are required?
Yes. Redundant Proximitor configurations are supported within the 3300 XL architecture by deploying dual probe-Proximitor chains feeding independent monitor module channels. Redundant power supply modules (3300/05 dual configuration) ensure continuous power delivery to both Proximitor circuits. The 3300 XL rack’s voting logic can be configured for 1oo2 or 2oo2 trip logic, providing the fault tolerance required for API 670 Category I and Category II protection systems. System 1 Evolution software monitors both channels simultaneously and flags discrepancies for engineering review.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that fail to meet original Bently Nevada performance specifications within the warranty period will be repaired or replaced at no charge. Pre-sales technical support is available to assist with system compatibility verification, cable length selection, and probe gap setting procedures. Post-installation commissioning guidance — including output voltage verification, scale factor confirmation, and System 1 integration testing — is available through our technical support team. Contact us at +86 19859288691 or plc.sales@zyplc.com for engineering assistance.
