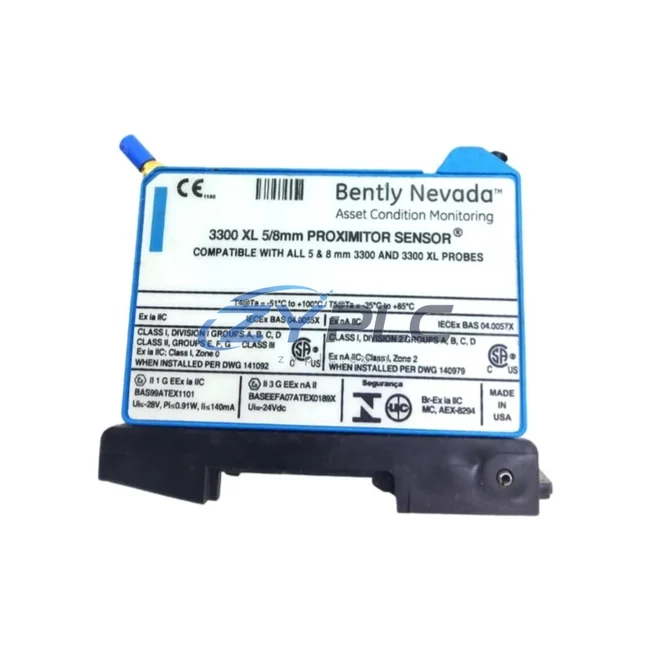

The Bently Nevada 330180-X1-05 MOD:145347-05 Proximitor Sensor is a precision eddy-current proximity transducer engineered for seamless integration within the Bently Nevada 3300 XL Machinery Protection System architecture. Unlike standalone vibration sensors, this module is designed from the ground up to function as a coordinated node within a layered industrial control hierarchy — interfacing directly with the 3300 XL monitor rack, signal conditioning modules, and plant-level DCS or safety instrumented systems. Its role in the control architecture spans the field sensing layer through to the data acquisition and alarm management layers, making it a foundational component for continuous machinery health monitoring in rotating equipment applications.

In a complete 3300 XL system deployment, the 330180-X1-05 operates in conjunction with the 330130 extension cable assembly, the 330100 series proximitor probe, and the 3300/16 or 3300/20 monitor modules housed within the standard 3300 rack backplane. Signal outputs from this proximitor feed directly into the 3500/42M Proximitor/Seismic Monitor or the 3300/25 Keyphasor module, enabling phase-referenced vibration analysis and orbit plot generation at the system level. The sensor’s 5-metre integral cable configuration (MOD:145347-05) is optimized for installations where the proximitor must be mounted at a controlled distance from the monitor rack, maintaining signal integrity across the full dynamic range of the eddy-current measurement chain.

Product Specification Table

System Compatibility Notes

The 330180-X1-05 achieves its full diagnostic value only when considered within the broader 3300 XL system architecture. At the field sensing layer, the proximitor probe tip — typically a 330100-series or 330105-series probe — is positioned at the bearing journal, with the extension cable routing signal back to the 330180-X1-05 proximitor body. The proximitor conditions the raw eddy-current signal into a calibrated DC voltage output, which is then transmitted to the monitor rack via the 330130 extension cable.

Within the monitor rack, the conditioned signal enters the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor, where it is processed against user-configured alert and danger setpoints. The 3300/25 Keyphasor Module receives a once-per-revolution reference signal from a dedicated Keyphasor proximitor — often a 330180-50-00 or 330180-91-00 — enabling phase-referenced analysis and synchronous filtering. For systems requiring redundant monitoring, dual-channel monitor cards and redundant power supply modules such as the 3300/05 Power Supply ensure continuous operation even during single-point failures.

At the network and integration layer, the 3300 XL rack communicates with plant DCS platforms — including Emerson DeltaV, Honeywell Experion, or ABB 800xA — via the 3500/92 Communication Gateway Module or through hardwired 4–20 mA relay outputs. This system integration allows vibration data from the 330180-X1-05 to appear as a live process variable within the plant historian, enabling trend analysis, predictive maintenance scheduling, and integration with safety instrumented systems (SIS) compliant with IEC 61511. The result is a fully coherent machinery protection architecture where the 330180-X1-05 is not merely a sensor, but a calibrated, system-aware measurement node.

Industrial Application Notes

In power generation facilities, the 330180-X1-05 is routinely deployed on steam turbine shaft monitoring systems, where radial vibration at the journal bearings must be continuously tracked against API 670 alarm limits. The proximitor’s wide frequency response and stable DC output make it suitable for both slow-roll runout compensation and high-speed vibration capture during turbine start-up and coast-down sequences.

In petrochemical and refinery applications, the sensor is installed on centrifugal compressor trains, where bearing proximity monitoring is mandated by API 670 and plant safety management systems. The 330180-X1-05 integrates with the plant SIS via hardwired relay contacts from the 3300 XL monitor, providing automatic shutdown signals on high-high vibration events without reliance on software communication paths.

In water treatment and municipal utility plants, the sensor monitors vertical turbine pumps and horizontal split-case pumps, where shaft displacement monitoring provides early warning of impeller imbalance, misalignment, or bearing wear. The Warranty and support terms confirmed before quote and verified pre-dispatch testing protocol ensure that replacement units can be installed during planned maintenance windows with confidence in calibration accuracy and system compatibility.

In mining and minerals processing, the 330180-X1-05 is applied to SAG mill pinion bearing monitoring, crusher drive shaft surveillance, and conveyor drive gearbox vibration tracking. The sensor’s robust construction and wide operating temperature range support installation in harsh environments where ambient temperature fluctuations and mechanical vibration from adjacent equipment are significant factors.
