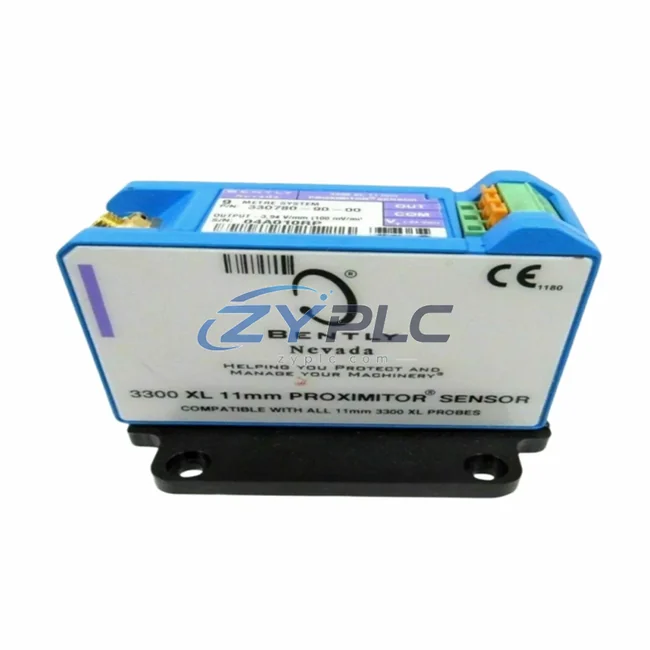

The Bently Nevada 330180-X1-05 (MOD:143416-07) is a precision eddy-current proximity sensor engineered for seamless integration within the Bently Nevada 3300 XL continuous machinery monitoring system. Rather than functioning as a standalone measurement device, this sensor occupies a critical position in the full-stack control architecture — serving as the primary signal acquisition node between rotating machinery and the centralized condition monitoring platform. Its role spans the physical sensing layer through to the data acquisition layer, feeding real-time vibration, position, and displacement data upward to the system’s processing and alarm management tiers.

In modern industrial automation environments — whether in power generation, petrochemical refining, water treatment, or heavy manufacturing — the integrity of a machinery protection system depends on the coherent interaction of every component across all architecture layers. The 330180-X1-05 is designed with this system-level philosophy in mind, offering stable output characteristics, consistent gap voltage linearity, and robust EMI resistance that ensures signal fidelity from the field level to the control room.

Product Specification Table

System Compatibility Notes

The 330180-X1-05 sensor does not operate in isolation. Its value is fully realized when considered within the broader 3300 XL system architecture, where it interfaces directly with the Bently Nevada 3300 XL Proximitor Monitor — the signal conditioning and processing module that converts raw gap voltage into calibrated displacement readings. The Proximitor Monitor, in turn, feeds into the 3300 XL Rack, a modular backplane system that consolidates multiple channel inputs across vibration, axial position, speed, and temperature monitoring functions.

For installations requiring higher channel density or integration with plant-wide DCS platforms, the 330180-X1-05 is commonly deployed alongside the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which supports both proximity and seismic inputs within a single module slot. The 3500 Rack provides the communication backbone — supporting Modbus RTU, Modbus TCP/IP, and Profibus DP protocols — enabling seamless data exchange with SCADA systems, historian servers, and plant asset management platforms.

At the power layer, the Bently Nevada 3500/15 Power Supply Module delivers regulated -24 VDC to the Proximitor circuitry, ensuring stable sensor excitation even under fluctuating plant power conditions. Redundant power supply configurations are supported within the 3500 rack, a critical design consideration for continuous-duty machinery protection in power plants and petrochemical facilities where unplanned downtime carries significant operational cost.

Signal routing from the 330180-X1-05 typically passes through Bently Nevada armored extension cables (3300 XL series, 5-metre or 9-metre configurations) before reaching the Proximitor. These cables are engineered to maintain signal integrity across long cable runs in electrically noisy environments — a common challenge in motor control centers and turbine halls where variable frequency drives and high-current switchgear generate significant electromagnetic interference.

At the human-machine interface layer, vibration data collected via the 330180-X1-05 is visualized through System 1 Condition Monitoring Software (GE Vernova / Bently Nevada), which provides trend analysis, alarm management, and predictive maintenance dashboards. For facilities using third-party HMI platforms, the Bently Nevada 3500/92 Communication Gateway Module bridges the monitoring rack to Ethernet-based plant networks, enabling integration with Wonderware, FactoryTalk, or custom SCADA environments.

In redundant architecture designs — particularly for critical turbomachinery protection — the 330180-X1-05 is often deployed in dual-sensor configurations, with a secondary Bently Nevada 330130 series proximity probe providing backup measurement on the same shaft journal. This dual-redundancy approach ensures continuous protection even in the event of a single sensor failure, satisfying API 670 machinery protection standards commonly mandated in oil and gas and power generation applications.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine installations, the 330180-X1-05 monitors rotor radial vibration and shaft eccentricity at journal bearing locations. Integrated with the 3300 XL or 3500 rack system, it provides the real-time displacement data required for turbine protection relay logic — triggering automatic shutdown sequences when vibration thresholds are exceeded, preventing catastrophic bearing failure and rotor damage.

Petrochemical and Refining: Centrifugal compressors in ethylene crackers, hydrogen reformers, and LNG liquefaction trains rely on continuous proximity monitoring to detect surge precursors and rotor instability. The 330180-X1-05, operating within a fully integrated 3300 XL or 3500 series architecture, feeds vibration data to the anti-surge control system, enabling coordinated response between the machinery protection layer and the process control layer.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment facilities benefit from proximity-based shaft monitoring to detect impeller imbalance and bearing wear before failure. The 330180-X1-05 provides the low-maintenance, non-contact measurement solution required for installations where physical access for routine sensor inspection is limited.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject rotating machinery to extreme mechanical loads and vibration environments. The 330180-X1-05’s wide operating temperature range and robust construction make it well-suited for these demanding applications, where sensor reliability directly impacts ore processing throughput and plant availability.

Packaging and Discrete Manufacturing: High-speed rotary machinery in packaging lines — including centrifugal separators, high-speed spindles, and turboblowers — benefit from the 330180-X1-05’s fast dynamic response and high sensitivity, enabling detection of sub-millimetre shaft displacement changes that indicate developing mechanical faults before they progress to unplanned downtime events.

Product Compatibility FAQ

Q1: Is the 330180-X1-05 directly compatible with the Bently Nevada 3500 series rack, or is it limited to the 3300 XL system?
The 330180-X1-05 is natively designed for the 3300 XL Proximitor Monitor. However, it can be integrated into a 3500 series architecture through the use of compatible signal conditioning modules and extension cable assemblies. The key compatibility requirement is matching the sensor’s output sensitivity (7.87 V/mm) with the Proximitor or monitor module’s input calibration range. For mixed-generation system architectures, we recommend confirming module firmware versions and gap calibration settings prior to installation. Our technical team can assist with compatibility verification as part of the warranty terms confirmed during quotation support service.

Q2: What installation and commissioning considerations apply when deploying this sensor in a hazardous area classified zone?
The 330180-X1-05 is rated for use in hazardous area environments when installed in accordance with applicable IECEx or ATEX certification requirements for the complete sensor-cable-Proximitor assembly. Critical commissioning steps include verifying the gap voltage at the nominal operating clearance (typically 1.0 mm to 1.5 mm for most journal bearing applications), confirming cable shield grounding at a single point to prevent ground loops, and validating alarm and danger setpoints within the monitor module against the machinery OEM’s vibration limits. All units supplied by ZYPLC are tested and gap-calibrated prior to shipment under our warranty terms confirmed during quotation program.

Q3: How does ZYPLC support long-term maintenance and spare parts availability for the 330180-X1-05?
ZYPLC maintains dedicated inventory of the Bently Nevada 330180-X1-05 and associated 3300 XL system components — including extension cables, Proximitor monitors, and rack power supplies — to support both planned maintenance shutdowns and emergency replacement requirements. Each unit is covered by a warranty terms confirmed during quotation and undergoes functional testing and documentation review before dispatch. For facilities managing multi-site machinery protection infrastructure, ZYPLC can provide consolidated supply agreements and technical support to reduce procurement lead times and ensure system architecture consistency across installations.
