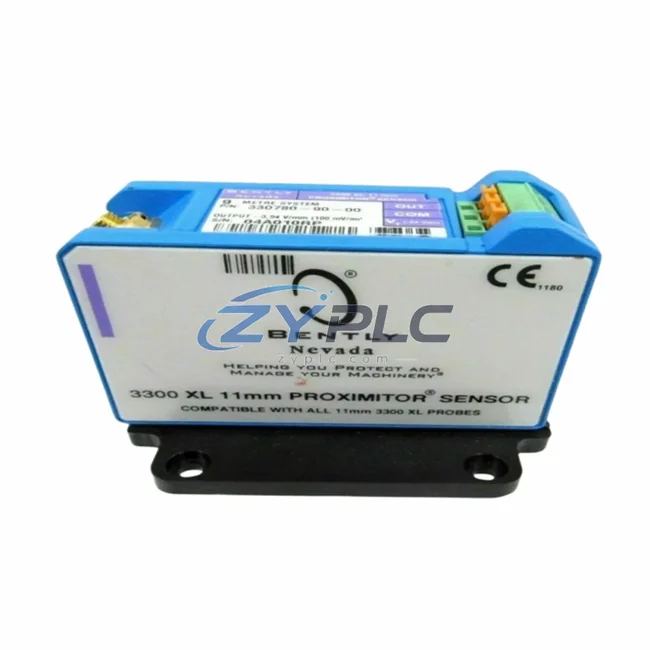

Bently Nevada 330180-X1-05 Proximity Transducer for 3300 XL

The Bently Nevada 330180-X1-05 MOD 145004-67 is an eddy-current proximity transducer engineered for seamless integration within the Bently Nevada 3300 XL continuous machinery monitoring architecture. Unlike standalone sensing devices, this transducer is designed as a system-level component — its electrical characteristics, signal conditioning requirements, and mechanical mounting specifications are all optimized to function within a coordinated, multi-layer control and protection hierarchy. In rotating machinery protection systems, the transducer is not merely a sensor; it is the primary data acquisition node that feeds real-time shaft displacement, vibration amplitude, and position data into the broader condition monitoring framework.

The 330180-X1-05 operates as part of a three-component transducer system that includes the probe, extension cable, and proximitor/oscillator driver. When paired with the Bently Nevada 330130 proximitor and a compatible 330180 series extension cable, the system delivers a calibrated output signal — typically –200 mV/mil or –7.87 V/mm — directly to the 3300 XL monitor rack. This signal chain is the foundation of the vibration monitoring layer in any turbomachinery protection architecture, providing the raw displacement data that the 3300 XL 16-channel monitor modules process for alarm and trip decisions.

Within a complete 3300 XL system architecture, the 330180-X1-05 transducer interfaces with multiple upstream and downstream components. The 3300/16 16-channel monitor accepts the conditioned signal and applies configurable alarm setpoints for overall vibration, 1X and 2X amplitude, and gap voltage. The 3300/55 Keyphasor module uses a dedicated proximity transducer — often from the same 330180 series — to establish the rotational reference signal that enables phase-referenced vibration analysis across all monitored channels. The 3300/20 Radial Vibration Monitor and 3300/25 Thrust Position Monitor may also be deployed in the same rack, each relying on proximity transducers of this type to maintain continuous shaft position awareness.

At the network and integration layer, the 3300 XL rack communicates with plant-level DCS and SCADA systems via the Bently Nevada 3500/92 Communication Gateway, which supports Modbus, Profibus, and OPC protocols. This allows the vibration and position data acquired by the 330180-X1-05 to be transmitted to Emerson DeltaV, Honeywell Experion, or ABB System 800xA platforms for integration into the plant-wide process control strategy. The transducer’s role in this architecture is therefore not limited to local protection — it is a data source for predictive maintenance analytics, long-term trend analysis, and remote condition monitoring.

From a system redundancy perspective, critical turbomachinery installations typically deploy dual or triple proximity transducer configurations on each measurement plane. The 330180-X1-05 supports this redundancy architecture by providing consistent, interchangeable signal characteristics that allow hot-standby monitor configurations to switch between active and redundant channels without recalibration. The 3300 XL rack’s voting logic modules can process signals from multiple transducers on the same shaft plane, applying 2-out-of-3 or 2-out-of-2 voting algorithms to prevent spurious trips while maintaining protection integrity.

Installation and commissioning of the 330180-X1-05 within a 3300 XL system requires careful attention to gap voltage setting, cable routing, and electromagnetic compatibility. The proximitor driver must be mounted within the specified cable length range — typically 5 meters for the standard configuration — and the gap voltage must be set to the midpoint of the linear range, typically –10 VDC, before the system is commissioned. The 3300 XL monitor’s channel configuration software allows engineers to set the transducer scale factor, gap voltage limits, and alarm thresholds to match the specific rotor dynamics of the monitored machine. This system integration capability ensures that the transducer’s output is interpreted correctly within the system’s protection logic.

For long-term maintenance and inventory management, the 330180-X1-05 is a field-replaceable unit that can be swapped without disturbing the extension cable or proximitor, provided the replacement unit is from the same calibrated system set. Maintaining a stock of matched transducer systems — including the 330180 probe, 330130 proximitor, and compatible extension cables — is a best practice for facilities operating multiple 3300 XL racks across steam turbines, gas compressors, centrifugal pumps, and gearboxes. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have been functionally tested prior to shipment.

Product Specification Table

System Compatibility Notes

The 330180-X1-05 transducer achieves its full functional value only when deployed within a coordinated system architecture. In a typical 3300 XL installation protecting a steam turbine-generator set, the transducer works in concert with the following components:

The Bently Nevada 3300/16 16-Channel Monitor is the primary signal processing module that receives the –200 mV/mil output from the 330180-X1-05 and applies configurable alarm and trip setpoints. The Bently Nevada 3300/55 Keyphasor Module uses a dedicated 330180 series probe to establish the once-per-revolution reference signal, enabling phase-referenced 1X and 2X vibration analysis across all monitored channels. The Bently Nevada 3300/25 Thrust Position Monitor uses a paired proximity transducer — typically from the 330105 or 330180 series — to monitor axial shaft position, providing complementary data to the radial vibration measurements.

At the rack level, the Bently Nevada 3300/05 Power Supply provides the regulated –24 VDC required by all proximitor drivers in the rack, including those associated with the 330180-X1-05. Redundant power supply configurations are standard in critical applications, ensuring that a single power supply failure does not interrupt the monitoring system. The Bently Nevada 3300/10 Rack Interface Module manages communication between the monitor modules and the plant DCS via the Bently Nevada 3500/92 Communication Gateway, which supports Modbus RTU, Modbus TCP, and OPC DA protocols.

For installations requiring integration with safety instrumented systems, the 3300 XL monitor’s relay outputs — configured via the Bently Nevada 3300/20 Radial Vibration Monitor — can be wired to the logic solver inputs of a Triconex or Hima SIL-rated safety system, providing a hardwired trip signal that bypasses the communication network. This architecture ensures that the vibration protection function remains active even during DCS communication failures, maintaining the integrity of the overall machinery protection strategy.

Industrial Application Notes

The Bently Nevada 330180-X1-05 proximity transducer is deployed across a wide range of industrial sectors where rotating machinery protection is critical to process continuity and personnel safety.

In power generation applications, the transducer is installed on steam turbine shafts to monitor radial vibration and shaft eccentricity during startup, steady-state operation, and shutdown. The 3300 XL system’s ability to trend vibration data over time allows plant engineers to detect developing bearing defects, rotor imbalance, and misalignment before they progress to catastrophic failure. In oil and gas processing, the 330180-X1-05 is used on centrifugal compressors and gas turbines in LNG trains and gas processing plants, where unplanned shutdowns carry significant production and safety consequences. The transducer’s wide operating temperature range and robust armored cable construction make it suitable for outdoor and hazardous area installations.

In petrochemical and refinery environments, the transducer monitors boiler feed pumps, reactor circulation pumps, and cracked gas compressors, where continuous operation is required for process stability. In water and wastewater treatment facilities, large vertical turbine pumps and blower units are monitored using 3300 XL systems equipped with 330180 series transducers, providing early warning of bearing wear and hydraulic instability. In mining and minerals processing, the transducer is applied to SAG mill pinion bearings, slurry pump shafts, and conveyor drive gearboxes, where the harsh environment and high replacement costs make predictive maintenance essential.

In metallurgical and steel production facilities, the 330180-X1-05 monitors rolling mill drive shafts and continuous caster pinch roll assemblies, where vibration anomalies can cause surface defects in the finished product. In packaging and process manufacturing lines, the transducer is used on high-speed centrifuges, turboblowers, and extruder drive systems, where the 3300 XL system’s fast response time — typically less than 20 milliseconds from alarm condition to relay output — ensures that machinery is protected against sudden vibration events.

Product Compatibility FAQ

Q1: Is the 330180-X1-05 directly interchangeable with other 330180 series probes in an existing 3300 XL rack?
The 330180-X1-05 is part of the Bently Nevada 330180 series and shares the same electrical interface and output sensitivity as other probes in this family. However, the MOD 145004-67 designation indicates a specific mechanical or cable configuration modification. Before substituting this unit in an existing installation, verify that the probe tip diameter, thread specification, and cable length match the original installation requirements. The proximitor driver and extension cable must also be from a matched, calibrated system set to ensure the overall system accuracy meets the ±5% specification required by API 670.

Q2: Can the 330180-X1-05 be used with the newer Bently Nevada 3500 series monitoring system?
The 3300 XL and 3500 series systems use the same eddy-current transducer technology and the same –200 mV/mil output standard, which means 330180 series probes are generally compatible with 3500 series monitor inputs. However, the 3500 series monitors have more stringent calibration verification requirements, and the system configuration software may require the transducer scale factor and gap voltage limits to be re-entered when migrating from a 3300 XL installation. ZYPLC recommends verifying compatibility with the specific 3500 series monitor module part number before deployment. All units are covered by a warranty terms confirmed during quotation.

Q3: What is the recommended maintenance interval for the 330180-X1-05 in a continuous operation environment?
Bently Nevada proximity transducers are solid-state devices with no moving parts, and their mean time between failures (MTBF) is typically measured in decades under normal operating conditions. However, the probe tip is subject to mechanical damage from rotor contact during abnormal operating events, and the armored cable is subject to fatigue failure if subjected to repeated flexing or mechanical stress. The recommended maintenance practice is to verify gap voltage and output signal integrity during each planned machinery outage — typically annually or at major overhaul intervals. Maintaining a spare matched transducer system in inventory ensures that any failed unit can be replaced without extending the machinery outage. ZYPLC provides a warranty terms confirmed during quotation on all supplied units and maintains stock for rapid dispatch.

Bently Nevada 330180-X1-05 Proximity Transducer for 3300 XL: Compatibility and Replacement Notes

The Bently Nevada 330180-X1-05 is a precision eddy-current proximity transducer engineered as a core sensing element within the 3300 XL Series continuous machinery monitoring architecture. Rather than functioning as a standalone measurement device, this transducer operates as an integral node within a layered automation hierarchy — connecting the physical machine layer to the signal conditioning layer, the monitoring layer, and ultimately the plant-wide control and safety systems. Understanding its role within the full system stack is essential for engineers designing reliable, scalable, and maintainable rotating machinery protection platforms.

In modern industrial automation, the integrity of a vibration monitoring system depends not only on the quality of individual components but on the coherence of the entire signal chain. The 330180-X1-05 is designed to deliver consistent, low-noise displacement signals that feed directly into the Bently Nevada 3300 XL monitor rack — a modular, rack-mounted system that supports multi-channel vibration, position, and speed measurement across turbines, compressors, pumps, and other critical rotating assets. Its compatibility with the broader 3300 XL ecosystem ensures that system architects can build fully integrated, redundancy-capable monitoring platforms without signal chain compromises.

Product Specification Table

System Compatibility Notes

The 330180-X1-05 proximity transducer achieves its full value when integrated within a coordinated 3300 XL system architecture. At the sensing layer, the transducer works in conjunction with the Bently Nevada 330130 Proximitor® sensor (the signal conditioning driver), which converts the raw eddy-current impedance change into a calibrated DC voltage proportional to the gap between the probe tip and the rotating shaft. This driver-transducer pairing is the foundation of the 3300 XL signal chain and must be matched for correct sensitivity and linearity.

At the monitor layer, the conditioned signal feeds into the Bently Nevada 3300/16 or 3300/20 monitor modules, which provide channel-level alarming, OK relay outputs, and buffered outputs for data acquisition. These monitors are housed within the 3300 XL rack assembly, which supports up to 16 monitor modules per rack and includes a dedicated 3300/05 power supply module providing regulated ±24 VDC to all installed cards. Redundant power supply configurations are supported, ensuring that a single power supply failure does not interrupt monitoring continuity on critical assets.

For plants requiring integration with distributed control systems, the Bently Nevada 3500/92 communication gateway (or equivalent 3300 XL communication interface) bridges the monitoring rack to plant-level networks via Modbus RTU, Modbus TCP, or OPC-UA — enabling the vibration data collected by the 330180-X1-05 to appear as live process variables within the DCS historian or SCADA platform. This system integration capability allows operations teams to correlate vibration trends with process variables such as load, temperature, and flow — a critical capability for predictive maintenance programs.

At the safety layer, the OK relay outputs from the 3300 XL monitors can be wired into the plant’s Safety Instrumented System (SIS) or emergency shutdown logic, ensuring that a transducer failure or signal loss triggers an appropriate protective response. For turbine and compressor applications, the 330180-X1-05 is commonly deployed alongside Bently Nevada 330500 series speed transducers and 330400 series thrust position transducers, forming a complete shaft monitoring suite that covers radial vibration, axial position, and rotational speed within a single rack architecture.

Terminal blocks and field wiring are managed through the 3300 XL I/O terminal board, which provides clearly labeled screw terminals for transducer cable connections, shield grounding, and relay output wiring. Proper grounding of the transducer cable shield at a single point — typically at the monitor rack — is essential for minimizing electrical noise and ensuring signal integrity across long cable runs in electrically noisy industrial environments.

Industrial Application Notes

Power Generation and Turbomachinery: In gas turbine and steam turbine applications, the 330180-X1-05 is mounted at the journal bearings to monitor shaft radial vibration in real time. Turbine OEMs and EPC contractors specify the 3300 XL system as the primary machinery protection platform due to its proven reliability, API 670 compliance, and seamless integration with turbine control systems. The transducer’s wide frequency response (DC to 10 kHz) captures both low-frequency rotor dynamics and high-frequency blade-pass events, providing comprehensive coverage for turbine health monitoring.

Petrochemical and Refinery Compressor Trains: Centrifugal and reciprocating compressors in refinery and petrochemical service operate continuously under high mechanical stress. The 330180-X1-05 provides the continuous shaft displacement data required for API 670-compliant protection systems, with the 3300 XL monitor rack delivering the alarm and danger relay outputs that interface with the compressor’s anti-surge control and emergency shutdown systems. Multi-compressor trains can be monitored from a single rack room, with each machine’s transducer signals routed to dedicated monitor channels.

Water and Wastewater Treatment: Large pump stations and blower facilities increasingly adopt continuous vibration monitoring to reduce unplanned downtime. The 330180-X1-05, paired with the 3300 XL monitor, provides a cost-effective path to API 670-class protection for critical pumping assets, with Modbus integration enabling vibration data to appear alongside flow and pressure readings in the plant SCADA system.

Mining and Mineral Processing: Ball mills, SAG mills, and large fan drives in mining operations are subject to severe mechanical loading and difficult environmental conditions. The 330180-X1-05’s robust construction and wide temperature tolerance make it suitable for bearing housing installations in these demanding environments, where early detection of shaft misalignment or bearing wear can prevent catastrophic failures and multi-day production losses.

Metallurgy and Steel Production: Rolling mill drives, ID fans, and large motor-driven equipment in steel plants benefit from continuous proximity monitoring. The 3300 XL system’s ability to integrate with plant DCS via OPC-UA allows metallurgical engineers to correlate vibration signatures with rolling load and speed data, enabling condition-based maintenance scheduling that minimizes planned downtime.

Product Compatibility FAQ

Q1: Is the 330180-X1-05 directly compatible with all 3300 XL monitor modules, and does it require a specific Proximitor® driver?
The 330180-X1-05 is designed for use with the Bently Nevada 3300 XL monitoring system and requires a compatible Proximitor® sensor driver — typically the 330130 series — to condition the eddy-current signal before it enters the monitor module. The driver and transducer must be matched for gap range and sensitivity (200 mV/mil standard). When replacing an existing transducer in a commissioned system, verify that the replacement probe’s gap range and cable length match the original system calibration to avoid recalibration of the monitor channel. Our technical team can assist with system compatibility verification prior to shipment.

Q2: How does the 330180-X1-05 support redundant monitoring architectures, and what happens if the transducer signal is lost?
In redundant monitoring configurations, two proximity transducers are installed at 90° to each other at the same bearing location (X-Y configuration), each connected to an independent monitor channel. If one transducer or its signal chain fails, the 3300 XL monitor detects the loss of the OK signal and can trigger an alarm or relay output to the SIS, while the second channel continues to provide valid vibration data. This architecture ensures that a single transducer failure does not result in a loss of machinery protection. The warranty terms confirmed during quotation covers the 330180-X1-05 against manufacturing defects, and our inventory team maintains stock to support rapid replacement in the event of field failures.

Q3: What are the long-term maintenance considerations for the 330180-X1-05 in continuous service, and how does the warranty terms confirmed during quotation apply?
The 330180-X1-05 is a passive eddy-current probe with no moving parts, making it inherently low-maintenance in continuous service. Recommended maintenance activities include periodic inspection of the cable and connector for mechanical damage, verification of the probe-to-shaft gap using the Proximitor® output voltage (typically -10 VDC at the calibrated gap), and confirmation that the cable shield grounding remains intact. The warranty terms confirmed during quotation covers manufacturing defects and functional performance failures under normal operating conditions. For long-term spares planning, we recommend maintaining at least one replacement transducer per monitored machine in your site inventory, particularly for critical assets where unplanned downtime carries significant production cost. Our global logistics network supports fast delivery to minimize spare parts holding costs.

Bently Nevada 330180-X1-05 Proximity Transducer for 3300 XL: Control System and Upstream–Downstream Coordination

In a fully integrated industrial control system, every component must be selected not only for its individual specification but for its role within the broader architecture. The Bently Nevada 330180-X1-05 proximity transducer is engineered specifically for deployment within the 3300 XL continuous monitoring platform, where it functions as the primary sensing element in a layered vibration and position monitoring architecture. Understanding this product requires understanding the system it serves — from the field-level sensing layer through the signal conditioning layer, the data acquisition layer, and ultimately the supervisory control and data acquisition (SCADA) or distributed control system (DCS) integration layer.

The 330180-X1-05 is a 5-metre extension cable proximity transducer designed to work in conjunction with the 3300 XL 8mm proximity transducer system. It operates on the eddy-current principle, generating a voltage output proportional to the gap between the probe tip and the observed conductive target surface. This output is conditioned by a dedicated proximitor or signal conditioner — typically the Bently Nevada 3300 XL proximitor — before being transmitted to the monitoring system. The signal chain is deterministic, low-latency, and immune to the electromagnetic interference that commonly affects rotating machinery environments.

Product Specification Table

System Compatibility Notes

The 330180-X1-05 does not operate in isolation. Its value is realised only when it is correctly integrated into a coordinated monitoring and protection architecture. In a typical turbomachinery protection system, the probe is installed at the bearing housing and connected via the extension cable to a proximitor such as the Bently Nevada 3300 XL proximitor (330180 series), which conditions the raw eddy-current signal into a calibrated voltage output. This conditioned signal is then routed to a monitor card — commonly the Bently Nevada 3300/16 dual-channel monitor or the 3500/22M transient data interface — housed within a 3500 rack system.

The 3500 rack itself is a modular, backplane-based architecture. The Bently Nevada 3500/15 power supply module provides regulated DC power to all cards within the rack, while the 3500/25 keyphasor module supplies the phase reference signal essential for synchronous vibration analysis. For systems requiring network-level integration, the 3500/92 communication gateway module enables Modbus TCP or OPC-DA/UA connectivity to the plant DCS or historian. In Yokogawa CENTUM VP or Emerson DeltaV environments, this gateway bridges the condition monitoring layer with the process control layer, enabling alarm rationalisation and integrated shutdown logic.

At the field wiring level, the extension cable of the 330180-X1-05 terminates at a junction box or marshalling panel, where Phoenix Contact or Weidmüller terminal blocks are commonly used to organise and protect signal wiring. Proper shielding and grounding at this layer is critical to maintaining signal integrity across the full cable run. For installations in hazardous areas, the system must be configured with appropriate Zener barriers or galvanic isolators — such as the MTL 7787+ or equivalent — to maintain intrinsic safety compliance.

In redundant architectures, dual proximity probes are installed at each measurement plane, with each probe connected to an independent monitor channel. This configuration, supported by the Bently Nevada 3500/22M and its dual-channel input architecture, ensures that a single probe or cable failure does not result in loss of protection. The system continues to monitor and protect the machine on the remaining channel while maintenance is scheduled — a critical capability in continuous-process industries such as petrochemical refining, LNG compression, and power generation.

Industrial Application Notes

The 330180-X1-05 finds application across a broad range of industries where rotating machinery protection is a regulatory or operational requirement. In power generation, steam turbine and gas turbine trains are monitored continuously for shaft vibration, axial position, and differential expansion. The 3300 XL proximity transducer system provides the high-resolution, low-noise signal quality required to detect sub-millimetre changes in rotor position that may indicate bearing wear, thermal bow, or rotor instability.

In petrochemical and refinery applications, centrifugal compressors and process pumps operate under API 670 machinery protection requirements, which mandate continuous vibration and position monitoring. The 330180-X1-05, when deployed within a fully compliant 3500 rack system, satisfies these requirements and provides the data necessary for predictive maintenance programmes. Integration with plant historians such as OSIsoft PI or AspenTech IP.21 allows long-term trend analysis and early fault detection.

In water treatment and municipal infrastructure, large pump stations and blower systems benefit from continuous monitoring to reduce unplanned downtime. The compact form factor of the 3300 XL system and the flexibility of the 330180-X1-05 extension cable configuration allow installation in space-constrained motor control centres and pump vaults. In mining and minerals processing, where conveyor drives, ball mills, and slurry pumps operate in harsh environments, the robust construction of the 3300 XL transducer system ensures reliable operation under high vibration, dust, and moisture conditions.

For packaging and discrete manufacturing lines, the 330180-X1-05 can be integrated into machine-level condition monitoring systems that feed data to a plant-wide OEE (Overall Equipment Effectiveness) platform, enabling maintenance teams to correlate vibration trends with production quality metrics and schedule interventions during planned downtime windows.

Product Compatibility FAQ

Q1: Is the 330180-X1-05 compatible with existing 3300 XL and 3500 series racks without hardware modification?
A: Yes. The 330180-X1-05 is designed as a direct replacement and extension cable component within the 3300 XL 8mm proximity transducer system. It is fully compatible with all 3300 XL proximitors and interfaces directly with 3500/22M, 3300/16, and other standard Bently Nevada monitor cards. No rack modification or firmware update is required for integration into an existing 3500 series chassis. Verify the proximitor gap voltage and sensitivity settings during commissioning to confirm calibration alignment with the installed monitor card.

Q2: How does the warranty terms confirmed during quotation apply, and what does it cover for system-critical installations?
A: All 330180-X1-05 units supplied by ZYPLC are tested prior to dispatch and covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. For system-critical installations, we recommend maintaining a spare unit on-site to minimise mean time to repair (MTTR). Warranty claims are processed with priority for customers operating under continuous-process or safety-instrumented system (SIS) constraints. Contact our technical team at plc.sales@zyplc.com for warranty registration and expedited replacement procedures.

Q3: What are the key commissioning checks for system integration of the 330180-X1-05 into a DCS or SCADA architecture?
A: system integration of the 330180-X1-05 requires verification at four levels. First, confirm physical installation gap (typically 1.0–1.5 mm for 8mm probes) and record the static gap voltage at the proximitor output. Second, verify signal routing through the marshalling panel and confirm shield grounding at one end only to prevent ground loops. Third, configure the monitor card (e.g., 3500/22M) with the correct transducer type, sensitivity (mV/mil), and alarm setpoints per API 670 or site-specific machinery protection philosophy. Fourth, validate communication to the DCS or historian by confirming live tag values, alarm propagation, and data archiving at the required scan rate. Document all settings in the as-built configuration record for long-term maintenance reference.
