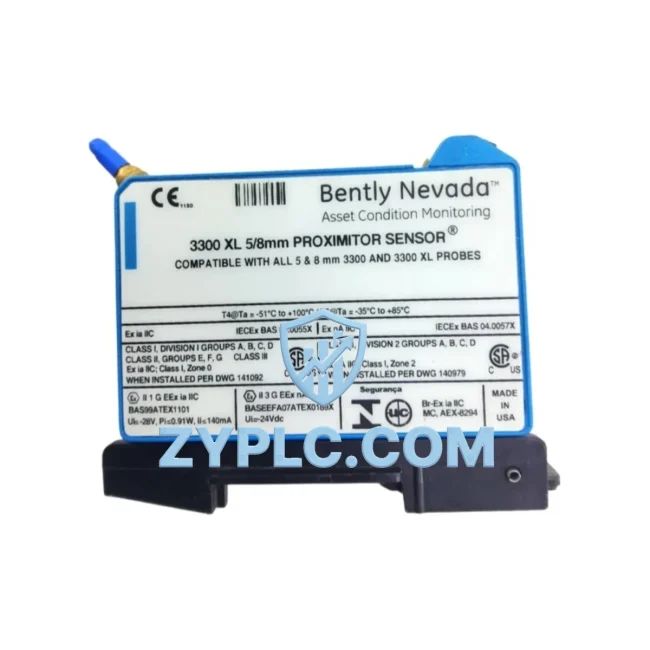

Bently Nevada 330180-X1-05 System-Ready Proximitor Sensor for 3300 Series Architecture

Bently Nevada 330180-X1-05 System-Ready Proximitor Sensor: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 330180-X1-05 Proximitor Sensor is a precision eddy-current proximity transducer engineered for seamless integration within the Bently Nevada 3300 Series machinery protection architecture. Rather than functioning as a standalone measurement device, the 330180-X1-05 occupies a critical node in a layered automation hierarchy — bridging the physical measurement layer with the signal conditioning, processing, and supervisory control layers that govern rotating machinery protection in industrial environments.

In modern industrial control system design, vibration monitoring is not an isolated function. It is a coordinated discipline that spans the sensor layer, the signal conditioning layer, the I/O and data acquisition layer, the communication and network layer, and ultimately the supervisory control and human-machine interface layer. The 330180-X1-05 is the originating point of this signal chain, converting mechanical shaft displacement into a precise DC voltage signal that feeds directly into the 3300 Series monitor rack — enabling real-time protection, trend analysis, and alarm management across the entire system.

Architecture Specification Table

Coordinated Control System Design

The 330180-X1-05 Proximitor Sensor achieves its full value only when understood within the context of the complete Bently Nevada 3300 Series control architecture. At the sensor layer, the 330180-X1-05 works in tandem with the 330130 Extension Cable and the 330180 Proximitor Driver (or integrated Proximitor within the monitor) to form a complete eddy-current measurement chain. The cable length and driver pairing must be matched to maintain calibration accuracy — a critical consideration during system commissioning and replacement.

At the signal conditioning and monitor layer, the output of the 330180-X1-05 feeds directly into the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor, which process the DC gap voltage into vibration amplitude, gap position, and alarm status. These monitors are housed within the 3300 Series Rack, a modular backplane system that supports multiple monitor cards, power supplies, and communication modules in a single 19-inch panel-mount enclosure.

For facilities requiring higher channel density or redundant protection, the Bently Nevada 3500 Series platform provides a natural upgrade path. The 3500 Series accepts the same eddy-current sensor inputs and extends the architecture with enhanced diagnostics, Modbus TCP/IP and PROFIBUS communication, and integration with Bently Nevada System 1 condition monitoring software — enabling plant-wide asset health visibility from a single supervisory interface.

At the power layer, the 3300 Series rack relies on dedicated 3300/05 Power Supply Modules that provide regulated –24 VDC to all installed monitor cards and connected Proximitor sensors. Redundant power supply configurations are available for critical machinery protection applications, ensuring that a single power supply failure does not interrupt vibration monitoring continuity.

At the network and communication layer, monitor relay outputs and 4–20 mA analog outputs connect to plant DCS systems — such as Emerson DeltaV, Honeywell Experion, or ABB 800xA — enabling the vibration protection layer to participate in plant-wide interlock and shutdown logic. This Contextual Integration capability ensures that the 330180-X1-05 sensor data is not siloed within the machinery protection system but is available to the broader process control architecture for coordinated response.

At the human-machine interface layer, operators interact with vibration data through System 1 Evolution software or through DCS operator stations that receive trend and alarm data via OPC-DA or OPC-UA gateways. This layered architecture — from the 330180-X1-05 sensor tip to the operator display — ensures that machinery protection is both automated and transparent, supporting rapid fault diagnosis and informed maintenance decisions.

Application in Layered Automation Systems

Power Generation (Gas Turbines & Steam Turbines): In gas turbine and steam turbine protection systems, the 330180-X1-05 is typically installed in X-Y pairs at each bearing journal, providing radial vibration and shaft centerline position data to the 3300 or 3500 Series monitor rack. Trip and alarm setpoints are configured within the monitor and linked to turbine control system interlocks, enabling automatic shutdown before bearing damage occurs. The 12-Month Warranty ensures that replacement sensors can be sourced and installed without extended lead times, minimizing turbine downtime.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressors in petrochemical service operate under API 670 machinery protection requirements, which mandate continuous non-contact vibration monitoring at all journal bearings. The 330180-X1-05, as a Bently Nevada-certified eddy-current sensor, satisfies these requirements and integrates directly with API 670-compliant monitor racks. In compressor train applications, multiple sensors monitor the compressor, gearbox, and driver simultaneously, with all data consolidated in the 3300 Series rack and transmitted to the plant safety instrumented system (SIS) via hardwired relay contacts.

Water & Wastewater Treatment Pump Stations: Large vertical turbine pumps and horizontal split-case pumps in water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, bearing wear, and cavitation-induced vibration. The 330180-X1-05 provides the non-contact measurement capability required for these applications, with the 3300 Series monitor providing local alarm indication and remote SCADA integration via 4–20 mA outputs.

Mining & Mineral Processing: In mining applications — including SAG mills, ball mills, and large slurry pumps — the 330180-X1-05 supports continuous condition monitoring of critical rotating assets. The sensor’s robust construction and wide operating temperature range make it suitable for the harsh environmental conditions typical of mineral processing facilities, where dust, moisture, and vibration levels are significantly higher than in conventional industrial settings.

Metallurgy & Steel Production: Rolling mill drives, continuous caster pinch rolls, and blast furnace blower trains represent high-value rotating assets where unplanned downtime carries significant production cost. The 330180-X1-05, integrated within a 3300 Series protection architecture, provides the real-time vibration data needed to support predictive maintenance programs and reduce unplanned outages in these demanding metallurgical environments.

Architecture Engineering FAQ

Q1: Is the 330180-X1-05 directly compatible with the Bently Nevada 3500 Series monitor rack, or is it limited to the 3300 Series?
The 330180-X1-05 Proximitor Sensor is primarily calibrated and specified for the Bently Nevada 3300 Series architecture. However, it can be used with 3500 Series monitors when the correct extension cable length and driver pairing are maintained to preserve the calibration chain. For new 3500 Series installations, Bently Nevada recommends using sensors from the 330100 or 330500 Series, which are factory-calibrated for 3500 Series monitors. If you are replacing a sensor in an existing 3300 Series rack, the 330180-X1-05 is the correct direct replacement. Our team can advise on cross-series compatibility for your specific architecture.

Q2: What extension cable length is required, and how does cable length affect system calibration?
The Bently Nevada eddy-current measurement system — comprising the 330180-X1-05 sensor, extension cable, and Proximitor driver — must be used as a matched set with a total cable length that falls within the calibrated range (typically 5 meters or 9 meters total). Changing the extension cable length without recalibrating the system will introduce measurement error and may cause false alarms or missed trips. When ordering a replacement 330180-X1-05, confirm the existing extension cable part number (e.g., 330130-045-00-00 for a 5-meter cable) to ensure the complete measurement chain remains within calibration. All sensors supplied under our 12-Month Warranty are tested as part of a complete measurement chain prior to shipment.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
Our 12-Month Warranty covers the 330180-X1-05 Proximitor Sensor against defects in materials and workmanship under normal operating conditions. Each unit is functionally tested prior to shipment to verify output sensitivity, linearity, and electrical integrity. For maintenance planners, this warranty provides a defined coverage window that aligns with annual maintenance turnaround cycles — allowing facilities to schedule sensor replacements during planned outages with confidence that the replacement unit is covered for the subsequent operating year. We maintain stock of the 330180-X1-05 and related 3300 Series components to support both planned maintenance and emergency replacement requirements.
