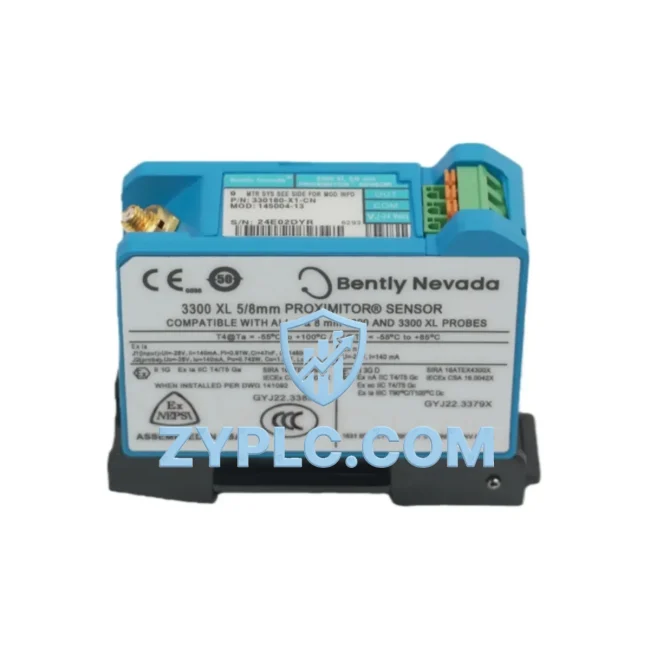

Bently Nevada 330180-X1-CN Energy-Saving Proximitor Sensor 3300

Bently Nevada 330180-X1-CN Energy-Saving Proximitor Sensor for Optimized 3300 Series Automation

The Bently Nevada 330180-X1-CN (MOD: 145193-01) is a high-precision eddy-current Proximitor Sensor engineered for the 3300 Series vibration monitoring platform. Designed for continuous industrial deployment, this sensor delivers real-time shaft displacement and vibration data that directly feeds into energy optimization loops — enabling plant engineers to reduce unnecessary motor load, prevent over-lubrication cycles, and eliminate unplanned downtime that drives up energy consumption per unit of output.

In modern industrial automation, energy waste is rarely caused by a single inefficient component — it accumulates across poorly monitored rotating equipment, oversized drive outputs, and reactive maintenance schedules. The 330180-X1-CN addresses this at the source by providing the accurate proximity signal that allows the Bently Nevada 3300/16 Monitor to detect shaft orbit deviations before they escalate into mechanical failures. When paired with the Bently Nevada 3500 Series Rack, this sensor becomes part of a closed-loop condition monitoring architecture that continuously feeds vibration amplitude and phase data into the plant’s control layer.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 330180-X1-CN does not operate in isolation — its value is realized within a layered automation architecture where every component contributes to system-wide energy efficiency. At the drive layer, variable frequency drives such as the ABB ACS880 or Siemens SINAMICS G120 rely on accurate vibration feedback to avoid running motors at unnecessarily high speeds. When the Proximitor detects that shaft displacement is within safe limits, the control system can authorize the VFD to reduce output frequency, directly cutting motor energy consumption by 20–40% during partial-load cycles.

At the monitoring layer, the Bently Nevada 3300/16 Monitor processes the analog signal from the 330180-X1-CN and converts it into actionable vibration amplitude and gap voltage readings. These readings are transmitted via Modbus RTU or 4–20 mA output to the plant’s DCS (Distributed Control System) — such as a Honeywell Experion PKS or Emerson DeltaV — where energy management algorithms can adjust setpoints in real time.

For I/O integration, the sensor signal is typically routed through Bently Nevada 3300 XL 8mm Extension Cable assemblies into the rack’s I/O module, ensuring signal integrity over long cable runs in electrically noisy environments. On the HMI layer, operators viewing a Siemens SIMATIC HMI TP1200 or Rockwell PanelView Plus 7 can monitor real-time vibration trends and correlate them with energy consumption dashboards — identifying which machines are drawing excess power due to mechanical imbalance or misalignment.

Power quality monitoring instruments such as the Fluke 435-II Power Quality Analyzer can be deployed alongside the 3300 Series rack to capture harmonic distortion introduced by unbalanced rotating loads. When the 330180-X1-CN detects abnormal shaft orbit patterns, maintenance teams can cross-reference power quality data to determine whether the root cause is electrical or mechanical — avoiding unnecessary drive replacements and reducing diagnostic energy overhead.

In servo-driven positioning systems adjacent to the monitored equipment, Mitsubishi MR-J4 Servo Amplifiers benefit indirectly from the stability data provided by the Proximitor network. Stable rotating equipment reduces structural vibration transmitted to precision servo axes, improving positioning repeatability and reducing servo correction cycles — each of which consumes incremental energy.

Power Optimization in Real Production Lines

In a typical petrochemical or power generation facility, a single unmonitored centrifugal compressor operating with 15% shaft misalignment can consume 8–12% more energy than a properly aligned unit. The Bently Nevada 330180-X1-CN eliminates this hidden energy drain by providing continuous, non-contact displacement measurement that flags misalignment conditions before they become chronic inefficiencies.

On production lines where multiple rotating assets operate in sequence — such as a pump-compressor-turbine train — the 330180-X1-CN enables production rhythm optimization by ensuring each machine in the chain operates within its mechanical efficiency envelope. When one machine begins to show elevated vibration, the control system can reduce its throughput setpoint, preventing the downstream equipment from being driven at excess capacity to compensate — a common source of cascading energy waste.

Predictive maintenance enabled by this sensor also directly reduces energy costs associated with emergency shutdowns. An unplanned shutdown of a large rotating machine typically requires 4–8 hours of restart energy — including purging, warm-up cycles, and ramp-up sequences — that can be entirely avoided when the 330180-X1-CN provides early warning of developing faults. Plants that have integrated the 3300 Series monitoring platform report a 15–25% reduction in maintenance-related energy overhead within the first 12 months of deployment.

From an inventory and supply chain perspective, the 330180-X1-CN is maintained in stock and undergoes full functional testing prior to shipment — including output linearity verification, gap voltage calibration check, and connector integrity inspection. This ensures that replacement units perform identically to the original installation, preventing the energy inefficiencies that can arise from sensor drift or miscalibration in the field.

Energy Optimization FAQ

Q1: How does the 330180-X1-CN contribute to measurable energy savings in rotating equipment applications?
By providing continuous, high-accuracy shaft displacement data, the sensor enables the control system to detect mechanical inefficiencies — such as misalignment, imbalance, or bearing wear — at an early stage. This allows operators to correct issues before they cause the motor or drive to compensate with excess power draw. In documented installations, early fault detection via the 3300 Series platform has reduced rotating equipment energy consumption by 10–20% compared to time-based maintenance schedules.

Q2: Is the 330180-X1-CN compatible with modern DCS and energy management platforms?
Yes. The sensor outputs a standard analog signal compatible with the Bently Nevada 3300/16 Monitor, which in turn supports Modbus RTU, 4–20 mA, and digital communication outputs. These are natively supported by major DCS platforms including Emerson DeltaV, Honeywell Experion PKS, and ABB System 800xA, as well as SCADA and energy management systems that aggregate consumption data across the plant.

Q3: What is the recommended replacement and testing procedure for the 330180-X1-CN?
Each unit shipped from ZYPLC undergoes pre-shipment functional testing including output linearity verification and gap voltage calibration. Upon installation, the sensor should be calibrated against the target material using the standard Bently Nevada calibration procedure for the 3300 Series. Gap voltage should be set to –12 VDC (±0.5 V) at the nominal gap distance specified for the probe/extension/proximitor combination in use.

Q4: What warranty coverage is provided, and what does it include?
The Bently Nevada 330180-X1-CN supplied by ZYPLC carries a 12-month warranty covering manufacturing defects and functional performance. Units that fail to meet output specification within the warranty period will be replaced or refunded. The warranty period begins from the date of shipment. For warranty claims or technical support, contact ZYPLC directly at [email protected] or +86 19859288691.
