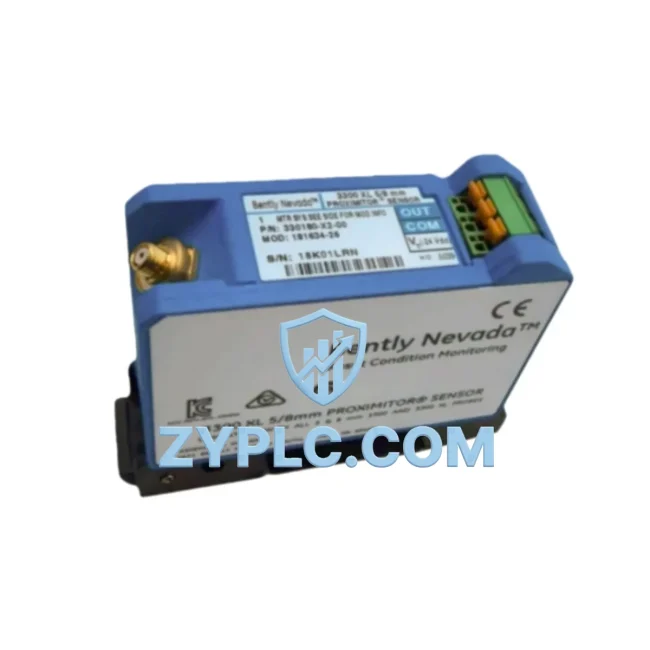

Bently Nevada 330180-X2-00 Energy-Saving Proximity Sensor 3300 XL

Bently Nevada 330180-X2-00 Energy-Saving Proximity Sensor for Optimized 3300 XL Automation

The Bently Nevada 330180-X2-00 (MOD:181634-02) is a high-precision eddy-current proximity sensor engineered for the 3300 XL Series machinery protection and condition monitoring platform. Designed for continuous operation in demanding industrial environments, this sensor delivers accurate, real-time shaft displacement and vibration data that directly supports energy-efficient machine control, predictive maintenance scheduling, and production line throughput optimization. By providing reliable feedback to the 3300 XL monitoring system, the 330180-X2-00 helps plant engineers eliminate unnecessary energy consumption caused by undetected mechanical imbalance, misalignment, and bearing wear.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to detect early-stage mechanical anomalies is critical. The 330180-X2-00 proximity sensor continuously monitors rotor dynamics and shaft position, feeding precise displacement signals into the Bently Nevada 3300 XL Monitor. This closed-loop feedback enables the control system to adjust motor drive parameters in real time, preventing overconsumption by variable-frequency drives and reducing reactive power losses across the electrical distribution network. When integrated with a Bently Nevada TK3 Extension Cable and a compatible 3300 XL Proximitor Sensor driver, the system achieves measurement linearity that supports both API 670 compliance and ISO 10816 vibration severity assessments.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 330180-X2-00 operates as the primary sensing element within a layered industrial automation architecture designed to minimize energy waste at every stage of the production process. At the field level, the sensor’s eddy-current probe tip is mounted adjacent to the rotating shaft, continuously generating a gap-proportional voltage signal that is transmitted via the Bently Nevada TK3 Extension Cable to the 3300 XL Proximitor driver module. The Proximitor conditions the raw signal and delivers a calibrated output to the Bently Nevada 3300 XL Monitor, which processes vibration, eccentricity, and axial position data in real time.

At the control layer, the 3300 XL Monitor communicates alarm and trip signals to the plant’s distributed control system (DCS) or programmable logic controller. In facilities running Rockwell Automation Allen-Bradley ControlLogix PLCs or Siemens S7-300/S7-400 PLCs, the vibration trip output from the 3300 XL can be wired directly into the PLC’s digital input module, triggering automated load-shedding or speed-reduction routines on connected ABB ACS880 variable-frequency drives or Siemens SINAMICS G120 drives. This integration ensures that when the 330180-X2-00 detects abnormal shaft displacement indicative of bearing degradation or rotor imbalance, the drive system responds immediately by reducing motor speed, cutting energy draw before mechanical damage escalates.

For facilities implementing advanced energy monitoring, the 3300 XL platform can be networked via Modbus TCP/IP or PROFIBUS DP to a Schneider Electric PowerLogic PM8000 power quality meter, enabling correlation between mechanical vibration events and real-time power consumption spikes. This data correlation allows energy managers to identify which rotating assets are consuming disproportionate power relative to their mechanical condition, prioritizing maintenance interventions that deliver the highest energy savings per maintenance dollar spent. The Bently Nevada System 1 Condition Monitoring Software aggregates all sensor data streams, providing trend analysis dashboards that support both energy audits and predictive maintenance planning.

At the human-machine interface layer, operators can monitor shaft displacement trends and energy consumption KPIs simultaneously through Siemens SIMATIC HMI TP1200 Comfort panels or equivalent operator stations integrated with the plant’s SCADA network. This unified visibility reduces the cognitive load on operators and enables faster, more informed decisions about load balancing and equipment scheduling — directly improving overall equipment effectiveness (OEE) and reducing idle-running energy waste.

Power Optimization in Real Production Lines

In continuous-process industries such as petrochemical refining, power generation, and large-scale HVAC, rotating machinery such as centrifugal compressors, steam turbines, and boiler feed pumps operate around the clock. Even minor mechanical inefficiencies — a 5-micron increase in shaft runout, a developing bearing defect, or a slight rotor imbalance — can translate into measurable increases in motor current draw and, over weeks of operation, significant additional energy expenditure. The Bently Nevada 330180-X2-00 proximity sensor addresses this challenge by providing the continuous, high-resolution displacement data needed to detect these inefficiencies before they become energy-wasting faults.

Consider a typical centrifugal pump application: the 330180-X2-00 is installed to monitor radial shaft displacement at the drive-end bearing. As the bearing begins to wear, shaft orbit diameter increases. The 3300 XL Monitor detects this change and issues an alert to the plant DCS. The DCS instructs the connected variable-frequency drive to reduce pump speed by 5%, maintaining process flow within acceptable limits while reducing motor power consumption by approximately 14% (following the affinity laws for centrifugal machines). This automated response — made possible by the precision of the 330180-X2-00 — prevents both energy waste and unplanned downtime, preserving production line throughput and avoiding the high costs associated with emergency maintenance.

From a maintenance cost perspective, the 330180-X2-00 supports a shift from time-based to condition-based maintenance scheduling. Rather than replacing bearings and seals on fixed intervals regardless of actual wear state, maintenance teams can use the continuous vibration trend data to schedule interventions precisely when needed. This approach reduces unnecessary parts consumption, minimizes planned downtime windows, and ensures that maintenance labor is deployed where it delivers the greatest reliability and energy efficiency benefit. All units supplied by ZYPLC are tested prior to shipment, verified against OEM specifications, and covered by a 12-month warranty, ensuring that the sensor performs to specification from day one of installation.

Inventory availability is maintained to support rapid deployment in both planned maintenance projects and emergency replacement scenarios. ZYPLC stocks the 330180-X2-00 MOD:181634-02 and related 3300 XL Series components, enabling same-day or next-day dispatch to minimize production line downtime and restore energy-efficient operation as quickly as possible.

Energy Optimization FAQ

Q1: How does the 330180-X2-00 contribute to measurable energy savings on the production line?
The 330180-X2-00 provides continuous, high-resolution shaft displacement data to the 3300 XL monitoring system. This real-time feedback enables the control system to detect mechanical inefficiencies — such as bearing wear, rotor imbalance, or misalignment — at an early stage. By triggering automated speed adjustments on connected variable-frequency drives before faults worsen, the sensor helps reduce motor energy consumption and prevents the energy waste associated with running degraded machinery at full load.

Q2: Is the 330180-X2-00 compatible with existing 3300 XL Series installations and third-party control systems?
Yes. The 330180-X2-00 MOD:181634-02 is fully compatible with the Bently Nevada 3300 XL Monitor and Proximitor driver ecosystem. Its standard DC voltage output and API 670-compliant signal conditioning make it straightforward to integrate with third-party DCS and PLC platforms via conventional analog input modules or through the 3300 XL’s digital communication interfaces. Compatibility with Modbus TCP/IP and PROFIBUS DP networks is supported through the 3300 XL system architecture.

Q3: What is the recommended replacement procedure, and how does ZYPLC support the process?
Replacement of the 330180-X2-00 follows standard Bently Nevada proximity sensor installation procedures: remove the existing probe, install the replacement at the correct gap distance (typically 50 mil / 1.27 mm for standard steel targets), verify output voltage within the linear range, and confirm alarm and trip setpoints in the 3300 XL Monitor. ZYPLC provides pre-shipment testing documentation for each unit, and our technical team can assist with gap-setting verification and system commissioning support.

Q4: What warranty coverage applies, and what does the pre-shipment testing process involve?
All 330180-X2-00 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Prior to dispatch, each sensor undergoes functional testing to verify output linearity, sensitivity (V/mil), and frequency response against OEM specifications. Test records are available upon request. In the event of a warranty claim, ZYPLC provides direct replacement support to minimize production line disruption.
