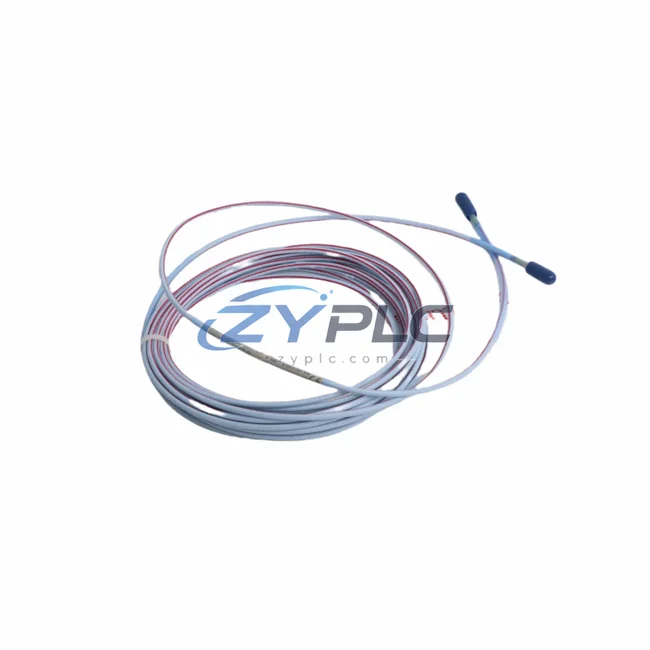

Bently Nevada 330190-080-00-00 Network Cable for 3300 XL Systems

Bently Nevada 330190-080-00-00: Industrial Data Link Cable for 3300 XL Proximitor Network Architecture

In modern industrial automation environments, the integrity of signal transmission between field-mounted proximity probes and their associated monitoring systems is not merely a hardware concern — it is a foundational element of plant-wide data reliability. The Bently Nevada 330190-080-00-00 is an 8-meter extension cable engineered specifically for the 3300 XL Proximitor Series, serving as the critical physical link that carries raw vibration and position signals from rotating machinery to the signal conditioning and monitoring layers of a complete machinery protection architecture.

Unlike generic industrial cabling, the 330190-080-00-00 is designed to maintain signal fidelity across the full operating range of the 3300 XL system. Its shielded construction minimizes electromagnetic interference from adjacent variable frequency drives, power distribution panels, and high-current motor circuits — all common sources of noise in heavy industrial environments such as petrochemical plants, power generation facilities, steel mills, and offshore platforms. When deployed correctly, this cable ensures that the analog gap voltage and dynamic vibration signals generated by a 330910-NSV proximity probe or a 330780-series proximity transducer arrive at the Proximitor sensor with full amplitude and phase accuracy, enabling the downstream monitoring system to make reliable alarm and trip decisions.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330190-080-00-00 extension cable occupies a precise position in the signal chain of a Bently Nevada machinery protection system. At the field level, a 330910-NSV proximity probe is mounted adjacent to the shaft of a critical rotating machine — a compressor, turbine, pump, or fan. The probe generates a continuous DC voltage proportional to the gap between its tip and the shaft surface, superimposed with an AC component representing shaft vibration. This composite signal must travel from the machine casing to the 3300 XL Proximitor sensor, which conditions the signal and outputs calibrated gap and vibration values.

The 330190-080-00-00 bridges this distance. Its 8-meter length accommodates installations where the Proximitor sensor is mounted in a local junction box or instrument enclosure some distance from the machine. From the Proximitor, the conditioned signal is transmitted via standard instrumentation wiring to a 3500/40M proximitor I/O module housed in a 3500 Series rack. The 3500 rack — which may also contain a 3500/22M transient data interface, a 3500/92 communication gateway module, and a 3500/15 power supply module — processes the incoming signals against configured alarm setpoints and issues relay outputs to the plant DCS or safety system.

At the supervisory level, the 3500/92 gateway communicates over Modbus TCP or OPC-DA to a System 1 Evolution software platform running on a plant historian server. System 1 aggregates vibration trend data, spectrum plots, and alarm histories from multiple 3500 racks across the facility, providing operators and reliability engineers with a unified view of rotating equipment health. This data is further integrated into the plant SCADA via an OPC server, enabling cross-correlation with process variables from the main DCS — such as flow rates, temperatures, and pressures — to support condition-based maintenance decisions.

In redundant protection architectures, a secondary 330190-080-00-00 cable may be routed alongside the primary, feeding a redundant Proximitor channel to ensure that no single cable failure can cause a loss of protection. This approach is common in API 670-compliant installations on critical machinery trains where continuous monitoring is mandatory.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial machinery monitoring is the fragmentation of data between field instruments, local protection systems, and plant-wide information networks. When extension cables are sourced from non-OEM suppliers or when cables of incorrect length are used, impedance mismatches and connector incompatibilities introduce signal errors that manifest as false alarms, missed trips, or degraded sensitivity — all of which undermine the value of the entire monitoring investment.

The 330190-080-00-00 eliminates this risk by providing a fully characterized, OEM-specified cable that integrates seamlessly into the 3300 XL signal chain. Its use ensures that the system’s factory calibration remains valid, that alarm setpoints correspond accurately to actual shaft displacement, and that the data flowing into System 1 or the plant DCS reflects true machine behavior rather than cable-induced artifacts.

For facilities managing large fleets of rotating equipment — refineries with dozens of compressor trains, power plants with multiple turbine-generator sets, or LNG terminals with critical pump systems — standardizing on OEM-specified cables such as the 330190-080-00-00 reduces troubleshooting time, simplifies spare parts management, and supports the plant’s long-term reliability program. Procurement teams benefit from a single, traceable part number with a documented warranty terms confirmed during quotation, reducing the administrative burden of managing multiple cable variants across different machine types.

From a smart factory perspective, the reliability of the physical signal layer directly determines the quality of the digital data available for analytics, predictive maintenance algorithms, and digital twin models. A compromised cable introduces noise that propagates through every layer of the data architecture — from the Proximitor output to the historian database to the machine learning model. By specifying the correct OEM cable, engineers protect the integrity of the entire data pipeline, from rotating shaft to enterprise asset management system.

Industrial Connectivity FAQ

Q1: Is the 330190-080-00-00 compatible with both the 3300 XL Proximitor and the older 3300 Series Proximitor sensors?
A: The 330190-080-00-00 is specified for the 3300 XL Proximitor system. While the connector interface is physically similar to earlier 3300 Series components, Bently Nevada recommends verifying compatibility with the specific Proximitor model in use. For legacy 3300 (non-XL) installations, consult the system documentation or contact our technical team to confirm the correct cable part number for your configuration.

Q2: Can this cable be used in hazardous area (Ex) installations?
A: The 330190-080-00-00 is designed for standard industrial environments. For installations in Zone 1 or Zone 2 hazardous areas classified under ATEX or IECEx, the complete signal chain — including probe, extension cable, and Proximitor — must be evaluated as a certified system. Bently Nevada offers Ex-certified variants of the 3300 XL system components. Please verify the area classification and applicable certifications before specifying cables for hazardous locations.

Q3: What is the warranty coverage and how is it supported?
A: All 330190-080-00-00 extension cables supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and electrical performance. In the event of a warranty claim, our team provides rapid replacement support to minimize machine downtime. Each unit is inspected and tested prior to shipment, and documentation is available upon request to support your plant’s quality management system.

Q4: How does cable length affect system performance, and can I use a shorter or longer cable?
A: The total cable system length — comprising the probe cable and extension cable combined — must fall within the range specified for the Proximitor model in use, typically 5 to 9 meters for standard 3300 XL configurations. Using a cable outside this range alters the system’s scale factor and can cause calibration errors. The 330190-080-00-00 at 8 meters is designed to work within this specification when paired with the appropriate short probe cable. Always verify the total system length against the Proximitor’s calibration documentation before installation.
