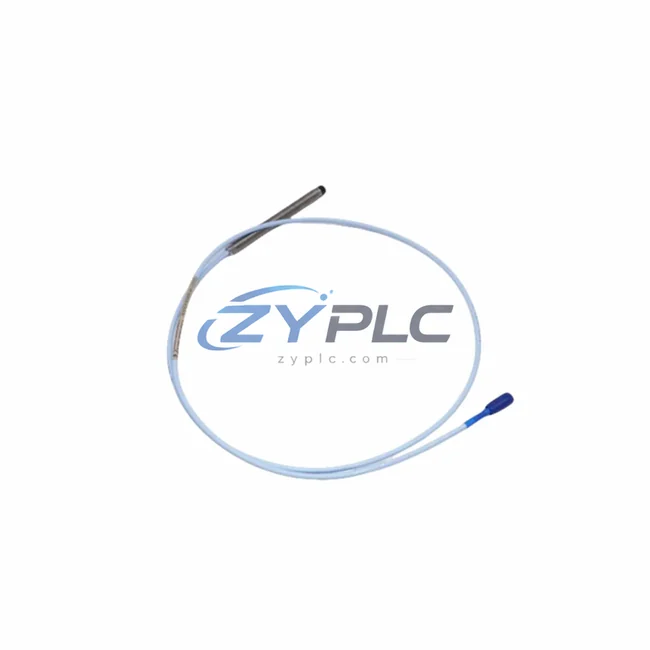

Bently Nevada 330193-09-20-05-00 Proximity Probe for 3300 Series

Bently Nevada 330193-09-20-05-00 Proximity Probe for 3300 Series

In modern industrial automation and machinery protection systems, every component must be evaluated not in isolation, but as an integral node within a layered control architecture. The Bently Nevada 330193-09-20-05-00 proximity probe is a precision eddy-current sensing element engineered for seamless deployment within the Bently Nevada 3300 Series vibration monitoring platform. Its role extends far beyond simple displacement measurement — it serves as the primary signal source for the entire condition monitoring chain, feeding real-time shaft vibration and position data upward through signal conditioning modules, communication gateways, and ultimately into the plant-wide DCS or safety instrumented system (SIS).

Understanding the 330193-09-20-05-00 within its system context means recognizing how it interacts with the 3300 XL 8mm Extension Cable, the 3300 XL Proximitor Sensor, the 3500/42M Proximitor/Seismic Monitor module, and the broader 3500 Series rack infrastructure. Each of these components is designed to maintain signal integrity across the full measurement chain, from the probe tip to the operator workstation. When the 330193-09-20-05-00 is correctly installed and calibrated, it enables the 3500 rack to deliver gap voltage, direct vibration (1X, 2X), and Keyphasor reference signals with the accuracy required for API 670-compliant machinery protection.

Product Specification Table

System Compatibility Notes

The 330193-09-20-05-00 proximity probe does not operate as a standalone device. Its value is realized only when it is correctly matched with the full signal chain of the Bently Nevada 3300 and 3500 Series ecosystem. In a typical turbomachinery protection architecture, the probe is paired with a 3300 XL 5mm or 8mm Proximitor Sensor, which provides the oscillator-demodulator circuitry necessary to convert the raw eddy-current signal into a calibrated DC voltage. This voltage is then routed via shielded cable to a 3500/42M Proximitor/Seismic Monitor or a 3500/40M Proximitor Monitor installed in a 3500 Series rack.

The 3500 rack itself is a modular platform that may include a 3500/15 Power Supply module, a 3500/22M Transient Data Interface, and a 3500/92 Communication Gateway for Modbus TCP or OPC-UA connectivity to the plant DCS — commonly a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA. In redundant configurations, dual 3500/15 power supplies and mirrored monitor modules ensure that a single-card failure does not interrupt machinery protection coverage. The Keyphasor signal, typically sourced from a dedicated 330180 or 330130 Series Keyphasor probe, is distributed across the rack to enable phase-referenced vibration analysis on all channels simultaneously.

At the human-machine interface layer, vibration trend data from the 330193-09-20-05-00 is visualized through System 1 Evolution software or a third-party SCADA platform, allowing maintenance engineers to track shaft centerline plots, orbit diagrams, and alarm histories over time. The integration of this probe into a complete architecture — from the probe tip through the Proximitor, monitor rack, communication gateway, and operator workstation — ensures that machinery health data is available at every level of the control hierarchy, supporting both real-time protection and long-term predictive maintenance strategies.

Industrial Application Notes

The Bently Nevada 330193-09-20-05-00 finds application across a wide range of heavy industrial sectors where rotating machinery reliability is critical to process continuity. In power generation plants, it monitors shaft vibration on steam turbines and gas turbines, providing the early warning data needed to prevent catastrophic bearing failures. In petrochemical and refinery environments, it is installed on centrifugal compressors and boiler feed pumps, where API 670 compliance is a contractual and regulatory requirement.

In the water and wastewater treatment sector, large vertical turbine pumps and blower trains benefit from continuous vibration monitoring enabled by the 330193-09-20-05-00, reducing unplanned downtime and extending mean time between maintenance intervals. Mining and mineral processing operations deploy this probe on ball mills, SAG mills, and slurry pumps, where harsh environmental conditions demand the probe’s robust construction and wide operating temperature range. In LNG liquefaction trains and offshore platform compressor packages, the probe’s compatibility with the 3500 Series safety-rated monitoring rack makes it a preferred choice for SIL-rated machinery protection loops.

Across all these applications, the 330193-09-20-05-00 contributes to a layered automation architecture where the field sensing layer, the signal conditioning layer, the protection logic layer, and the supervisory control layer are tightly integrated. This system integration ensures that vibration data is not merely collected but acted upon — triggering alarms, initiating controlled shutdowns, and feeding predictive analytics platforms that drive maintenance scheduling and spare parts planning.

Product Compatibility FAQ

Q1: Is the 330193-09-20-05-00 compatible with the Bently Nevada 3500 Series monitoring rack?
Yes. The 330193-09-20-05-00 is designed for use within the Bently Nevada 3300 Series probe system, which is fully compatible with the 3500/42M and 3500/40M monitor modules. The probe must be paired with the correct 3300 XL Proximitor Sensor to complete the signal conditioning chain before connecting to the 3500 rack. Verify the extension cable length and connector configuration match your installation requirements prior to commissioning.

Q2: How does this probe support redundant architecture and long-term maintainability?
In redundant machinery protection designs, dual probes are installed at 90° orientations (X and Y planes) on each bearing journal, feeding independent monitor channels within the 3500 rack. This configuration ensures that a single probe failure does not result in loss of protection coverage. The 330193-09-20-05-00’s standardized MIL-C-5015 connector and documented calibration curve simplify field replacement without requiring full system recalibration, reducing mean time to repair and supporting long-term maintenance efficiency.

Q3: What does the warranty terms confirmed during quotation cover, and how is system integration support provided?
Every 330193-09-20-05-00 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each probe undergoes functional verification to confirm sensitivity, linearity, and connector integrity. Our engineering team provides system integration support — including gap voltage setup guidance, Proximitor matching, and 3500 rack configuration advice — to ensure the probe performs correctly within your specific control system architecture from day one.
