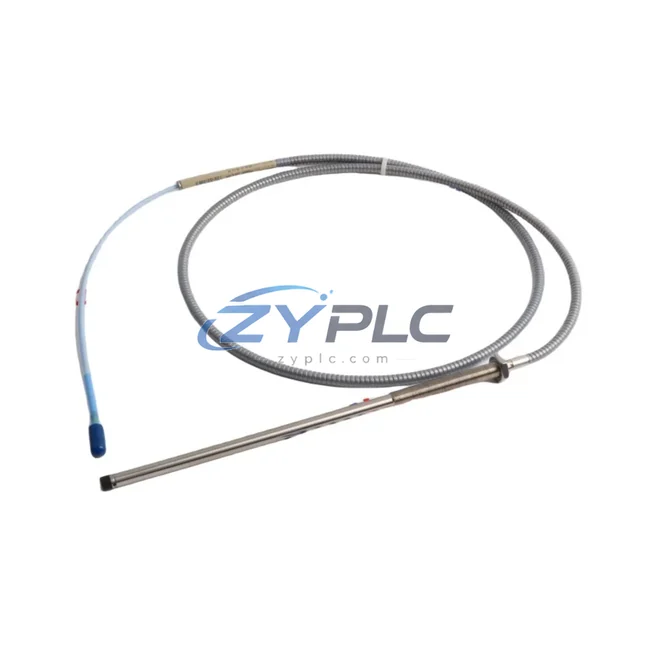

Bently Nevada 330194-00-06-05-00 Proximity Probe for 3300 Series

Bently Nevada 330194-00-06-05-00 Proximity Probe for 3300 Series Automation

In modern industrial facilities where uptime and energy efficiency are inseparable goals, the Bently Nevada 330194-00-06-05-00 Proximity Probe stands as a precision sensing component engineered to deliver continuous, non-contact shaft displacement measurement within the 3300 Series condition monitoring architecture. By providing real-time vibration and position data directly to the control layer, this probe enables plant engineers to eliminate reactive maintenance cycles, reduce unnecessary motor run-time, and optimize the energy consumption profile of rotating machinery across compressors, turbines, pumps, and gearboxes.

Unlike passive monitoring approaches, the 330194-00-06-05-00 integrates seamlessly into a closed-loop feedback environment. Its eddy-current sensing principle delivers high-resolution gap voltage signals that feed directly into the Bently Nevada 3300 XL 8mm Extension Cable and 3300 XL Proximitor Sensor, forming a complete proximity transducer system. This signal chain ensures that the Bently Nevada 3500/42M Proximitor Seismic Monitor receives clean, low-noise data for threshold alarming and trip logic — preventing catastrophic failures that would otherwise result in extended downtime and energy-intensive restart sequences.

Product Specification Table

System Compatibility and Application

The 330194-00-06-05-00 does not operate in isolation — it is the sensing front-end of a layered industrial automation architecture designed to minimize downtime at every stage of the production process. At the signal acquisition layer, the probe pairs with the Bently Nevada 330130-080-00-00 Extension Cable to transmit gap voltage signals over long cable runs without signal degradation, ensuring that the Bently Nevada 330180-X1-05 Proximitor Sensor receives accurate displacement data regardless of installation distance from the machinery.

At the monitoring and alarming layer, the Bently Nevada 3500/42M Proximitor Seismic Monitor processes the incoming vibration signals and compares them against user-defined alert and danger setpoints. When integrated with the Bently Nevada System 1 Software, plant operators gain a unified dashboard for trending shaft centerline plots, orbit analysis, and Bode plots — all of which are critical for identifying developing faults before they escalate into energy-intensive failure events.

On the drive and control side, the proximity data feeds into the plant’s DCS or PLC layer — commonly a GE Fanuc 90-30 PLC or Emerson DeltaV DCS — where motor speed references and load-shedding logic can be adjusted dynamically based on real-time vibration trends. This integration allows variable frequency drives (VFDs) controlling the associated motor to reduce speed during low-load periods, directly cutting kWh consumption without sacrificing process throughput.

For facilities running Bently Nevada 3500/22M Transient Data Interface modules alongside the 330194-00-06-05-00, transient capture during machine startups and coastdowns provides additional energy profiling data — identifying whether a motor is drawing excessive current during acceleration phases due to misalignment or imbalance conditions that the proximity probe has already flagged. Correcting these mechanical faults reduces motor inrush energy and extends bearing life simultaneously.

Communication to the plant historian and maintenance planning system is typically handled via Modbus TCP or OPC-UA protocol bridges embedded in the 3500 rack, allowing the 330194-00-06-05-00’s data stream to contribute to ISO 50001 maintenance planning reporting without additional instrumentation overhead.

Maintenance and Replacement Notes

In a typical petrochemical or power generation facility, a single undetected bearing fault on a high-speed compressor can result in an unplanned shutdown lasting 48–72 hours, consuming tens of thousands of kWh in emergency restart energy, purge cycles, and auxiliary system operation. The Bently Nevada 330194-00-06-05-00 Proximity Probe, installed as part of a complete 3300 Series transducer system, provides the early-warning capability that makes such events preventable.

By continuously monitoring shaft radial position and vibration amplitude, the probe enables maintenance teams to schedule corrective interventions — bearing replacements, alignment corrections, balance adjustments — during planned outage windows. This shift from reactive to predictive maintenance directly reduces the energy penalty associated with emergency restarts and shortens the mean time to repair (MTTR) by ensuring that spare parts and labor are pre-positioned before the machine is taken offline.

On production lines where multiple rotating assets operate in series — such as a boiler feedwater pump train feeding a steam turbine generator — the 330194-00-06-05-00 provides the shaft position data needed to verify that each machine is running within its designed efficiency envelope. A pump operating with excessive shaft runout due to worn bearings will consume 5–15% more power than a properly aligned unit at the same flow rate. Detecting and correcting this condition through proximity probe data directly translates to measurable kWh savings on the facility’s energy bill.

Furthermore, the non-contact measurement principle of the eddy-current probe means that the sensing element itself introduces zero mechanical drag or friction into the monitored system — unlike contact-type sensors that can influence the very measurement they are trying to capture. This makes the 330194-00-06-05-00 particularly well-suited for high-speed applications where sensor-induced losses would be unacceptable from both an accuracy and an energy efficiency standpoint.

All units are shipped following full functional testing and output verification. Stock is maintained for shipment arranged after confirmation, supporting fast replacement cycles that minimize production downtime. Each 330194-00-06-05-00 is backed by a covering manufacturing defects and performance deviations from published specifications.

Product Sourcing FAQ

Q1: How does the 330194-00-06-05-00 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, the probe enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear. Correcting these faults before they worsen keeps motors and driven equipment operating within their designed efficiency curves, reducing excess power draw and preventing the energy-intensive consequences of unexpected shutdowns.

Q2: Is the 330194-00-06-05-00 compatible with existing Bently Nevada 3500 Series monitoring racks?
Yes. The 330194-00-06-05-00 is designed to operate within the Bently Nevada 3300 and 3500 Series ecosystems. When paired with the appropriate Proximitor Sensor and extension cable, it integrates directly with 3500/42M monitor modules and System 1 software without requiring additional signal conditioning hardware.

Q3: What is the recommended replacement interval, and how should the probe be tested before installation?
Bently Nevada recommends verifying probe output voltage and sensitivity (mV/mil) against the published calibration curve prior to installation. Each unit supplied by ZYPLC has been pre-tested for output linearity and gap voltage accuracy. In service, probes should be inspected during scheduled outages for tip contamination, cable jacket integrity, and connector condition. There is no fixed calendar-based replacement interval — condition-based replacement guided by trending data is the recommended approach.
