Bently Nevada 330194-04-20-50-CN Proximity Probe for ETR Systems

Bently Nevada 330194-04-20-50-CN: Industrial Data Link for ETR Series Vibration Monitoring Systems

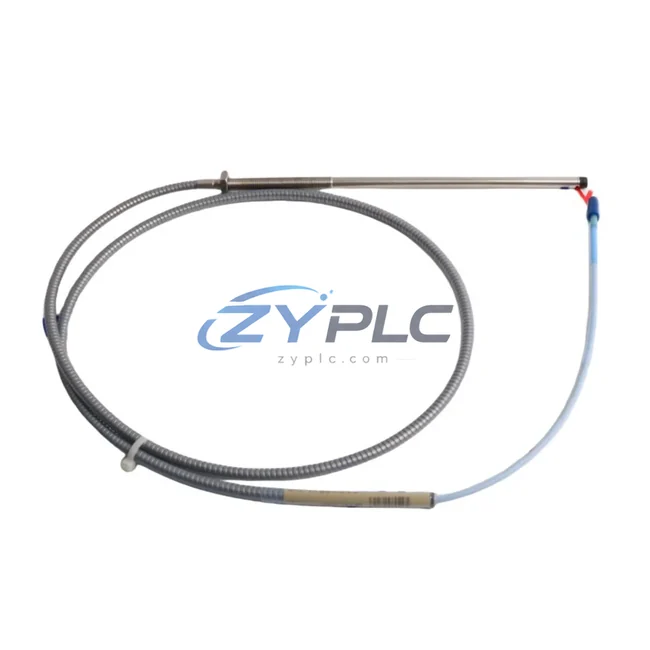

The Bently Nevada 330194-04-20-50-CN is a high-precision eddy current proximity probe from the ETR Series, engineered to serve as a critical sensing node in industrial vibration monitoring and machine protection networks. Designed for continuous, real-time shaft displacement and vibration measurement, this proximity probe forms the front-end data acquisition layer in complex industrial automation architectures — bridging rotating machinery directly to PLC controllers, SCADA platforms, and condition monitoring systems.

In modern smart factory environments, the integrity of the data chain from field sensor to control room is paramount. The 330194-04-20-50-CN operates as the primary signal source in a multi-tier connectivity architecture: raw eddy current signals are captured at the probe tip, transmitted through the extension cable to the Bently Nevada 3300 XL 8mm Proximitor Sensor (signal conditioner), and then converted into standardized 4–20 mA or voltage outputs compatible with downstream control and monitoring infrastructure. This seamless signal path ensures that vibration data from turbines, compressors, pumps, and motors reaches the control layer with minimal latency and maximum fidelity.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330194-04-20-50-CN sits at the origin of a sophisticated industrial data flow. At the field level, the probe continuously monitors shaft radial vibration and axial position on rotating equipment. Its eddy current signal is conditioned by the Bently Nevada 3300 XL Proximitor Sensor, which converts the raw probe output into a linear DC voltage or 4–20 mA signal — the universal language of industrial process control.

This conditioned signal feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, a rack-mounted I/O card within the 3500 Series machinery protection system. The 3500 rack communicates with plant-level infrastructure via Modbus TCP/IP or OPC-UA, enabling seamless data exchange with Emerson DeltaV DCS, Honeywell Experion PKS, or Siemens SIMATIC PCS 7 distributed control systems. Operators monitoring from a central control room can view real-time vibration trends, alarm thresholds, and historical waveform data through Bently Nevada System 1 Condition Monitoring Software — a powerful SCADA-layer application that aggregates data from multiple 3500 racks across the plant.

For facilities integrating legacy equipment, a Moxa MGate MB3180 Modbus gateway or a ProSoft Technology MVI56-MCM communication module can bridge the 4–20 mA analog output from the Proximitor into a Rockwell Automation Allen-Bradley ControlLogix PLC backplane, enabling the vibration data to participate in broader plant-wide automation logic. Remote I/O nodes such as the Beckhoff EK1100 EtherCAT Coupler can further distribute sensor data across high-speed fieldbus networks, reducing wiring complexity in large rotating machinery installations.

At the HMI layer, vibration data from the 330194-04-20-50-CN system is visualized on Wonderware InTouch or Ignition SCADA screens, where operators can configure alarm setpoints, trend historical data, and initiate remote diagnostic routines — all without physical access to the machine floor. Edge computing nodes such as the Advantech UNO-2484G Industrial IoT Gateway can pre-process vibration waveform data locally, applying FFT analysis before forwarding condensed diagnostic packets to cloud-based asset management platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Older rotating machinery installations often rely on standalone vibration monitors with no network connectivity, creating data silos that prevent plant-wide condition monitoring and predictive maintenance programs.

The Bently Nevada 330194-04-20-50-CN, when deployed within the 3500 Series architecture, directly addresses this challenge. Its standardized analog output is protocol-agnostic at the field level, making it compatible with virtually any industrial control system through appropriate signal conditioning and gateway hardware. By connecting the Proximitor output to a Modbus RTU-to-Ethernet gateway, facilities can bring previously isolated vibration data into their existing SCADA or MES infrastructure without replacing legacy PLCs or DCS hardware.

For multi-machine installations — such as a compressor train with multiple bearing measurement points — the 330194-04-20-50-CN can be deployed in arrays, with each probe feeding its own Proximitor channel in the 3500 rack. The rack’s built-in communication module then aggregates all channel data and transmits it as a unified data stream to the plant historian (such as OSIsoft PI System), enabling cross-machine correlation analysis and early fault detection.

Remote monitoring capabilities are equally robust. Through OPC-UA server functionality built into the 3500 system, vibration data from the 330194-04-20-50-CN can be securely transmitted over plant Ethernet to remote engineering workstations or cloud-based monitoring services — enabling off-site vibration analysts to review machine health data in real time, issue alarm acknowledgments, and recommend maintenance actions without traveling to the plant. This capability is particularly valuable for unmanned remote installations such as pipeline compressor stations or offshore platforms.

Every 330194-04-20-50-CN unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying probe sensitivity, linearity, and connector integrity before dispatch. All units are backed by a warranty terms confirmed during quotation and supported by RFQ-confirmed sourcing for rapid global deployment.

Industrial Connectivity FAQ

Q1: What communication protocols are compatible with the Bently Nevada 330194-04-20-50-CN system?
The 330194-04-20-50-CN generates an analog eddy current signal that is conditioned by the Bently Nevada Proximitor into a standard 4–20 mA or DC voltage output. This output is natively compatible with any analog input card in PLCs, DCS, or remote I/O systems. For digital network integration, the 3500 Series rack supports Modbus TCP/IP, OPC-UA, and optional Profibus DP communication modules, enabling connectivity with virtually all major industrial automation platforms.

Q2: How does the 330194-04-20-50-CN ensure network stability and data continuity in harsh industrial environments?
The ETR Series probe is constructed with a robust stainless steel housing and uses a coaxial cable assembly rated for high-temperature and high-vibration environments. The non-contact eddy current sensing principle eliminates mechanical wear, ensuring continuous, drift-free signal output. The 3500 Series monitoring rack provides redundant power supply options and watchdog diagnostics, automatically flagging probe or cable faults to the SCADA system without interrupting monitoring of other channels.

Q3: Can the 330194-04-20-50-CN be integrated into an existing SCADA or DCS system without replacing current infrastructure?
Yes. The standardized analog output from the Bently Nevada Proximitor is compatible with any analog input module, regardless of PLC or DCS brand. For facilities requiring digital integration, Modbus RTU/TCP or OPC-UA gateways can bridge the 3500 rack data into existing Siemens, Rockwell, Honeywell, or Emerson control systems. No proprietary software is required for basic analog integration.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 330194-04-20-50-CN?
All Bently Nevada 330194-04-20-50-CN units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including sensitivity verification, linearity check, and connector inspection. Availability confirmed by RFQ inventory ensures rapid dispatch, with global shipping available to support urgent maintenance and replacement requirements.
