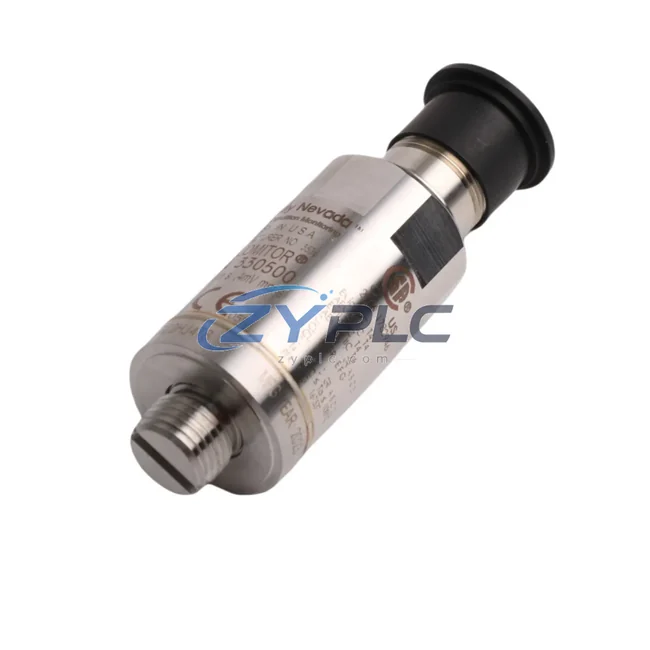

Bently Nevada 330500-01-CN Vibration Sensor for 3500

Bently Nevada 330500-01-CN Vibration Sensor for 3500: Compatibility and Replacement Notes

The Bently Nevada 330500-01-CN is a piezo-velocity vibration sensor engineered specifically for seamless integration within the Bently Nevada 3500 Series machinery protection system architecture. Rather than functioning as a standalone measurement device, the 330500-01-CN occupies a critical position within a layered industrial control hierarchy — bridging the physical machine layer and the signal conditioning layer to deliver continuous, high-fidelity vibration data to the 3500 rack-based monitoring platform. In rotating machinery protection environments spanning power generation, petrochemical processing, oil and gas compression, and heavy industrial manufacturing, the reliability of the entire protection chain depends on the precision and compatibility of every sensor in the field.

Within a complete 3500 system architecture, the 330500-01-CN connects directly to the 3500/42M Proximitor/Seismic Monitor Module, which processes velocity signals and applies alarm and danger setpoints configured through the System 1 Evolution software platform. The monitor module resides within the 3500 Rack — a modular backplane chassis that may also house the 3500/15 Power Supply Module, the 3500/22M Transient Data Interface, the 3500/32 4-Channel Relay Module, and the 3500/92 Communication Gateway Module for integration with DCS or SCADA systems via Modbus TCP or OPC-DA/UA protocols. This tightly coordinated architecture ensures that every velocity measurement captured by the 330500-01-CN is processed, alarmed, and transmitted within a unified, deterministic control framework.

Product Specification Table

System Compatibility Notes

The 330500-01-CN achieves its full value only when considered within the broader 3500 system architecture. At the rack level, the 3500/15 Power Supply Module provides conditioned DC power to all monitor modules, ensuring stable excitation for connected sensors including the 330500-01-CN. The 3500/42M Proximitor/Seismic Monitor Module receives the velocity signal, applies digital filtering, and compares real-time values against configured alert and danger thresholds. When a threshold is exceeded, the 3500/32 4-Channel Relay Module activates protective relay outputs to initiate machine shutdown sequences or annunciation to the plant DCS.

At the network and integration layer, the 3500/92 Communication Gateway Module enables the 3500 rack to publish live vibration data and alarm states to Distributed Control Systems via Modbus TCP or to asset management platforms via OPC-DA and OPC-UA. This allows operators monitoring from a Wonderware, Emerson DeltaV, or Honeywell Experion HMI station to observe 330500-01-CN velocity trends alongside process variables such as temperature, pressure, and flow — enabling true condition-based maintenance decisions rather than time-based inspection schedules.

For applications requiring transient data capture during machine startup and coast-down, the 3500/22M Transient Data Interface works in parallel with the 3500/42M to record high-resolution waveform data from the 330500-01-CN, which is then analyzed within System 1 Evolution software for Bode plots, polar plots, and orbit analysis. In redundant protection architectures, dual 330500-01-CN sensors may be installed on the same bearing housing, with each sensor routed to an independent monitor channel, ensuring that a single sensor failure does not compromise the protection function. The 3500 rack’s modular design also accommodates 3500/40M Proximitor Monitor Modules for eddy-current proximity probes on the same shaft, creating a comprehensive vibration monitoring solution that covers both relative shaft displacement and absolute casing velocity.

Industrial Application Notes

In power generation facilities, the 330500-01-CN is commonly installed on steam turbine bearing housings, gas turbine compressor casings, and generator end-shield brackets. The sensor feeds velocity data into the 3500 protection rack, which interfaces with the plant’s turbine control system to enforce vibration-based trip logic. In petrochemical and refinery environments, the 330500-01-CN monitors centrifugal compressors, pumps, and fans in API 670-compliant protection systems, where continuous uptime is critical and unplanned shutdowns carry significant safety and financial consequences.

In water treatment and municipal utility plants, the 330500-01-CN provides cost-effective seismic monitoring for large vertical pumps and blower units, where bearing deterioration is a primary failure mode. Mining and mineral processing operations deploy the sensor on ball mills, SAG mills, and conveyor drive gearboxes, where high ambient vibration and dust exposure demand robust sensor construction and reliable signal transmission. In metallurgical and steel plant environments, the 330500-01-CN withstands elevated ambient temperatures near furnace and rolling mill drives, providing continuous protection for critical rotating assets. Across all these industries, the sensor’s system integration capability — its ability to function as a calibrated, system-aware component within the 3500 architecture rather than a generic transducer — is the defining advantage that justifies its specification in new installations and replacement projects alike.

Product Compatibility FAQ

Q1: Is the 330500-01-CN directly compatible with all 3500 Series monitor modules, or only specific models?
The 330500-01-CN is a piezo-velocity (seismic) sensor and is designed for use with the 3500/42M Proximitor/Seismic Monitor Module, which accepts both proximity probe signals and seismic velocity inputs on dedicated input channels. It is not intended for use with proximity-only modules such as the 3500/40M without appropriate signal conditioning. Always verify the monitor module’s input channel configuration in the 3500 Rack Configuration software before installation to ensure correct channel type assignment and scaling.

Q2: Can the 330500-01-CN be integrated into an existing DCS or SCADA architecture without replacing the entire 3500 rack?
Yes. If the existing 3500 rack already includes a 3500/92 Communication Gateway Module, the 330500-01-CN’s processed data — including velocity amplitude, alarm state, and danger state — is available on the rack’s communication bus and can be mapped to Modbus TCP registers or OPC tags accessible by the plant DCS or SCADA historian. No hardware changes to the sensor or cabling are required; only gateway configuration updates in the 3500 Rack Configuration software are needed to expose the new channel data to the network layer.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation provided by ZYPLC covers the 330500-01-CN against manufacturing defects and premature failure under normal operating conditions as specified in the Bently Nevada product documentation. For maintenance engineers managing rotating equipment protection systems, this warranty provides a defined support window that aligns with annual maintenance planning cycles. In practice, it means that if a sensor exhibits signal drift, connector failure, or output anomalies within the warranty period, a replacement unit will be provided — minimizing unplanned downtime and supporting the long-term integrity of the 3500 protection architecture.
