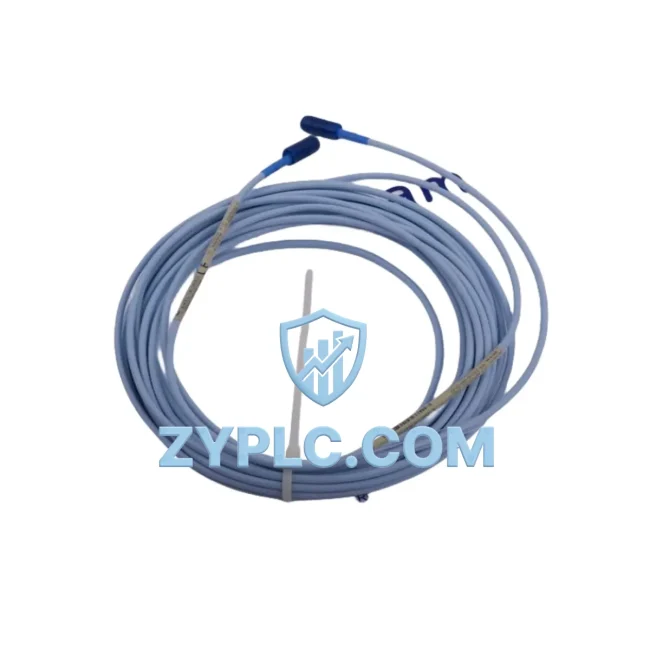

Bently Nevada 330704-00-050-10-02-00 Proximity Probe 3300 XL

Bently Nevada 330704-00-050-10-02-00 Proximity Probe 3300 XL: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 330704-00-050-10-02-00 is a high-precision eddy-current proximity probe engineered for seamless integration within the 3300 XL Series continuous machinery monitoring architecture. Rather than functioning as a standalone sensing element, this probe is designed as a foundational node in a layered industrial automation system — one that spans the signal acquisition layer, the condition monitoring layer, the data communication layer, and ultimately the supervisory control and asset management layer. Understanding its role within this broader architecture is essential for engineers responsible for system design, commissioning, and long-term reliability.

In rotating machinery protection systems deployed across power generation, petrochemical processing, oil and gas compression, and heavy industrial manufacturing, the proximity probe serves as the primary transducer at the machine layer. The 330704-00-050-10-02-00 converts mechanical shaft displacement into a proportional voltage signal, which is then conditioned and interpreted by the companion Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor® Sensor — typically the 330180 series — to produce a calibrated output suitable for the monitoring system’s I/O layer. This three-component probe system (probe, extension cable, Proximitor) must be selected and matched as a complete assembly to ensure system accuracy and interchangeability within the 3300 XL platform.

At the monitoring and I/O layer, the conditioned signal feeds directly into Bently Nevada rack-based monitoring modules such as the 3500/42M Proximitor®/Seismic Monitor or the 3500/40M Proximitor®/Seismic Monitor, which are housed within the 3500 Series Machinery Protection System rack. These modules perform real-time signal processing, apply alert and danger setpoints, and communicate machinery health data upstream via the system’s network layer — typically using Modbus TCP/IP, OPC-DA, or OPC-UA protocols — to distributed control systems (DCS), SCADA platforms, or plant historian servers. The 330704-00-050-10-02-00 probe’s compatibility with the 3300 XL Proximitor ecosystem ensures that its output meets the input specifications of these monitoring modules without requiring signal conditioning adapters or custom calibration offsets.

Architecture Specification Table

Coordinated Control System Design

Deploying the 330704-00-050-10-02-00 within a complete machinery protection architecture requires careful coordination across multiple system layers. At the probe level, the 330704-00-050-10-02-00 is paired with a compatible 3300 XL Extension Cable — such as the 330130-045-00-00 (4.5 m extension) — and a 330180-X1-05 Proximitor® Sensor to form a complete, factory-calibrated transducer assembly. This assembly approach eliminates field calibration uncertainty and ensures that the scale factor and linear range remain within the 3300 XL system’s specified tolerances.

At the rack and I/O layer, the Proximitor output connects to a Bently Nevada 3500/42M or 3500/40M monitor module installed in the 3500 Rack — a modular, backplane-based chassis that supports up to 16 monitor modules per rack. The rack’s 3500/20 Rack Interface Module (RIM) manages communication between the monitoring modules and the plant network, supporting Modbus RTU, Modbus TCP/IP, and OPC-DA/UA data exchange with the DCS or SCADA layer. For plants running redundant control architectures, the 3500/92 Communication Gateway Module provides dual-port Ethernet connectivity, enabling seamless integration with redundant network rings without single points of failure at the communication layer.

At the power layer, the 3500 Rack is supplied by the 3500/15 Power Supply Module, which accepts wide-range AC or DC input and provides regulated internal bus power to all installed modules. Redundant power supply configurations — using dual 3500/15 modules — are strongly recommended for critical machinery protection applications in power plants, LNG terminals, and offshore platforms. At the human-machine interface layer, alarm and trip data from the 3500 rack is typically visualized on operator workstations running Bently Nevada System 1 software, which provides real-time trending, historical data analysis, and predictive maintenance workflows. Integration with third-party HMI platforms such as Wonderware InTouch or Ignition SCADA is supported via OPC-UA, ensuring that machinery health data is accessible across the plant’s unified control network.

Application in Layered Automation Systems

The 330704-00-050-10-02-00 proximity probe finds application across a wide range of process industries where rotating machinery reliability is critical to operational continuity and safety.

Power Generation: In steam turbine and gas turbine protection systems at thermal power plants and combined-cycle facilities, proximity probes monitor shaft radial vibration and axial position at each bearing journal. The 330704-00-050-10-02-00, installed at turbine bearing housings, provides the real-time displacement data that the 3500 Series protection system uses to initiate automatic trip sequences before catastrophic bearing failure occurs. Redundant probe installations — two probes per bearing plane at 90° orientation — are standard practice in accordance with API 670 machinery protection standards.

Petrochemical and Refinery Processing: Centrifugal compressors, reactor charge pumps, and large process fans in refinery and petrochemical environments operate continuously under demanding conditions. The 330704-00-050-10-02-00 supports condition-based maintenance programs by providing continuous shaft orbit data, enabling maintenance engineers to detect rotor instability, oil whirl, and misalignment trends before they escalate to unplanned shutdowns. Integration with the plant DCS via the 3500 rack’s Modbus TCP/IP interface allows machinery health data to be correlated with process variables such as suction pressure, discharge temperature, and flow rate.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment facilities benefit from continuous vibration monitoring using the 3300 XL probe system. The non-contact sensing principle of the 330704-00-050-10-02-00 eliminates the wear and maintenance burden associated with contact-type sensors, making it well-suited for the long service intervals typical of water utility infrastructure.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to high vibration environments and abrasive contamination. The robust construction of the 330704-00-050-10-02-00, combined with its wide operating temperature range, ensures reliable signal output even in the harsh ambient conditions of mineral processing facilities. Contextual Integration with the plant’s SCADA system enables remote monitoring of mill bearing condition from the central control room, reducing the need for manual field inspections in hazardous areas.

Architecture Engineering FAQ

Q1: Is the 330704-00-050-10-02-00 compatible with existing 3500 Series rack installations, and does it require recalibration when replacing an older 3300 XL probe?
The 330704-00-050-10-02-00 is fully compatible with the 3500 Series Machinery Protection System rack when used as part of a complete 3300 XL transducer assembly (probe + extension cable + Proximitor® Sensor). When replacing an existing 3300 XL probe of the same part number and cable length, the scale factor and linear range remain identical, so no recalibration of the 3500 monitor module is required. However, if the replacement involves a different cable length or a mixed assembly from different series, a full system calibration verification per Bently Nevada installation procedures is recommended before returning the machine to service.

Q2: How does the 12-Month Warranty apply in a system context, and what does it cover?
The 12-Month Warranty covers manufacturing defects and functional performance of the 330704-00-050-10-02-00 probe from the date of shipment. In a system context, this means that if the probe fails to meet its specified scale factor, linear range, or temperature performance within the warranty period under normal operating conditions, a replacement unit will be provided. The warranty does not cover damage resulting from improper installation, mechanical impact, chemical contamination, or operation outside the specified environmental limits. For critical applications, maintaining a spare probe assembly in inventory is recommended to minimize machinery downtime during any warranty exchange process.

Q3: What are the key considerations for long-term maintenance and Contextual Integration of the 330704-00-050-10-02-00 within a multi-machine monitoring architecture?
Long-term maintenance of the 330704-00-050-10-02-00 in a multi-machine architecture centers on three areas: periodic gap voltage verification, cable and connector integrity inspection, and system-level calibration audits. Gap voltage should be checked during scheduled outages to confirm that the probe-to-shaft gap remains within the linear range (0.25–2.26 mm). Coaxial cable connections at the Proximitor® Sensor and monitor module should be inspected for corrosion, mechanical damage, and secure seating. For Contextual Integration with DCS or SCADA platforms, verifying that the Modbus register map and OPC tag assignments remain consistent with the 3500 rack configuration after any firmware updates is essential to maintaining data integrity across the automation system hierarchy.
