Bently Nevada 330704-000-070-10-02-CN Industrial Network Interface for 3300 XL Systems

Bently Nevada 330704-000-070-10-02-CN: Industrial Data Link for 3300 XL Smart Factory Systems

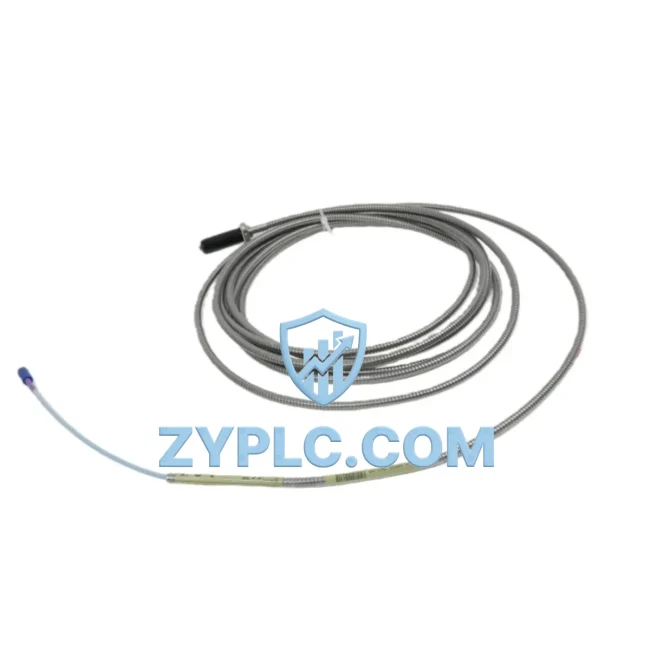

The Bently Nevada 330704-000-070-10-02-CN is a metric-standard eddy-current proximity probe engineered for the 3300 XL Series condition monitoring platform. Designed to deliver continuous, high-resolution vibration and position data from rotating machinery, this probe serves as a critical node in the industrial data chain — bridging field-level mechanical signals with plant-wide SCADA, DCS, and HMI supervisory systems. In smart factory environments where real-time machine health visibility is non-negotiable, the 330704-000-070-10-02-CN provides the signal integrity and protocol compatibility required to sustain uninterrupted data flow across every layer of the automation hierarchy.

With a 7.0 mm tip diameter, 1.0 m cable length, and metric thread configuration, this probe integrates directly with the Bently Nevada 3300 XL proximitor/driver system. Its output signal — a linear DC voltage proportional to the gap between probe tip and target — is conditioned by the paired 3300 XL proximitor module before being transmitted upstream to vibration monitoring controllers, safety instrumentation systems, and process historians. This analog-to-digital handoff is the foundation of the plant’s predictive maintenance data architecture.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 330704-000-070-10-02-CN operates as the signal origin point in a layered industrial network. The probe is mounted radially or axially on a rotating shaft, continuously measuring the air gap between its tip and the target surface. This raw analog signal is routed through a dedicated coaxial extension cable to the Bently Nevada 3300 XL Proximitor (e.g., 330180-91-05), which conditions and linearizes the output into a calibrated DC voltage signal.

That conditioned signal feeds directly into a Bently Nevada 3500/42M Proximitor I/O Module housed within the 3500 Series machinery protection rack. The 3500 rack processes multiple channel inputs simultaneously, applying alarm setpoints for radial vibration, axial thrust, and differential expansion. When a threshold is breached, the rack triggers relay outputs to the plant’s Emergency Shutdown System (ESD) or Safety Instrumented System (SIS), while simultaneously transmitting structured data upstream via Modbus TCP to the DCS controller — such as a GE Mark VIe or Emerson DeltaV — for process integration.

At the SCADA layer, platforms such as Ignition by Inductive Automation or Wonderware System Platform receive the vibration trend data in real time, populating historian databases and operator dashboards. Maintenance engineers monitoring the HMI panel — for example, a Siemens SIMATIC TP1200 or Rockwell PanelView Plus 7 — can view shaft orbit plots, trend graphs, and alarm logs without leaving the control room. Remote diagnostic access is enabled through the plant’s industrial Ethernet backbone, allowing condition monitoring specialists to interrogate the 3500 rack’s data via System 1 Evolution software, Bently Nevada’s dedicated asset performance management platform.

For facilities integrating the 330704-000-070-10-02-CN into a broader IIoT architecture, edge gateways such as the Moxa MGate MB3480 or HMS Anybus X-gateway can bridge the Modbus RTU output from legacy monitoring racks to MQTT or OPC-UA streams, enabling cloud-based analytics and AI-driven predictive maintenance workflows. This connectivity path ensures that vibration data captured at the probe tip ultimately reaches enterprise asset management systems, closing the loop between field instrumentation and business intelligence.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery monitoring is data isolation — where vibration signals remain trapped within standalone protection systems, invisible to the broader plant automation network. The 330704-000-070-10-02-CN, when deployed within the Bently Nevada 3300 XL and 3500 Series ecosystem, directly addresses this problem by providing a structured, protocol-compatible signal path from the machine to the enterprise.

Plants operating mixed-protocol environments — where legacy 4–20 mA instrumentation coexists with modern PROFIBUS DP or FOUNDATION Fieldbus networks — benefit from the 3500 rack’s multi-protocol I/O architecture, which normalizes signals from the 330704-000-070-10-02-CN alongside process transmitters, flow meters, and temperature sensors into a unified data stream. This eliminates the need for separate condition monitoring islands and enables true cross-system alarm correlation: a vibration spike on a compressor can be automatically cross-referenced with a simultaneous process pressure deviation, triggering a coordinated response across the DCS, ESD, and SCADA layers.

Remote monitoring capability is equally critical for facilities with unmanned substations or offshore platforms. The 3500 rack’s Ethernet communication module enables secure remote access to live vibration data, alarm status, and configuration parameters — reducing the need for on-site inspection and enabling predictive maintenance scheduling based on actual machine condition rather than fixed time intervals. Productline transparency is further enhanced through integration with MES and ERP systems, where maintenance work orders can be automatically generated when vibration thresholds indicate impending bearing or seal failure.

Every 330704-000-070-10-02-CN unit supplied by ZYPLC undergoes pre-shipment functional verification, including tip sensitivity calibration and cable continuity testing, ensuring that the probe performs to Bently Nevada factory specifications from day one of installation. Combined with a 12-month warranty and in-stock availability for fast global dispatch, this probe represents a reliable, low-risk component choice for both new installations and emergency replacement scenarios.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330704-000-070-10-02-CN support for SCADA integration?
The probe itself outputs an analog DC voltage signal, which is protocol-agnostic at the field level. Protocol conversion occurs at the 3500 Series monitoring rack, which supports Modbus RTU, Modbus TCP/IP, and — with appropriate I/O modules — PROFIBUS DP and FOUNDATION Fieldbus. This allows the vibration data to be consumed by any SCADA or DCS platform with standard industrial protocol support, including Ignition, Wonderware, GE Proficy, and Emerson DeltaV.

Q2: How is network stability maintained when integrating this probe into a high-vibration industrial environment?
The 330704-000-070-10-02-CN uses a shielded coaxial cable assembly rated for industrial environments, minimizing electromagnetic interference from variable frequency drives, motor starters, and high-current bus bars. The 3300 XL proximitor provides additional signal conditioning and noise rejection, ensuring stable, drift-free output even in electrically noisy plant environments. For long cable runs, the extension cable should be routed away from power conductors and grounded at a single point to prevent ground loops.

Q3: Can this probe be used to expand an existing 3500 Series monitoring system without reconfiguring the entire rack?
Yes. The 330704-000-070-10-02-CN is fully compatible with existing 3500/42M and 3500/40M Proximitor I/O modules. Adding a new probe channel requires only physical installation, cable routing to the rack, and channel configuration within the 3500 Rack Configuration Software — no changes to other channels or communication settings are required. This makes it straightforward to expand monitoring coverage on additional machine trains without system downtime.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
The 12-month warranty covers manufacturing defects, calibration drift beyond factory tolerance, and cable assembly failures under normal operating conditions. Prior to shipment, each 330704-000-070-10-02-CN unit is tested for tip sensitivity (mV/mil and mV/mm output linearity), cable continuity, and connector integrity. Test records are available upon request. Warranty claims are processed directly through ZYPLC, with replacement units dispatched from in-stock inventory to minimize machine downtime.
