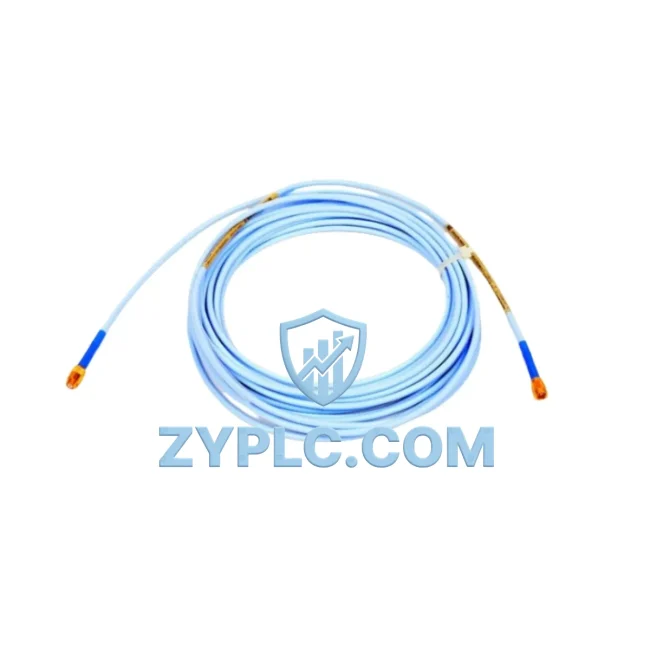

Bently Nevada 330730-080-11-05 Industrial Network Interface for 3300 XL Systems

Bently Nevada 330730-080-11-05: Industrial Data Link for 3300 XL Vibration Monitoring Systems

The Bently Nevada 330730-080-11-05 is an 11mm extension cable engineered for the 3300 XL series vibration monitoring platform — one of the most widely deployed condition monitoring architectures in rotating machinery protection. In modern smart factory environments, this extension cable serves as a critical physical-layer link in the signal acquisition chain, connecting proximity probes to the 3300 XL monitor rack and enabling continuous, high-fidelity vibration data to flow from field sensors through to SCADA and DCS platforms for real-time analysis and alarm management.

As industrial sites move toward fully integrated predictive maintenance architectures, the integrity of every cable segment in the measurement loop becomes non-negotiable. The 330730-080-11-05 is factory-tested to ensure signal continuity, impedance matching, and mechanical durability under the demanding conditions of turbine halls, compressor stations, and rotating equipment bays. Its 11mm diameter and standardized connector interface ensure direct compatibility with the Bently Nevada 330180 proximity probe and 330130 Proximitor sensor — forming a complete eddy-current measurement chain that feeds the 3300 XL monitor with clean, calibrated displacement signals.

Network Communication Table

Connected Automation Data Flow

In a typical rotating equipment protection architecture, the 330730-080-11-05 extension cable bridges the gap between the Bently Nevada 330180 proximity probe — mounted at the bearing journal — and the 330130 Proximitor sensor, which conditions the raw eddy-current signal into a calibrated DC voltage proportional to shaft displacement. This conditioned signal is then routed into the 3300 XL monitor rack, where individual monitor modules — such as the 3300/16 dual-channel vibration monitor or the 3300/55 position monitor — process the data in real time.

From the monitor rack, processed vibration vectors, gap voltages, and alarm states are transmitted upstream via the rack’s communication backplane to the plant’s DCS or SCADA layer. In many installations, this integration is achieved through the Bently Nevada 3500/92 communication gateway module, which supports Modbus RTU/TCP, enabling seamless data exchange with distributed control systems such as Emerson DeltaV, Honeywell Experion, or ABB 800xA. Operators monitoring the plant from a central control room can view real-time vibration trends, Bode plots, and orbit displays through System 1 Condition Monitoring Software, which aggregates data from multiple 3300 XL and 3500 racks across the facility.

For edge-level data processing and remote diagnostics, some facilities integrate the 3300 XL network with an industrial edge gateway — such as a Moxa MGate or Advantech ADAM series — to bridge legacy serial protocols to modern Ethernet/IP or MQTT-based IIoT platforms. This allows vibration data from the 330730-080-11-05 measurement chain to be streamed to cloud-based analytics platforms for AI-driven predictive maintenance, without disrupting the real-time protection logic of the monitor rack. Complementary field devices in this data flow include Bently Nevada 330905 I/O modules for signal conditioning, and 3300 XL power supply modules that ensure uninterrupted operation of the entire monitoring network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery protection is data isolation — where vibration data collected by the 3300 XL system remains siloed within the condition monitoring network and cannot be accessed by the plant’s broader SCADA, MES, or ERP systems. The 330730-080-11-05 extension cable, as part of a fully integrated Bently Nevada measurement chain, is the foundation for eliminating this isolation.

When the physical signal path from probe to monitor is compromised — by a damaged extension cable, incorrect impedance, or connector degradation — the entire data chain fails silently. Operators may see flatlined vibration readings or spurious alarms, leading to either missed fault detection or unnecessary shutdowns. By maintaining a verified, in-stock supply of 330730-080-11-05 cables, maintenance teams can execute rapid cable replacements during planned outages, restoring full signal integrity and ensuring that the 3300 XL monitor continues to feed accurate data to the SCADA layer.

Beyond cable integrity, the broader challenge of protocol unification is addressed at the monitor rack level. The 3300 XL system’s support for standard analog outputs (4–20mA) and digital communication via Modbus allows it to interface with virtually any modern DCS or SCADA platform, breaking down the barriers between the condition monitoring island and the plant control network. This enables production line transparency — where vibration trends, bearing temperatures, and shaft position data are visible alongside process variables such as flow, pressure, and temperature in a unified operator display. Remote monitoring and diagnostics become possible, allowing off-site engineers to review machinery health data, acknowledge alarms, and adjust alert thresholds without being physically present at the plant.

For facilities planning system expansion — adding new measurement points, upgrading from 3300 XL to the 3500 series, or integrating additional sensor types — maintaining a standardized cable inventory based on the 330730-080-11-05 specification ensures backward compatibility and minimizes re-engineering costs during phased upgrades.

Industrial Connectivity FAQ

Q1: Is the Bently Nevada 330730-080-11-05 compatible with both the 3300 XL and 3500 series monitor racks?
The 330730-080-11-05 is natively designed for the 3300 XL platform. Compatibility with the 3500 series depends on the specific monitor module and may require an adapter or verification of connector specifications. We recommend confirming the target rack model before ordering. Our technical team can assist with cross-reference verification.

Q2: What communication protocols does the 3300 XL system support for SCADA integration?
The 3300 XL monitor rack supports analog 4–20mA outputs and relay contacts for direct DCS integration. Digital communication — including Modbus RTU and Modbus TCP — is available via the 3500/92 communication gateway module. OPC-DA/UA connectivity is supported through System 1 Condition Monitoring Software, enabling integration with most modern SCADA and historian platforms.

Q3: How does a faulty extension cable affect network stability and data transmission?
A degraded or incorrectly specified extension cable introduces impedance mismatches that corrupt the eddy-current signal, resulting in inaccurate gap voltage readings at the Proximitor output. This can cause false alarms, missed fault detection, or complete signal loss at the monitor rack — all of which propagate as bad data into the SCADA system. Using a verified OEM cable such as the 330730-080-11-05 ensures signal integrity across the full measurement chain.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 330730-080-11-05 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failure. Prior to shipment, each cable undergoes continuity testing and visual inspection to verify connector integrity and cable sheath condition. Units are shipped via DHL or FedEx with full tracking, and our team provides documentation support including test reports and certificates of conformance upon request.
