Bently Nevada 330780-91-05 Proximitor for 3300

Bently Nevada 330780-91-05 Proximitor for 3300

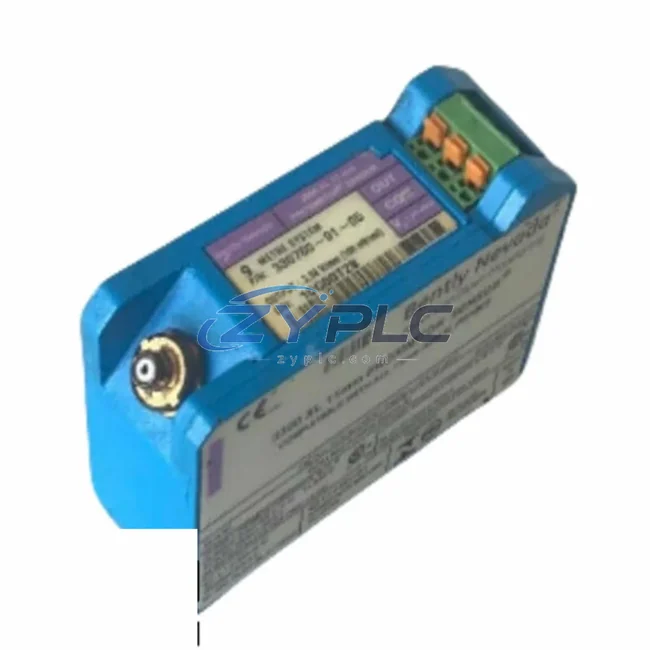

The Bently Nevada 330780-91-05 Proximitor Sensor is a precision signal conditioning module engineered for seamless integration within the 3300 Series vibration monitoring architecture. Unlike standalone sensing devices, the 330780-91-05 functions as a critical node in a layered control system — converting raw eddy-current proximity probe signals into calibrated voltage outputs that feed directly into the 3300/16 Monitor or 3300/20 Monitor rack-mounted modules. Its role spans the boundary between the physical measurement layer and the control execution layer, making it indispensable for any facility that demands continuous, high-fidelity machinery protection.

In modern industrial automation environments — from rotating equipment in petrochemical refineries to turbine trains in power generation plants — the integrity of the signal chain is paramount. The 330780-91-05 ensures that vibration, position, and speed data captured by the 330104-00-06-10-02-00 proximity probe is accurately conditioned before transmission to the monitoring rack. This eliminates signal degradation across long cable runs and guarantees that the 3300 Series rack receives clean, consistent data for alarm and trip decision logic.

Product Specification Table

System Compatibility Notes

The 330780-91-05 does not operate in isolation — it is a functional element within a precisely coordinated machinery protection architecture. At the sensing layer, it works in tandem with the 330104-00-06-10-02-00 proximity probe, which is mounted radially or axially against the rotating shaft. The Proximitor converts the probe’s impedance variation into a DC voltage signal proportional to the gap distance, feeding this output directly into the 3300/16 Monitor housed within the 3300 Series rack.

Within the rack, the 3300/16 Monitor processes the conditioned signal alongside inputs from other channels — including those sourced from 330180-91-05 Proximitor units monitoring orthogonal shaft planes — to build a complete picture of rotor dynamic behavior. The rack’s 3300/05 Power Supply Module provides the regulated -24 VDC required by the Proximitor, ensuring stable operation even under fluctuating plant power conditions. For facilities running redundant protection schemes, a secondary 3300/05 power supply can be configured in parallel, with the 3300 Series rack backplane managing automatic switchover.

At the network and data layer, the 3300 Series rack communicates alarm and trip status to the plant DCS or safety PLC via hardwired relay outputs or optional Modbus RTU communication cards. This allows the 330780-91-05’s conditioned signal to ultimately influence control decisions at the DCS level — triggering turbine rundown sequences, activating lube oil system responses, or initiating controlled shutdowns through the plant’s safety instrumented system. HMI workstations running System 1 Evolution software display real-time trend data, orbit plots, and alarm histories derived from the Proximitor’s output, giving maintenance engineers the system integration needed for predictive maintenance decisions.

For facilities managing large rotating equipment fleets, the 330780-91-05 is often deployed alongside the 3300/55 Keyphasor Module, which provides once-per-revolution reference signals essential for phase analysis and balancing operations. The combination of Proximitor signal conditioning, Keyphasor synchronization, and rack-level processing creates a complete machinery health monitoring loop that supports both real-time protection and long-term reliability engineering.

Industrial Application Notes

In power generation facilities, the 330780-91-05 is typically installed on steam turbine bearing housings, monitoring shaft radial vibration and axial position simultaneously across multiple measurement planes. The conditioned outputs feed the 3300 Series protection rack, which interfaces with the turbine control system to enforce vibration trip limits and protect against catastrophic bearing failure. This architecture is equally applicable to gas turbines, where rapid acceleration and deceleration cycles demand millisecond-level response from the protection system.

In petrochemical and refinery environments, the 330780-91-05 supports continuous monitoring of centrifugal compressors, pumps, and expanders — equipment where unplanned downtime carries significant production and safety consequences. The Proximitor’s ability to deliver stable, calibrated output across wide temperature ranges makes it suitable for both ambient-temperature compressor halls and high-temperature process areas. Maintenance teams benefit from the module’s plug-and-replace design, which allows field swap-out without recalibration of the monitoring rack, minimizing mean time to repair.

In water treatment and municipal utility plants, the 330780-91-05 monitors large vertical pump motors and blower units, where shaft position monitoring is critical for detecting impeller wear and bearing degradation before failure. The 3300 Series architecture’s modular design allows plant engineers to expand monitoring coverage incrementally — adding Proximitor-probe pairs to additional machines without replacing the central monitoring rack, protecting capital investment while extending system capability.

Mining and mineral processing operations deploy the 330780-91-05 on ball mills, SAG mills, and crusher drives, where high vibration environments and dusty conditions demand robust, field-proven sensing solutions. The Proximitor’s sealed construction and compatibility with armored extension cables ensures reliable signal transmission from the measurement point to the monitoring rack, regardless of the harshness of the installation environment. Across all these applications, the warranty terms confirmed during quotation and pre-shipment testing protocol at ZYPLC ensures that every 330780-91-05 unit arrives ready for immediate installation and commissioning.

Product Compatibility FAQ

Q1: Is the 330780-91-05 compatible with all 3300 Series monitor modules?
The 330780-91-05 is designed for use within the Bently Nevada 3300 Series architecture and is compatible with standard 3300/16 and 3300/20 monitor modules that accept -18 VDC Proximitor output signals. Compatibility with specific rack configurations should be verified against the monitor module’s input specification. ZYPLC’s technical team can assist with system-level compatibility confirmation prior to order.

Q2: Can the 330780-91-05 be installed in hazardous area locations, and what are the cable routing requirements?
The 330780-91-05 is a field-mounted device and must be installed in accordance with the hazardous area classification of the installation site. For Zone 1 or Division 1 locations, appropriate intrinsically safe barriers or Zener barriers must be installed between the Proximitor and the monitoring rack. Cable routing should follow Bently Nevada’s recommended practices for shielded, twisted-pair extension cables to minimize electromagnetic interference and maintain signal integrity over the full cable run length.

Q3: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
Every 330780-91-05 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm output signal accuracy, supply current draw, and probe system compatibility. Units are shipped with test documentation upon request. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination to minimize system downtime.
