Bently Nevada 330800-16-00-039-03-02 ProxPac XL Transducer

Bently Nevada 330800-16-00-039-03-02 ProxPac XL Transducer for 3300 Series Automation

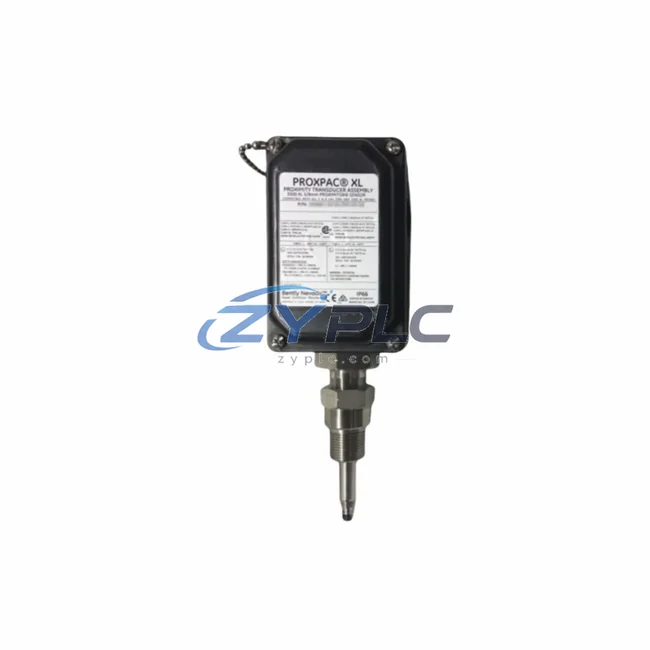

The Bently Nevada 330800-16-00-039-03-02 is a high-precision ProxPac XL proximity transducer assembly engineered for continuous, maintenance-focused vibration and position monitoring in demanding industrial environments. Designed as a complete plug-and-play assembly within the Bently Nevada 3300 Series ecosystem, this unit integrates the eddy-current sensing probe, extension cable, and proximitor into a single optimized package — eliminating unnecessary signal conversion losses and reducing overall system power draw. For plant engineers focused on maximizing equipment uptime while minimizing unplanned downtime, the 330800-16-00-039-03-02 delivers measurable efficiency gains across rotating machinery monitoring applications.

Product Specification Table

System Compatibility and Application

In a fully industrial Automation architecture, the 330800-16-00-039-03-02 ProxPac XL functions as the primary sensing node for shaft displacement and vibration data acquisition. This raw signal feeds directly into the Bently Nevada 3300/16-24-01-02-00-00-00 proximitor, which conditions the output into a calibrated voltage signal readable by the plant’s monitoring infrastructure. From there, the data is routed to a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module, where threshold alarms and danger setpoints are configured to prevent energy-wasting runaway conditions in rotating equipment.

For plants running integrated DCS or PLC-based control loops, the transducer signal chain integrates cleanly with GE Fanuc Series 90-30 PLC analog input modules or Rockwell Automation ControlLogix 1756-IF16 high-density analog I/O cards, enabling closed-loop feedback that adjusts drive output in real time. When paired with a Bently Nevada 3500/22M Transient Data Interface, the system captures startup and coastdown transient data — critical for identifying inefficient operating speed ranges that consume excess power without productive output.

On the drive side, variable frequency drives such as the ABB ACS880 series or Siemens SINAMICS G120 receive corrective speed commands derived from the vibration feedback loop, trimming motor RPM to the most energy-efficient operating point. This closed-loop architecture — transducer → monitor rack → PLC → VFD — is the backbone of modern energy-optimized motor control strategy. The Bently Nevada 3300 XL 8mm Proximity Transducer System (of which the 330800-16-00-039-03-02 is a key assembly variant) is specifically calibrated for this type of high-frequency feedback integration.

For power quality and operating load visibility, the system can be complemented by a Schneider Electric PowerLogic ION7650 power meter or equivalent condition monitoring module, providing per-machine kWh tracking that correlates directly with vibration health data. Communication between monitoring nodes typically leverages Modbus RTU or FOUNDATION Fieldbus H1 protocols, both natively supported by the 3500 Series rack infrastructure, ensuring low-latency data delivery to the plant historian and SCADA layer without additional protocol conversion overhead.

Maintenance and Replacement Notes

In continuous-process industries — refinery compressor trains, power plant steam turbines, and large-scale pump stations — undetected shaft vibration is one of the most significant hidden energy costs. A rotor running with even 25 µm of excess radial displacement operates against increased bearing friction, elevated seal leakage, and asymmetric aerodynamic loading, all of which translate directly into measurable increases in motor input power with no corresponding gain in process output.

The Bently Nevada 330800-16-00-039-03-02 addresses this at the source. By providing continuous, high-resolution proximity data with sub-micron sensitivity, it enables the plant’s condition monitoring system to detect developing imbalance, misalignment, or bearing wear weeks before these faults escalate into forced shutdowns. Maintenance teams using System 1 Condition Monitoring Software can trend the gap voltage output of this transducer over time, correlating changes with process load data to build accurate remaining-useful-life models for each monitored machine.

From a production line rhythm perspective, predictive maintenance scheduling enabled by this transducer allows maintenance windows to be aligned with planned production changeovers rather than forced by emergency failures. This directly improves Overall Equipment Effectiveness (OEE) by reducing unplanned downtime — which, in energy terms, means eliminating the high-energy restart cycles that follow emergency shutdowns. Cold-starting a large centrifugal compressor, for example, can consume 3–5× its steady-state power draw during the acceleration phase; avoiding even one such event per quarter delivers significant operational stability at the facility level.

All units of the 330800-16-00-039-03-02 available through ZYPLC are sourced from verified supply channels, undergo functional output testing prior to shipment, and are backed by a warranty terms confirmed during quotation. Stock is maintained for prompt dispatch, supporting both planned maintenance schedules and urgent replacement requirements.

Product Sourcing FAQ

Q1: How does the 330800-16-00-039-03-02 contribute to reducing plant operating load?
By providing continuous, accurate shaft displacement data, this transducer enables early detection of mechanical inefficiencies — imbalance, misalignment, bearing degradation — that silently increase motor load. Correcting these faults based on transducer data before they worsen keeps machines operating at their designed efficiency point, reducing unnecessary power draw across the monitored asset fleet.

Q2: Is the 330800-16-00-039-03-02 compatible with existing Bently Nevada 3500 Series monitoring racks?
The ProxPac XL assembly is natively designed for the Bently Nevada 3300 Series proximitor ecosystem. Integration with 3500 Series racks is achievable using the appropriate Bently Nevada interface modules. For direct compatibility confirmation with your specific rack configuration, ZYPLC technical support can assist prior to purchase.

Q3: What is the recommended replacement interval, and how does predictive data from this transducer affect that schedule?
As a non-contact eddy-current device, the 330800-16-00-039-03-02 has no mechanical wear components. Replacement is typically driven by cable integrity, connector condition, or calibration drift rather than a fixed interval. Trending the DC gap voltage output over time via System 1 software allows maintenance engineers to identify calibration drift early and schedule replacement during planned outages rather than emergency windows.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
