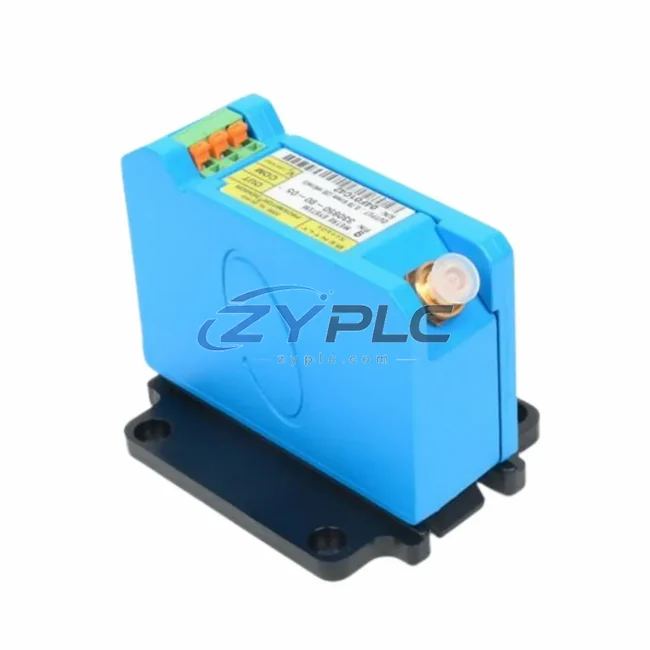

The Bently Nevada 330850-50-00 is a precision eddy-current Proximitor Sensor engineered for seamless integration within the 3300 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone measurement device, this sensor operates as a critical node within a layered industrial control system — interfacing directly with the control layer, signal conditioning layer, I/O acquisition layer, and supervisory HMI layer to deliver continuous, high-fidelity shaft displacement and vibration data across rotating machinery assets.

In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and heavy manufacturing — the integrity of the vibration monitoring layer is inseparable from the reliability of the broader control architecture. The 330850-50-00 is designed with this system-level philosophy in mind, providing stable signal output that feeds directly into the 3300 Series monitor modules, enabling real-time protection logic, alarm management, and predictive maintenance workflows without signal degradation or architectural bottlenecks.

Product Specification Table

System Compatibility Notes

The 330850-50-00 achieves its full architectural value when deployed as part of a coordinated Bently Nevada 3300 Series system. At the monitor layer, the sensor signal is received and processed by the Bently Nevada 3300/16-02-01-01-00-00 dual-channel monitor module, which applies gap, 1X, and 2X vibration alarm thresholds in real time. The monitor module communicates upstream to the Bently Nevada 3500/22M transient data interface or directly to a DCS via the 3500/92 Communication Gateway, enabling Modbus TCP or PROFIBUS DP integration with plant-wide SCADA systems.

At the power layer, the Bently Nevada 3300/05 Power Supply provides regulated -24 VDC to the proximitor circuit, ensuring signal stability even under fluctuating plant power conditions. For redundant architectures, dual power supply configurations using the 3500/15 Power Supply Module are recommended to eliminate single points of failure at the power distribution layer.

The sensor’s analog output integrates with the Bently Nevada 3300/55 I/O Module for multi-channel signal aggregation, while the 3300 Series Rack backplane provides the physical and electrical backbone for all monitor, I/O, and communication modules. In systems requiring shaft absolute vibration measurement, the 330850-50-00 is paired with a Bently Nevada 330400 Series velocity transducer to deliver combined relative and absolute shaft motion data — a configuration commonly required in API 670-compliant turbine protection systems.

At the HMI and supervisory layer, vibration data from the 330850-50-00 is visualized through System 1 Evolution software, Bently Nevada’s condition monitoring and asset management platform, which aggregates trend data, alarm histories, and diagnostic waveforms across all monitored assets. For field commissioning and loop verification, the Bently Nevada TK-3 Proximitor Tester is used to validate sensor gap voltage, sensitivity, and cable continuity prior to system handover.

Industrial Application Notes

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the 330850-50-00 is deployed at bearing proximity measurement points to monitor shaft radial displacement, providing the primary input signal for turbine trip logic and runup/rundown analysis. Its compatibility with API 670 machinery protection standards makes it the preferred sensor choice for OEM turbine packages and retrofit protection upgrades.

In petrochemical and refinery environments, the sensor monitors centrifugal compressors, pumps, and expanders operating in hazardous area classifications. Its robust construction and wide operating temperature range ensure reliable signal output in high-ambient-temperature process areas, while its integration with the 3300 Series monitor architecture enables continuous online monitoring without process interruption.

In mining and metallurgical applications, the 330850-50-00 is used on large rotating mills, crushers, and conveyor drive systems where shaft displacement monitoring is critical for predictive maintenance scheduling. The sensor’s long-term signal stability reduces false alarm rates and supports condition-based maintenance programs that minimize unplanned downtime.

In water treatment and municipal infrastructure systems, the sensor monitors large pump stations and blower units, providing early warning of bearing wear and rotor imbalance conditions. Its warranty terms confirmed during quotation and global spare parts availability through ZYPLC ensure that replacement cycles are managed efficiently without extended lead times.

Product Compatibility FAQ

Q1: Is the Bently Nevada 330850-50-00 directly compatible with the 3500 Series monitor architecture?
The 330850-50-00 is natively designed for the 3300 Series monitor architecture. Integration with the 3500 Series is achievable through appropriate signal conditioning modules and the 3500/92 Communication Gateway, which translates the analog proximitor output into the digital communication protocols used by the 3500 Series rack. For direct 3500 Series sensor compatibility, the 330180 or 330730 Series probes are the recommended alternatives. ZYPLC can advise on the correct interface configuration for your specific architecture.

Q2: What installation and commissioning considerations apply when deploying the 330850-50-00 in a redundant protection architecture?
In redundant architectures, two 330850-50-00 sensors are typically installed at 90° orientation (X and Y planes) at each bearing measurement point, feeding independent monitor channels within the 3300 Series rack. Cable routing must maintain separation between sensor cables and high-voltage power conductors to prevent electromagnetic interference. Gap voltage should be set to -10.0 VDC ±0.5 VDC at the nominal measurement position, verified using the TK-3 Proximitor Tester. All connections should be verified against the system loop diagram prior to energization, and alarm setpoints should be configured in accordance with the machinery OEM’s vibration limits and API 670 requirements.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
The warranty terms confirmed during quotation covers manufacturing defects, functional performance deviations, and premature component failure under normal operating conditions. It does not cover damage resulting from improper installation, electrical overstress, or operation outside specified environmental limits. ZYPLC maintains dedicated inventory of Bently Nevada 3300 Series components — including the 330850-50-00 and associated extension cables, proximitor housings, and monitor modules — to support both planned maintenance schedules and emergency replacement requirements. For long-term supply agreements or system-level spare parts packages, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
