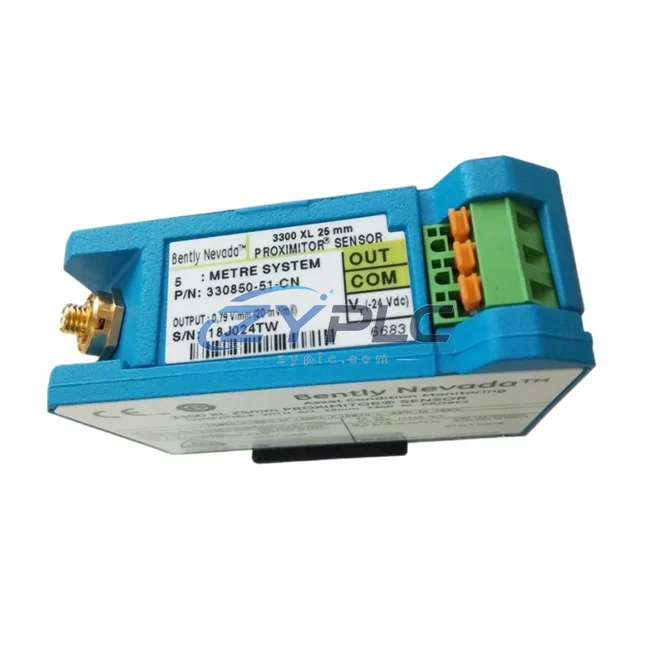

Bently Nevada 330850-51-05 Proximitor Sensor for 3300

Bently Nevada 330850-51-05 Proximitor Sensor for 3300

The Bently Nevada 330850-51-05 Proximitor Sensor is a precision-engineered proximity transducer designed for seamless integration within the Bently Nevada 3300 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone measurement device, this sensor operates as a critical node within a layered industrial control system — interfacing directly with the 3300 Series monitor rack, signal conditioning modules, and plant-level DCS or SCADA platforms to deliver continuous, high-fidelity shaft vibration and position data across the full control hierarchy.

In modern rotating machinery protection systems, the control architecture spans multiple functional layers: the field sensing layer, the signal conditioning and monitoring layer, the control and logic layer, the communication and network layer, and the supervisory and HMI layer. The 330850-51-05 anchors the field sensing layer, converting mechanical shaft displacement into a calibrated DC voltage signal that feeds directly into the 3300 Series monitor modules — such as the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor — enabling real-time alarm and trip logic execution at the rack level.

Product Specification Table

System Compatibility Notes

The 330850-51-05 achieves its full value only when considered within the broader 3300 Series system architecture. At the rack level, the sensor signal is received and conditioned by the 3300/16 Dual Vibration Monitor or 3300/20 Radial Vibration Monitor, which apply configurable alarm and danger setpoints. These monitors are housed within the 3300 Series Rack — a standardized 19-inch DIN-rail-compatible enclosure that also accommodates the 3300/55 Power Supply Module, providing regulated –24 VDC to all connected Proximitor sensors and drivers simultaneously, ensuring electrical consistency across the monitoring loop.

For axial position monitoring applications — such as thrust bearing surveillance on steam turbines or centrifugal compressors — the 330850-51-05 is paired with the 3300/25 Thrust Position Monitor, which processes the DC gap voltage and triggers protective relay outputs when shaft migration exceeds engineering limits. In redundant protection architectures, dual-sensor configurations are supported, with each sensor feeding an independent monitor channel to eliminate single-point failure risk at the field sensing layer.

Signal routing from the 3300 monitor rack to the plant control layer is accomplished via 4–20 mA analog outputs or dry contact relay outputs, interfacing with DCS platforms such as the Emerson DeltaV, Honeywell Experion, or ABB System 800xA. For facilities utilizing the System 1 Condition Monitoring Software (Bently Nevada’s plant-wide machinery health platform), the 3300 rack communicates over Ethernet or serial Modbus, enabling the 330850-51-05’s vibration data to be trended, alarmed, and analyzed at the supervisory layer without additional signal conversion hardware.

At the field wiring layer, the 330130 Series Extension Cable and 330180 Armored Extension Cable provide the physical link between the 330850-51-05 sensor tip and the proximitor driver/oscillator, maintaining signal integrity across distances up to 9 meters in standard configurations. Proper cable routing, shielding, and grounding — in accordance with Bently Nevada installation guidelines — are essential to suppress electromagnetic interference from adjacent VFDs, motor starters, and high-current bus bars within the control cabinet environment.

For facilities managing multiple machine trains, the 330850-51-05 integrates into a standardized spare parts and maintenance strategy alongside the 330100-90-05 Proximity Probe, 330130-080-00-00 Extension Cable, and 330180-X0-05 Armored Cable, enabling a unified inventory approach that reduces mean time to repair (MTTR) and supports predictive maintenance scheduling across the plant asset base.

Industrial Application Notes

The 330850-51-05 Proximitor Sensor is deployed across a wide range of heavy industrial and process-critical applications where continuous shaft monitoring is a regulatory or operational requirement.

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the sensor provides the primary vibration signal for API 670-compliant machinery protection systems, triggering automatic unit trip before bearing damage propagates to catastrophic failure. In petrochemical and refinery environments, it monitors centrifugal compressors and pumps in hazardous area classifications, with ATEX-rated configurations available for Zone 1 and Zone 2 installations.

In water and wastewater treatment plants, the sensor supports condition monitoring of large vertical turbine pumps and blower trains, where unplanned downtime carries significant operational and regulatory consequences. In mining and mineral processing operations, it is applied to SAG mill drives, crusher motors, and slurry pump systems — environments characterized by high vibration backgrounds and demanding duty cycles that require robust, field-proven sensing technology.

For packaging and discrete manufacturing lines, the 330850-51-05 supports high-speed spindle and conveyor drive monitoring, integrating with plant-level SCADA systems to provide real-time machine health dashboards accessible to maintenance engineers and operations supervisors. In metallurgical and steel mill applications, it monitors rolling mill drives and continuous caster motors, where thermal cycling and mechanical shock loads place extreme demands on sensor mechanical integrity and signal stability.

Product Compatibility FAQ

Q1: Is the 330850-51-05 directly compatible with all 3300 Series monitor modules, and does it require any additional signal conditioning for DCS integration?
The 330850-51-05 is calibrated to the standard Bently Nevada 200 mV/mil sensitivity curve and is directly compatible with all 3300 Series monitor modules that accept standard proximity transducer inputs, including the 3300/16, 3300/20, and 3300/25. No additional signal conditioning is required at the sensor-to-monitor interface. For DCS integration, the 3300 monitor’s built-in 4–20 mA transmitter output or relay contacts provide the standard interface to plant control systems, supporting system integration with existing automation infrastructure without hardware modification.

Q2: Can the 330850-51-05 be used in a redundant monitoring architecture, and what is the recommended installation practice for dual-sensor configurations?
Yes. Redundant configurations are fully supported within the 3300 Series architecture. The recommended practice is to install two 330850-51-05 sensors at 90° apart (X–Y orientation) on the bearing housing, each connected to an independent monitor channel within the same 3300 rack. This eliminates single-point failure at the field sensing layer and satisfies API 670 redundancy requirements for critical machinery. Cable routing for each sensor should be physically separated to prevent common-mode failure from cable damage or EMI coupling.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty support or replacement during a system outage?
The warranty terms confirmed during quotation covers manufacturing defects, calibration drift beyond published specifications, and electrical failure under normal operating conditions as defined in the Bently Nevada 3300 Series installation and operation manual. In the event of a warranty claim during a system outage, priority replacement units are dispatched to minimize plant downtime. All units supplied are tested and verified against Bently Nevada factory calibration standards prior to shipment, ensuring drop-in compatibility with existing 3300 Series rack installations without field recalibration.
