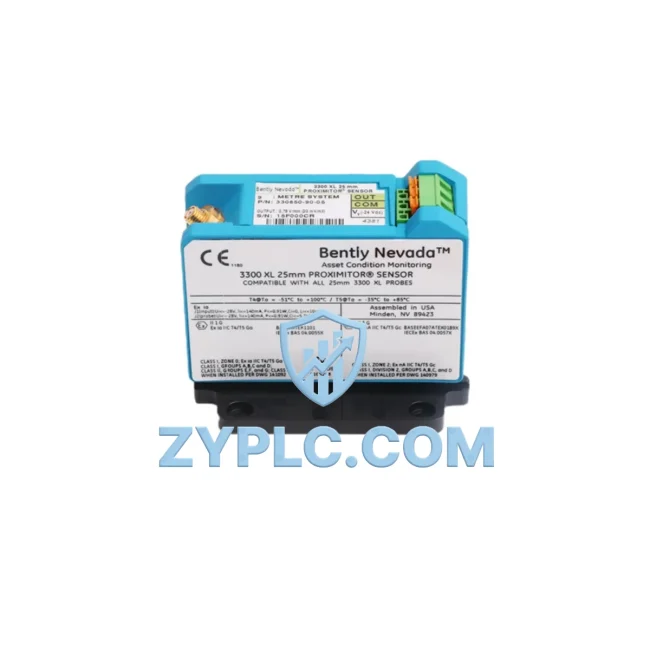

The Bently Nevada 330850-90-05 is a high-performance Proximitor Sensor from the renowned 3300 Series, engineered to deliver continuous, non-contact shaft displacement measurement in rotating machinery environments. By providing real-time vibration and position data directly to the machinery protection system, this sensor plays a critical role in reducing unplanned downtime, optimizing equipment utilization, and cutting unplanned downtime risk across industrial production lines.
In modern smart factories, unplanned downtime is rarely caused by a single component failure — it accumulates through undetected imbalance, misalignment, bearing wear, and inefficient motor loading. The 330850-90-05 addresses this at the source. Its eddy-current sensing technology delivers micron-level shaft displacement readings with exceptional linearity and temperature stability, enabling control systems to respond to mechanical deviations before they escalate into costly failures or energy-draining overloads.
Product Specification Table
| Parameter |
Specification |
| SKU |
330850-90-05 |
| Brand / Series |
Bently Nevada / 3300 Series |
| Sensor Type |
Eddy-Current Proximitor (Non-Contact) |
| Measurement Target |
Shaft Radial Vibration, Axial Position, Eccentricity |
| Operating Temperature |
-35°C to +121°C |
| Power Consumption |
Low-draw signal conditioning, compatible with 3300 XL monitor power rails |
| Output Signal |
-24 VDC bias, linear analog voltage proportional to gap |
| Compatible Systems |
Bently Nevada 3300 XL Monitor, 3500 Series Rack, System 1 Software |
| Application Environment |
Turbines, Compressors, Pumps, Motors, Gearboxes |
| Maintenance Value |
Early fault detection reduces motor overload, prevents energy-wasting mechanical degradation |
| Warranty |
12-Month Warranty | Tested Before Shipment |
System Compatibility and Application
The 330850-90-05 Proximitor Sensor does not operate in isolation — its value is realized within a tightly integrated automation architecture designed to close the loop between mechanical condition and energy-efficient control. In a typical deployment, the sensor is paired with the Bently Nevada 3300 XL 8mm Proximitor System, which conditions the raw eddy-current signal into a calibrated analog output that feeds directly into the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor I/O Module housed in the 3500 Series protection rack.
From the rack, vibration and position data is transmitted via Modbus TCP or OPC-UA to the plant’s SCADA platform — such as GE iFIX or Wonderware System Platform — where operators monitor shaft centerline plots, trend vibration amplitude, and configure alarm thresholds in real time. When the 330850-90-05 detects an abnormal gap change indicating rotor rub or bearing wear, the SCADA system can trigger a speed reduction command to the ABB ACS880 Variable Frequency Drive controlling the motor, immediately reducing energy draw and preventing thermal overload.
On the control side, the vibration data integrates with the Allen-Bradley ControlLogix L7x PLC via the 1756-EN2T EtherNet/IP communication module, enabling the PLC to adjust motor torque references and pump flow rates based on real-time mechanical health. This closed-loop approach eliminates the common practice of running equipment at fixed speed regardless of load — a major source of industrial unplanned downtime. The Bently Nevada System 1 Condition Monitoring Software aggregates data from multiple 330850-90-05 sensors across the plant, providing fleet-wide efficiency dashboards and predictive maintenance scheduling that further reduces reactive operating load.
For remote I/O integration in distributed plant layouts, the sensor data can be routed through Moxa NPort 5150A Serial Device Servers or Advantech ADAM-6717 Edge Intelligence Gateways, enabling edge-level data preprocessing before transmission to the central historian. This architecture reduces network bandwidth consumption and ensures that only actionable data reaches the upper-level systems, keeping communication overhead — and its associated power draw — to a minimum.
Maintenance and Replacement Notes
In petrochemical plants, the 330850-90-05 is typically installed on centrifugal compressor shafts where even a 0.5 mil increase in vibration amplitude can indicate impeller fouling that forces the compressor to draw 8–12% more power to maintain process pressure. By detecting this condition early, maintenance teams can schedule cleaning during planned shutdowns rather than running the machine in a degraded, energy-inefficient state for weeks.
In power generation facilities, the sensor monitors turbine shaft eccentricity during startup sequences. Abnormal eccentricity readings trigger automatic slow-roll extensions, preventing thermally induced bow that would otherwise require full shutdown and restart — a process that consumes significant fuel and electrical energy. The 330850-90-05’s fast response time and stable output under high-temperature conditions make it particularly suited to steam turbine applications where thermal gradients are severe.
In manufacturing plants with large motor-driven conveyor and pump systems, the sensor’s continuous monitoring capability enables a shift from time-based to condition-based maintenance. Instead of replacing bearings on a fixed schedule — often too early, wasting serviceable components, or too late, causing energy-draining failures — maintenance is triggered by actual vibration trend data. This approach has been shown to reduce maintenance-related energy losses by 15–25% in high-utilization facilities.
The 330850-90-05 is supplied fully tested against Bently Nevada factory specifications, with calibration verification included. Each unit ships with a 12-month warranty covering both parts and labor, ensuring that your machinery protection investment delivers reliable, energy-optimized performance from day one. Global DHL and FedEx express shipping options are available, with in-stock units typically dispatched within 24–48 hours of order confirmation.
Product Sourcing FAQ
Q1: How does the 330850-90-05 contribute to measurable operational stability on the production line?
By providing continuous, high-resolution shaft displacement data, the sensor enables control systems to detect mechanical inefficiencies — such as rotor imbalance, misalignment, or bearing degradation — before they cause significant unplanned downtime. Early detection allows corrective action while the machine is still operating efficiently, avoiding the 10–20% power consumption increase typical of mechanically degraded rotating equipment.
Q2: Is the 330850-90-05 compatible with existing 3300 and 3500 Series monitoring racks?
Yes. The 330850-90-05 is fully compatible with the Bently Nevada 3300 XL Proximitor System and integrates seamlessly with the 3500 Series protection rack via standard Proximitor I/O modules. It also supports connection to System 1 software for centralized condition monitoring and energy performance trending.
Q3: What is the recommended replacement or upgrade path for aging 3300 Series sensors?
For direct replacement, the 330850-90-05 is a drop-in substitute for earlier 3300 Series Proximitor configurations using the same 8mm probe and extension cable system. For facilities looking to upgrade to enhanced diagnostics, pairing the sensor with the Bently Nevada 3500/42M I/O module and System 1 software provides advanced orbit analysis and energy-correlated health trending not available with legacy monitor cards.
Q4: What testing and warranty coverage is included with each unit?
Every 330850-90-05 unit undergoes functional testing prior to shipment, including gap voltage linearity verification and signal output validation. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and performance deviations from published specifications. Expedited replacement support is available for critical applications where extended downtime is not acceptable.
