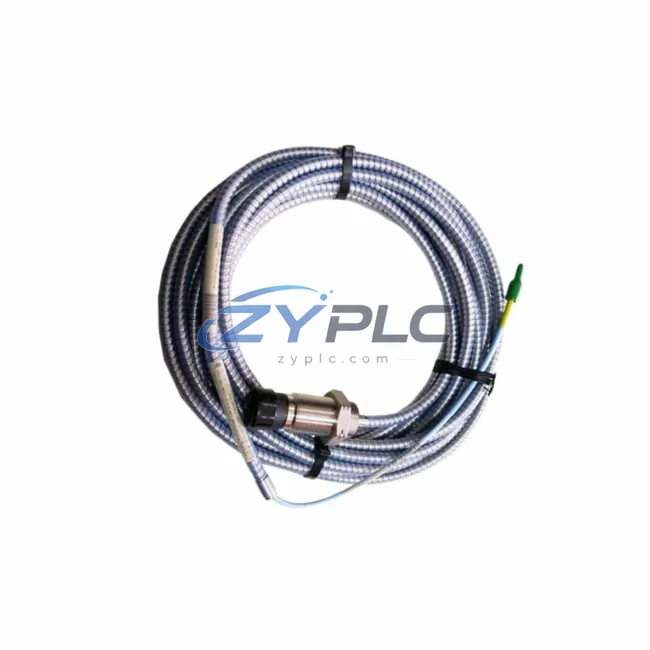

The Bently Nevada 330851-02-000-060-10-00-CN is a high-precision proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for deployment in rotating machinery environments — including turbines, compressors, pumps, and motors — this probe forms the critical first node in an industrial data chain that connects raw mechanical signals to plant-wide SCADA and condition monitoring platforms. With its eddy-current sensing principle and analog output signal, the 330851-02-000-060-10-00-CN delivers real-time shaft displacement data that feeds directly into the 3300 XL monitoring rack, enabling predictive maintenance, alarm management, and remote diagnostics across the entire facility network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory, the 330851-02-000-060-10-00-CN proximity probe operates as the signal origin point in a layered industrial data architecture. Mounted radially against a rotating shaft, the probe transmits a continuous analog voltage signal through its coaxial cable to the companion Bently Nevada 3300 XL Proximitor Sensor (driver module), which conditions and amplifies the raw eddy-current signal into a calibrated output readable by the 3300 XL Monitor Module installed in the rack system.

Within the 3300 XL rack, the monitor module digitizes the vibration waveform and shaft position data, making it available to the Bently Nevada TDXnet communication gateway. The TDXnet module bridges the proprietary 3300 XL rack bus to plant Ethernet infrastructure using Modbus TCP/IP and OPC-DA protocols, allowing the vibration data to flow upstream to the GE Digital System 1 condition monitoring platform or any third-party SCADA system configured with an OPC server. Operators at the control room HMI — whether running Wonderware InTouch, Ignition SCADA, or a DCS operator station — receive live shaft displacement trends, alarm states, and historical waveform data without any manual data extraction.

For facilities running distributed control architectures, the 3300 XL rack can be networked alongside Bently Nevada 3500 Series rack systems, allowing a unified vibration monitoring backbone across multiple machine trains. The analog output from the 330851-02-000-060-10-00-CN can also be wired in parallel to a standalone 4–20 mA input card on a Rockwell Automation ControlLogix PLC or a Siemens S7-300 remote I/O module, enabling the DCS or PLC to incorporate vibration thresholds directly into its safety interlock logic. This dual-path data flow — one branch to the dedicated condition monitoring system, one to the process control PLC — is a hallmark of best-practice smart factory design for rotating equipment protection.

At the edge layer, an industrial edge gateway such as the Moxa UC-8112 or Advantech WISE-5000 can subscribe to the OPC-UA data stream from System 1, performing local analytics and anomaly detection before forwarding compressed trend data to cloud-based asset management platforms. This architecture ensures that even in low-bandwidth or intermittent WAN environments, critical vibration alarms from the 330851-02-000-060-10-00-CN are never lost in transit.

Solving Data Isolation in Industrial Sites

Many industrial plants still operate vibration monitoring as a siloed function — data collected by the 3300 XL rack stays within the condition monitoring system and never reaches the process historian, the maintenance CMMS, or the plant SCADA dashboard. The 330851-02-000-060-10-00-CN, when deployed as part of a fully networked 3300 XL system, directly addresses this data isolation problem.

By leveraging the Modbus TCP/IP and OPC-UA connectivity built into the 3300 XL platform, vibration data from the 330851-02-000-060-10-00-CN can be integrated into OSIsoft PI System historians, Emerson DeltaV DCS, or Honeywell Experion PKS, creating a single unified data layer across process, safety, and condition monitoring domains. Maintenance teams gain access to real-time shaft displacement trends directly within their SAP PM or IBM Maximo work order workflows, enabling condition-based maintenance scheduling without manual data transfer.

For remote sites or unmanned substations, the networked 3300 XL system enables full remote diagnostics — alarm acknowledgment, waveform review, and probe health checks — through a secure VPN connection to the System 1 server, eliminating the need for on-site personnel during routine monitoring cycles. Production managers gain full production line transparency: vibration health scores for every monitored machine train are visible on a single SCADA overview screen, and threshold breaches automatically trigger work orders in the CMMS, closing the loop between sensor data and maintenance action.

System expansion is equally straightforward. Additional 330851-02-000-060-10-00-CN probes and companion driver modules can be added to existing 3300 XL rack slots without reconfiguring the network gateway, making it simple to extend monitoring coverage to new machine trains as production capacity grows.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3300 XL system support when using the 330851-02-000-060-10-00-CN probe?
The 3300 XL monitoring rack supports Modbus TCP/IP and OPC-DA/OPC-UA communication via the TDXnet gateway module, enabling integration with SCADA systems, DCS platforms, and condition monitoring software such as GE Digital System 1. The proximity probe itself outputs an analog signal; protocol conversion occurs at the rack level.

Q2: How does the 330851-02-000-060-10-00-CN ensure network stability and data continuity in high-vibration environments?
The probe is constructed with a ruggedized coaxial cable and CN-type connector rated for industrial environments. The 3300 XL system includes built-in probe fault detection — open circuit, short circuit, and out-of-range gap voltage alarms — ensuring that any sensor or cable fault is immediately flagged at the monitor module and propagated as an alarm to the connected SCADA or DCS, preventing silent data loss.

Q3: Can the 330851-02-000-060-10-00-CN be integrated with third-party PLC or DCS systems beyond the Bently Nevada ecosystem?
Yes. The analog output from the 3300 XL monitor module (4–20 mA or voltage) can be wired directly to any PLC analog input card, including Rockwell Automation ControlLogix, Siemens S7 series, and Mitsubishi MELSEC platforms. For digital integration, the Modbus TCP/IP gateway allows any Modbus-capable SCADA or DCS to poll vibration data at configurable scan rates.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330851-02-000-060-10-00-CN unit supplied by ZYPLC undergoes pre-shipment functional verification, including gap voltage output check and cable continuity test, before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation, system configuration, and network integration queries.
